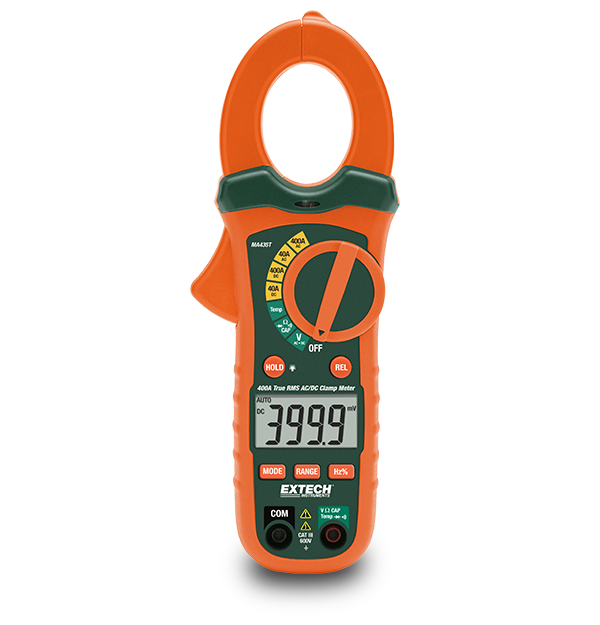

Extech MA435T
400A True RMS AC/DC Clamp Meter + NCV
The Extech MA435T is a compact, 400 A AC Clamp Meter that enables users to take measurements in tight spaces. The 30 mm (1.2 in) jaw opening can accommodate conductors up to 350 MCM. Featuring a large, four digit readout, the illuminated display is easy to see in poorly lit work areas, and the thumb dial selector is ergonomically placed for convenient, one-hand operation. It also has True RMS for better accuracy when measuring distorted waveforms. The MA435T’s multimeter functions include AC/DC voltage and current, resistance, capacitance, frequency, diode test, duty cycle, continuity, and thermocouple temperature. Also built into the MA435T is the non contact voltage (NCV) detector. Eliminating the need for a separate tester, the NCV detector uses a red LED to alert users to the presence of voltage on live wires. Additional features include data hold, auto power off, and low battery indication. Comes with test leads, 9 V battery, soft carrying case, and user manual.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 400A |
| AC 전류 기본 정확도 | ±(2.5% of reading + 8 digits) |
| AC 전류 최대 해상도 | 0.01A |
| AC 전압 | 600V |
| AC 전압 기본 정확도 | ±(1.5% of reading + 5 digits) |
| AC 전압 최대 해상도 | 0.1mV |
| DC 전류 | 400A |
| DC 전류 기본 정확도 | ±(2.5% of reading + 5 digits) |
| DC 전류 최대 해상도 | 0.01A |
| DC 전압 | 600V |
| DC 전압 기본 정확도 | ±(1.5% of reading + 2 digits) |
| DC 전압 최대 해상도 | 0.1mV |
| 다이오드 검사 | Yes |
| 비접촉 전압(NCV) 감지기 | Yes |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1400 °F/-20 to 760 °C |
| 온도(N형) | ±(3% of reading + 9°F/5°C) |
| 온도(N형) 기본 정확도 | 0.1°F/°C |
| 저항 | 40MΩ |
| 저항 최대 해상도 | 0.1Ω |
| 정전용량 최대 해상도 | 0.01nF |
| 주파수 | 10Hz to 10kHz |
| 주파수 기본 정확도 | ±(1.5% of reading + 2 digits) |
| 커패시턴스 | 100µF |
| 턱 크기 | 1.2" (30mm), conductors up to 350MCM |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 디스플레이 | 4000-count segment LCD |
| 무게 | 6.5oz (183g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE, ETL |
| 전원 | 1 × 9V battery |
| 크기 | 7.8 × 2.8 × 1.6" (197 × 70 × 40mm) |
