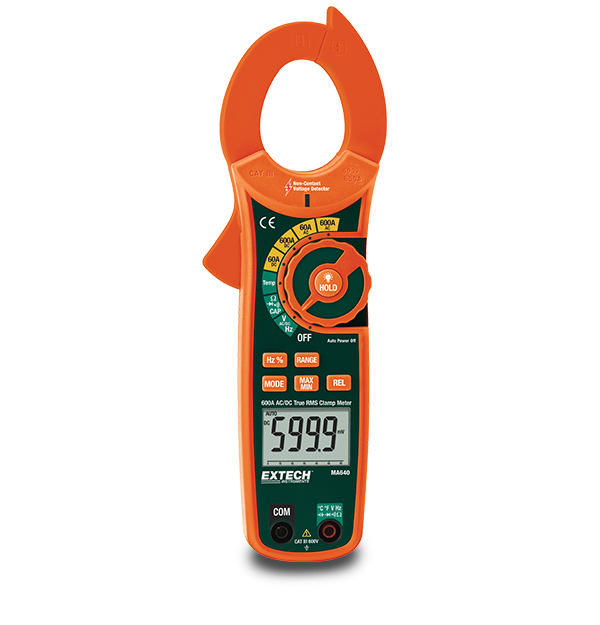

Extech MA640
600A True RMS AC/DC Clamp Meter + NCV
The Extech MA640 600 A True RMS Clamp Meter offers plant maintenance techs, electrical troubleshooters, and DIYers a test instrument that delivers a high level of performance and value. In addition to a host of advanced multimeter and current measurement capabilities, it also features a built in, non contact voltage (NCV) detector. Whether you are performing amp readings in a heavy duty industrial setting or doing commercial electrical work, the 600 A rating, 40 mm (1.5 in) jaw opening can accommodate conductors up to 750 MCM. The illuminated, dual display is useful in poorly lit job sites, and the 4 digit readout is complemented by a bargraph display to simulate an analog one. The heart of the MA640 is an advanced digital multimeter. Its measurement functions cover all types of troubleshooting over and above noninvasive current probe measurements. This includes voltage, resistance, capacitance, frequency, duty cycle, diode, and continuity tests. Even measure temperature with the supplied Type K bead wire probe. Comes with test leads, 9 V battery, carrying case, user manual, and a one year limited warranty on parts and labor.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 60.00A, 600.0A |
| AC 전류 기본 정확도 | ±(2.8% of reading + 8 digits) |
| AC 전류 최대 해상도 | 0.01A |
| AC 전압 | 6.000V, 60.00V, 600.0V |
| AC 전압 기본 정확도 | ±(1.8% of reading + 8 digits) |
| AC 전압 최대 해상도 | 0.001V |
| DC 전류 | 60.00A, 600.0A |
| DC 전류 기본 정확도 | ±(2.8% of reading + 8 digits) |
| DC 전류 최대 해상도 | 0.01A |
| DC 전압 | 600.0mV, 6.000V, 60.00V, 600.0V |
| DC 전압 기본 정확도 | ±(1.5% of reading + 2 digits) |
| DC 전압 최대 해상도 | 0.1mV |
| 다이오드 검사 | Yes |
| 듀티 사이클 기본 정확도 | ±(1.2% of reading + 2 digits) |
| 듀티 사이클 최대 해상도 | 0.10% |
| 비접촉 전압(NCV) 감지기 | Yes |
| 사용률 | 0.5 to 99.0% |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1400 °F (-20 to 760 °C) |
| 온도(N형) | ±(3% of reading + 9°F/5°C) |
| 온도(N형) 기본 정확도 | 0.1°F/°C |
| 저항 | 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ |
| 저항 최대 해상도 | 0.1Ω |
| 정전용량 최대 해상도 | 0.01nF |
| 주파수 | 10Hz to 10kHz |
| 주파수 기본 정확도 | ±(3.0% of reading + 5 digits) |
| 주파수 최대 해상도 | 0.01nF |
| 커패시턴스 | 40.00nF, 400.0nF, 4.000µF, 40.00µF, 400.0µF, 4000µF |
| 턱 크기 | 1.5" (40mm), conductors up to 500MCM |
| 추가 정보 | |
|---|---|
| 디스플레이 | 6000-count segment LCD |
| 무게 | 9.6oz (271g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE, ETL |
| 전원 | 1 × 9V battery |
| 크기 | 9.1 × 3 × 1.5" (232 × 77 × 39mm) |
