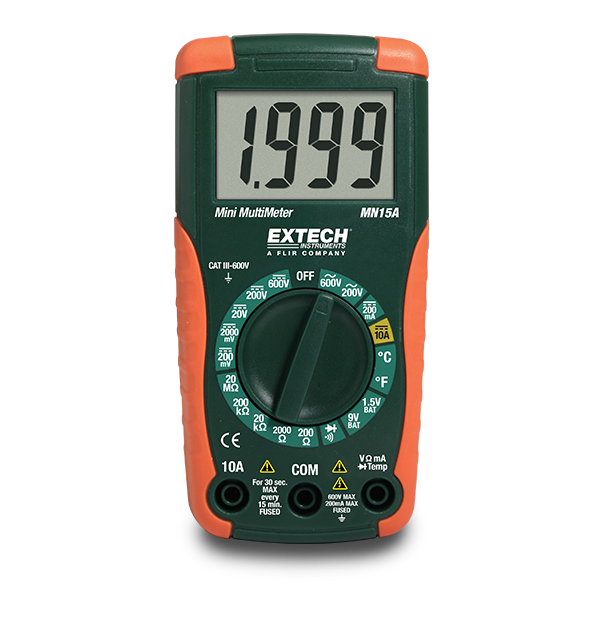

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
사양
| 일반 사양 | |
|---|---|
| AC 전압 | 600V |
| AC 전압 기본 정확도 | ±1.2% |
| AC 전압 최대 해상도 | 0.1V |
| DC 전류 | 10A |
| DC 전류 기본 정확도 | ±1.2% |
| DC 전류 최대 해상도 | 0.1mA |
| DC 전압 | 600V |
| DC 전압 기본 정확도 | ±0.5% |
| DC 전압 최대 해상도 | 0.1mV |
| 배터리 테스트 | 9V & 1.5V Batteries |
| 온도(K형) 최대 해상도 | -4 to 1400°F (-20 to 750°C) |
| 온도(N형) | ±(3% of reading + 9°F/5°C) |
| 온도(N형) 기본 정확도 | 0.1 ° |
| 저항 | 20MΩ |
| 저항 최대 해상도 | 0.1Ω |
| 추가 정보 | |
|---|---|
| 무게 | 5.4oz (153g) |
| 보증 | 2 years |
| 안전 범주 | CATIV - 600V |
| 인증 | CE, ETL |
| 전원 | 1 × 9V battery |
| 크기 | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
리소스 및 지원
User Manual
Extech MN15A User Manual
Certification
Extech MN15A Declaration of Conformity
Datasheet
Extech MN15A-MN16A Datasheet
