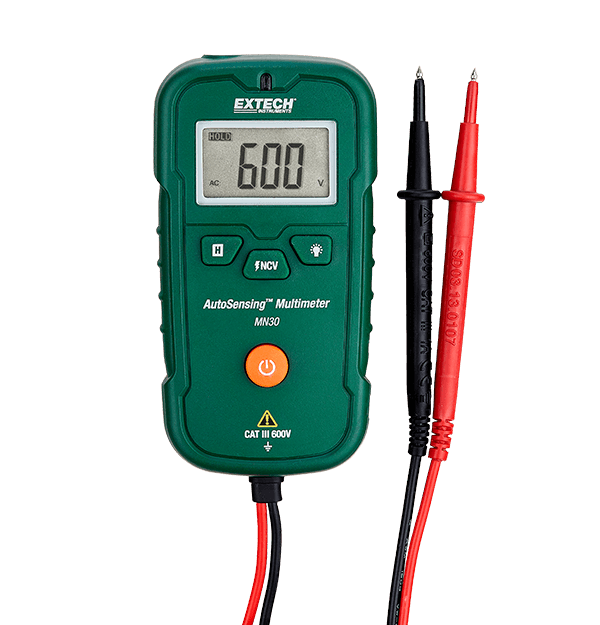

Extech MN30
True RMS AutoSensing™ Multimeter + NCV
The Extech MN30 is a convenient pocket multimeter with an AutoSensing™ feature. The AutoSensing™ feature enables the meter to recognize inputs and automatically switch to the correct mode of operation (i.e. voltage to resistance measurements). The true RMS AC voltage measurement allows for accurate readings regardless of waveforms. The built in, non-contact voltage (NCV) detector allows for quick detection of live voltage. Convenient LED flashlight illuminates dimly lit area.
사양
| 일반 사양 | |
|---|---|
| AC 전압 | 600V |
| AC 전압 기본 정확도 | ±(1.5% of reading + 3 digits) |
| AC 전압 최대 해상도 | 0.01V |
| DC 전압 | 600V |
| DC 전압 기본 정확도 | ±(1.5% of reading + 3 digits) |
| DC 전압 최대 해상도 | 0.01V |
| 비접촉 전압(NCV) 감지기 | 50 to 600VAC |
| 연속성 | <30Ω (beeper) |
| 저항 | 1Ω to 10MΩ |
| 저항 최대 해상도 | 1Ω |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 50V to 600V |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE, ETL |
| 전원 | 2 × AAA (1.5V) batteries |
| 크기 | 4.8 × 2.6 × 1.4" (123 × 65 × 35mm) |
리소스 및 지원
Datasheet
Extech MN30 Datasheet
User Manual
Extech MN30 User Manual
Certification
Extech MN30 Declaration of Conformity
