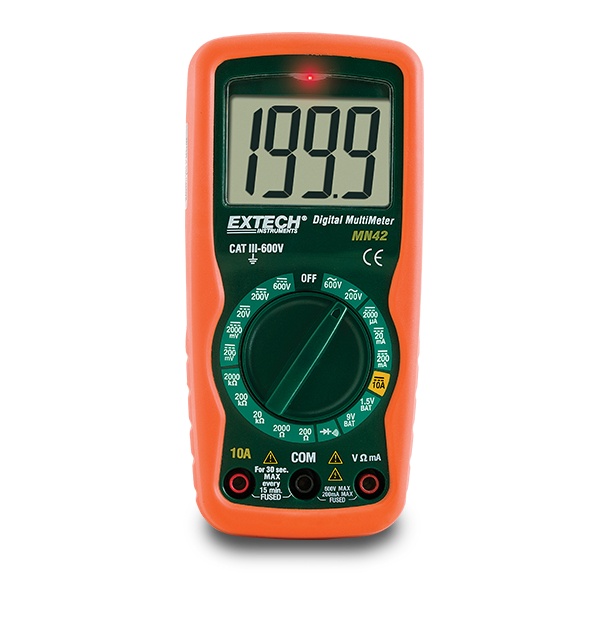

Extech MN42
8 Function Compact MultiMeter + NCV
The compact, manual-ranging Extech MN42 Compact Multimeter is equipped with capabilities a tradesman or technician can use every day, while also perfect for any hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. Also included is a built in, non contact voltage detector (from 100 VAC to 600 VAC). Freely measure AC/DC voltage, DC current, and resistance, as well as conduct continuity, diode, and battery test. Complete with test leads, 9 V battery, and carrying case.
사양
| 일반 사양 | |
|---|---|
| AC 전압 | 600V |
| AC 전압 최대 해상도 | 0.1V |
| DC 전류 | 10A |
| DC 전류 최대 해상도 | 1µA |
| DC 전압 | 600V |
| DC 전압 최대 해상도 | 0.1mV |
| 다이오드 검사 | Yes |
| 배터리 테스트 | 1.5V / 9V |
| 비접촉 전압(NCV) 감지기 | 100 to 600VAC |
| 연속성 | Yes |
| 저항 | 2MΩ |
| 저항 최대 해상도 | 0.1Ω |
| 추가 정보 | |
|---|---|
| 디스플레이 | 2000-count segment LCD |
| 무게 | 9oz (255g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 5.9 × 2.75 × 1.8" (150 × 70 × 48mm) |
리소스 및 지원
User Manual
Extech MN42 User Manual
Datasheet
Extech MN42-MN47 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
