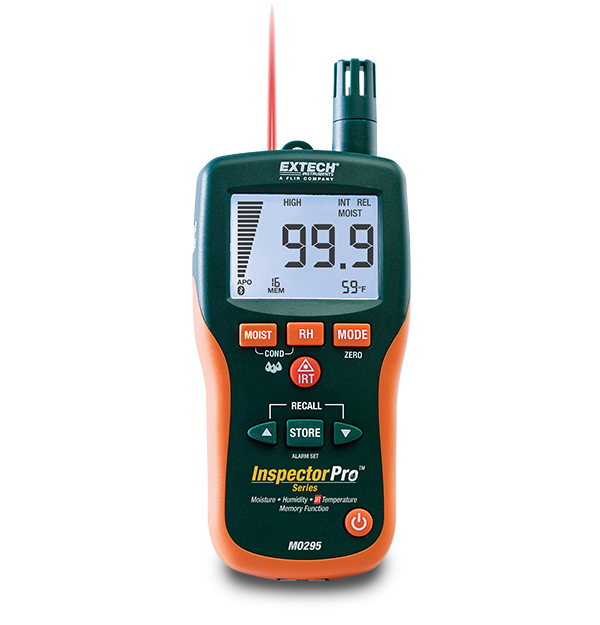

Extech MO295
Pinless Moisture Psychrometer + IR Thermometer
The Extech MO295 is an 8 in 1 meter that combines a pin/pinless Moisture Psychrometer with a built-in Infrared (IR) Thermometer. This pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage, and the remote pin-type probe can be used for contact moisture readings in hard to reach areas. The built in humidity and temperature probe measures relative humidity, air temperature plus grains per pound (GPP), dew point (DP), and vapor pressure. MO295 can store and recall 20 readings in memory. It also features a fast analog bargraph for viewing moisture trends, programmable high/low moisture and humidity alarms, automatic calculation of differential temperature to determine condensation point, min/max function, data hold, and an auto power off function. Comes with a pin moisture probe (MO290-P), one 9 V battery, carrying case, and user manual. Optional specialty moisture probes are available.
사양
| 일반 사양 | |
|---|---|
| WME 수분 함량 기본 정확도(핀) | ±5% |
| WME 수분 함량 최대 해상도(핀) | 0.1 |
| WME 수분 함량(핀) | 0 to 99.9% |
| 대상비까지의 거리 | 8:1 |
| 메모리 | Manually store/recall 20 data readings |
| 방사율 | 0.95 fixed |
| 상대 수분 함량 최대 해상도(무핀) | 0.1 |
| 상대 수분 함량(무핀) | 6 to 99.9 |
| 상대 습도 | 0 to 100% |
| 상대 습도 기본 정확도 | ±3% |
| 센서 유형 | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| 수증기 | 0 to 999gpp (0 to 160g/kg) |
| 온도(IR) 최대 해상도 | ±3.5% or ±9°F(4.5°C) whichever greater |
| 온도(RTD) | 0.1°F/°C |
| 온도(공기) | -20 to 170 °F (-29 to 77 °C) |
| 온도(공기) 기본 정확도 | ±3.6°F (2.0°C) |
| 온도(공기) 최대 해상도 | 0.1°F/°C |
| 온도(접촉) 기본 정확도 | -4 to 392 °F (-20 to 200 °C) |
| 이슬점 | -22 to 199 °F (-30 to 100 °C) |
| 증기압 | 0 to 20.0kPA |
| 측정 깊이 | up to 0.75" (19mm) |
| 추가 정보 | |
|---|---|
| 무게 | 7.4oz (210g) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
