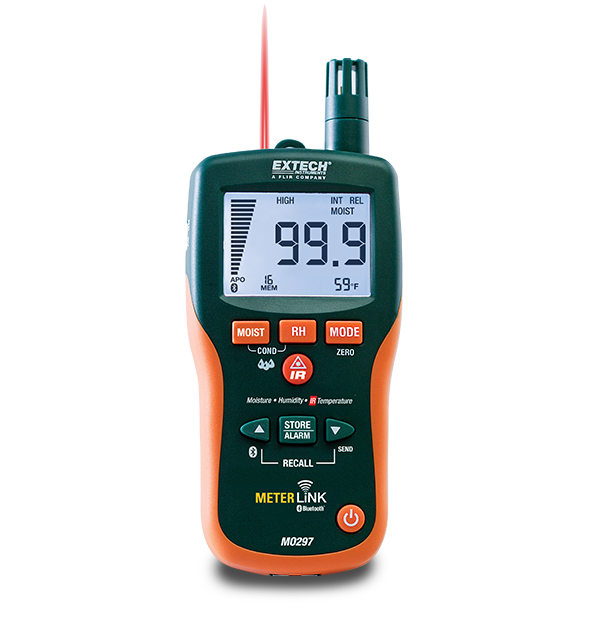

Extech MO297
Pinless Moisture Psychrometer with IR Thermometer and Bluetooth METERLiNK™
The Extech MO297 is an 8 in 1 Pinless Moisture Psychrometer with a built in infrared (IR) thermometer and Bluetooth MeterLink™ transmitter. It can wirelessly transmits moisture and humidity data to select FLIR thermal imaging IR cameras to incorporate meter readings with thermal images. The pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage. A remote pin-type probe can be used for contact moisture readings in hard to reach or hazardous areas. Complete with the pin probe cable, 9 V battery, and a case.
사양
| 일반 사양 | |
|---|---|
| Bluetooth METERLiNK™ | Yes |
| WME 수분 함량 기본 정확도(핀) | ±5% |
| WME 수분 함량 최대 해상도(핀) | 0.1 |
| WME 수분 함량(핀) | 0 to 99.9% |
| 대상비까지의 거리 | 8:1 |
| 메모리 | Manually store/recall 20 data readings |
| 무선 연결 | Bluetooth |
| 방사율 | 0.95 fixed |
| 상대 수분 함량 최대 해상도(무핀) | 0.1 |
| 상대 수분 함량(무핀) | 0 to 99.9 |
| 상대 습도 | 0 to 100% |
| 상대 습도 기본 정확도 | ±3% |
| 센서 유형 | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| 수증기 | 0 to 999gpp (0 to 160g/kg) |
| 온도(IR) 최대 해상도 | ±3.5% or ±9°F(4.5°C) whichever greater |
| 온도(RTD) | 0.1°F/°C |
| 온도(공기) | -20 to 170 °F (-29 to 77 °C) |
| 온도(공기) 기본 정확도 | ±3.6°F (2.0°C) |
| 온도(공기) 최대 해상도 | 0.1°F/°C |
| 온도(접촉) 기본 정확도 | -4 to 392 °F (-20 to 200 °C) |
| 이슬점 | -22 to 199 °F (-30 to 100 °C) |
| 증기압 | 0 to 20.0kPA |
| 측정 깊이 | up to 0.75" (19mm) |
| 추가 정보 | |
|---|---|
| 무게 | 7.4oz (210g) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
리소스 및 지원
User Manual
Extech MO297 User Manual
Datasheet
Extech MO297 Datasheet
Certification
Extech MO297 Declaration of Conformity
