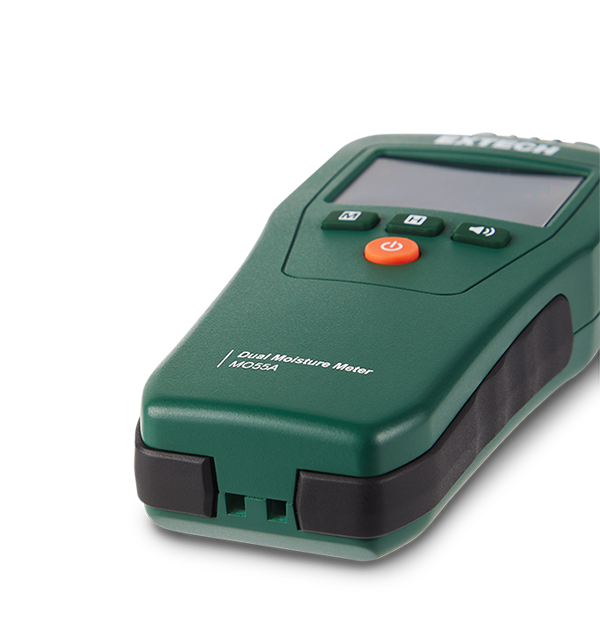

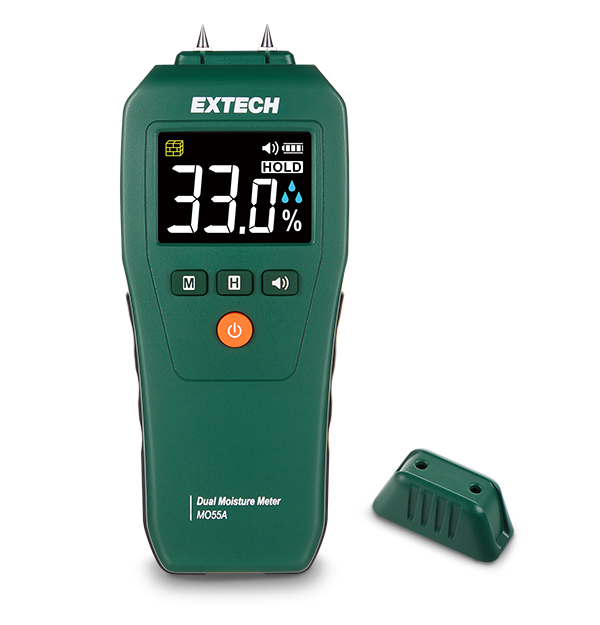

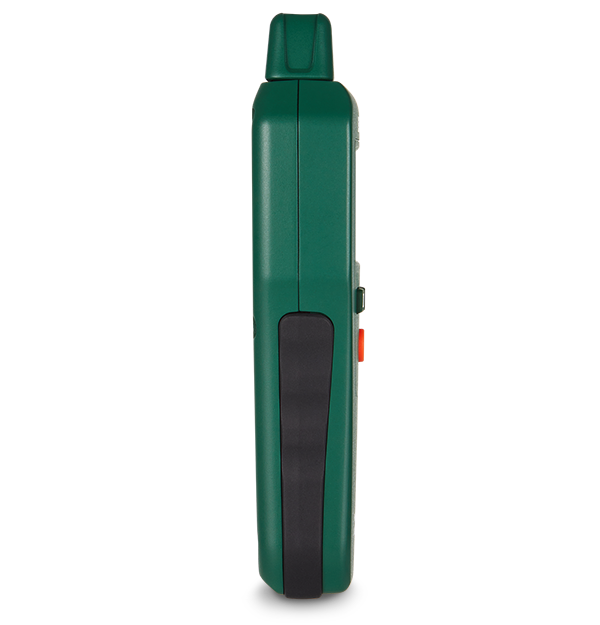

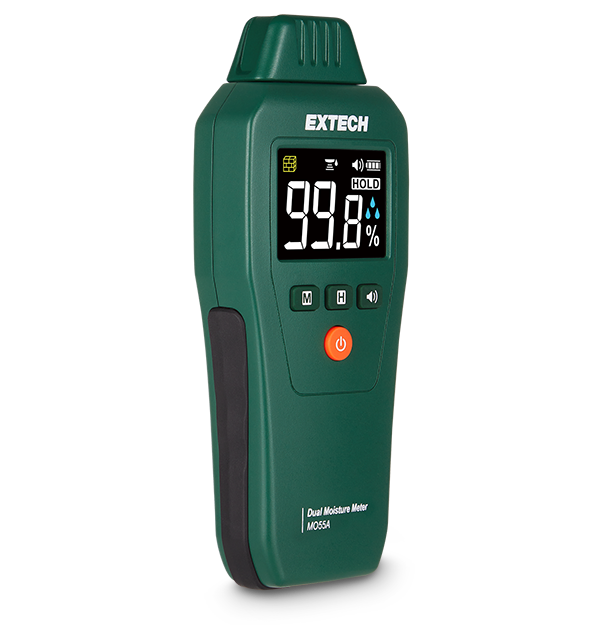

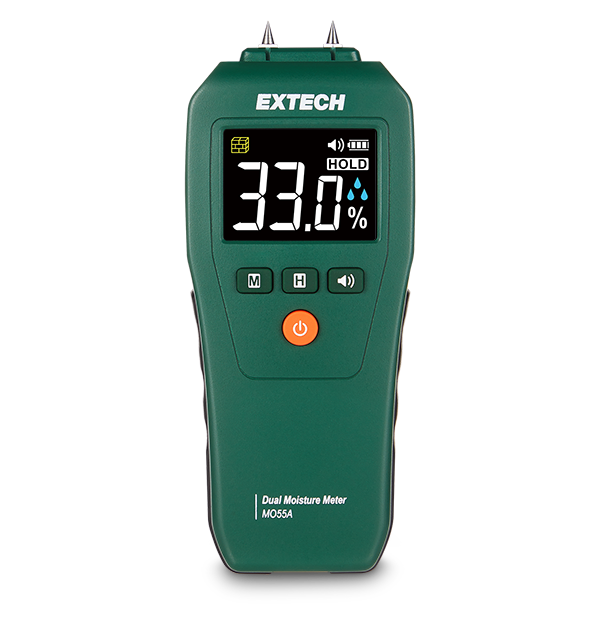

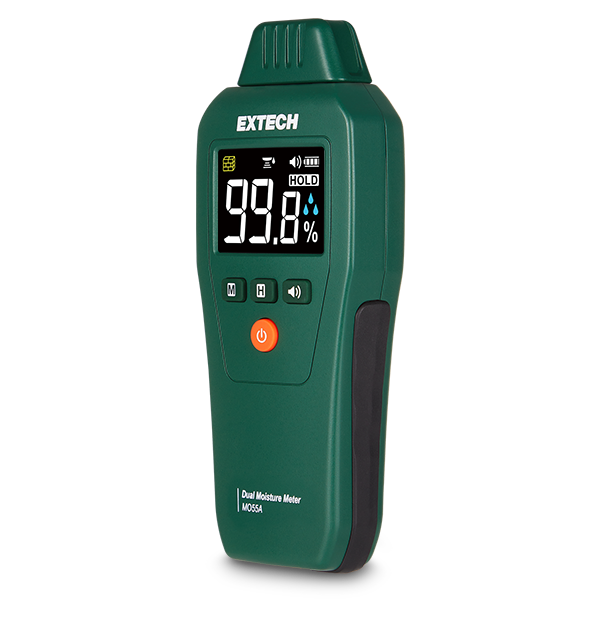

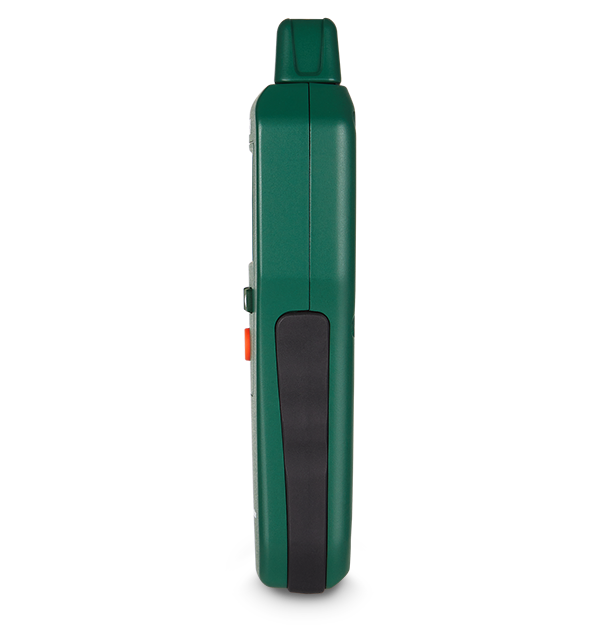

Extech MO55A
Combination Pin/Pinless Moisture Meter

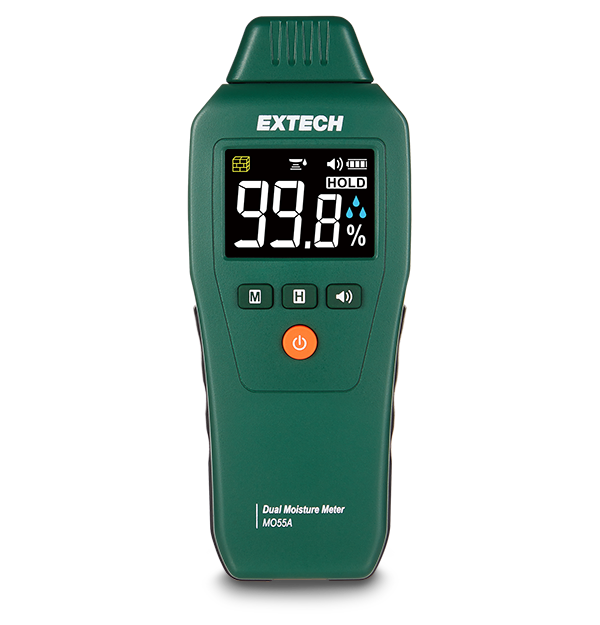

Take quick moisture measurements from a variety of building materials using either the pin or pinless (non-invasive) method with the Extech MO55A. This easy-to-use moisture meter features a high-contrast color LCD with backlight for clear visibility in any environment. It uses intuitive display icons to indicate moisture levels and provides an audible alert that speeds up as moisture increases. Ideal for building restoration projects and applications where detecting moisture on floors, tiles, and under carpets is critical, the MO55A is also essential for analyzing the after-effects of water leakage behind walls and in ceilings.
사양
| 일반 사양 | |
|---|---|
| WME 수분 함량 기본 정확도(핀) | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| WME 수분 함량 최대 해상도(핀) | 0.1% |
| WME 수분 함량(핀) | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |
| 보관 온도 범위 | 0°C to 50°C (32°F to 122°F); < 85% RH |
| 상대 수분 함량(무핀) | Wood: 0.0% to 99.9% Other building materials: 0.0% to 99.9% up to 25 mm (1 in) deep various with material under test |

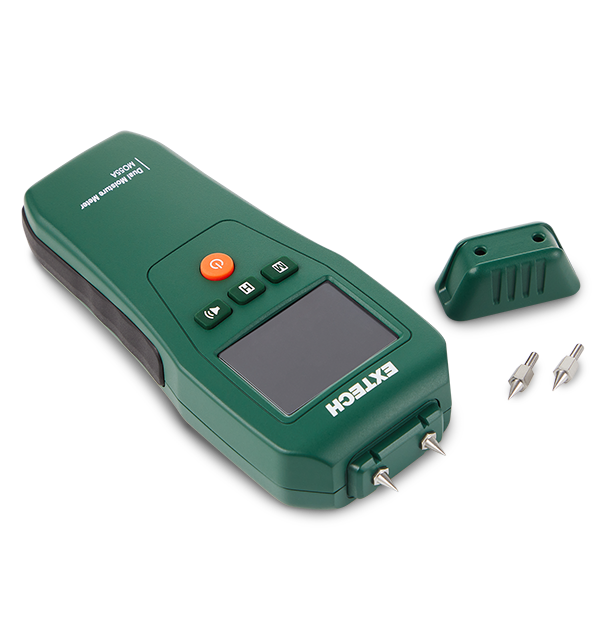

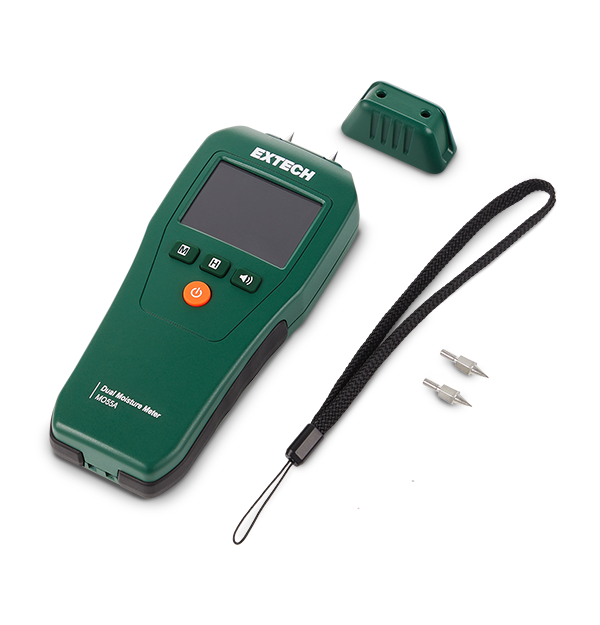

| 센서 유형 | Replaceable threaded contact pins, 8 mm (0.3 in); non-penetrating electromagnetic sensor pad |
| 측정 깊이 | Pinless < 25 mm (1 in) |

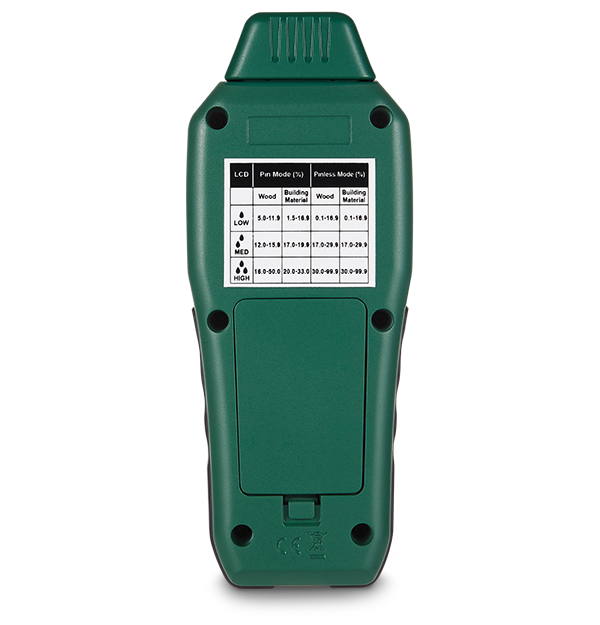

| 측정 범위 | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| 측정 원칙 | Electrical resistance (pins); Capacitance (pinless) |
| 추가 정보 | |
|---|---|
| 디스플레이 | Backlit Color LCD |
| 무게 | 151 g (0.33 lb) excluding batteries |
| 배터리 유형 | 3 × 1.5 V, AAA batteries |
| 보증 | 2 years |
| 인증 | CE, UKCA |
| 작동 상태 | 5°C to 45°C (41°F to 113°F); < 80% RH |
| 전원 | Auto Power Off after approx. 3 minutes |
| 크기 | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
