QL320

FLIR G-시리즈 광학 가스 이미징탐지 카메라(Gx620/Gx320/G620)용 정량형 광학 가스 이미징 시스템

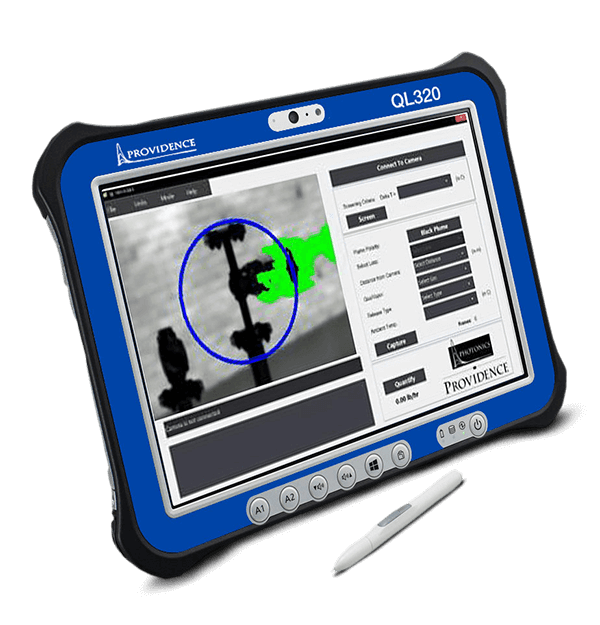

The QL320 by Providence Photonics is a quantitative optical gas imaging (QOGI) system that allows surveyors to measure the leak rates for methane and other hydrocarbons. This eliminates the need for secondary sampling with a toxic vapor analyzer or similar tool. Plus, the QL320 does not require close contact with the gas in order to measure emission rates, making it a safer solution for quantifying gas leaks.

With the QL320, you can determine mass leak rates (g/h or lb/h) or volumetric leak rates (cc/min or L/min)for most hydrocarbon gases. Measure the size of fugitive emissions from safe distances, as far as 100 feet.

The QL320 has the built-in tools needed to validate leak surveys, plus a Δ temperature screening tool to determine suitablility of background conditions. In-field reporting includes archiving of measurements, colorized video and raw data for analysis and post-processing.

This tablet-based system is rugged enough to use in gas fields, refineries, and other industrial settings. The dust- and water-tight touchscreen provides high contrast for easy reading in outdoor conditions.

사양

이미징 및 광학
Compatible cameras	FLIR G620, FLIR Gx320, FLIR Gx620
Display resolution	1920 × 1200 WUXGA
Display Size	256.5 mm
Image Modes	Single image snapshot with colorized plume and quantitative result

측정 및 분석
Measurement Modes	질량 누설률 (lb/h 또는 g/h), 부피 누설률 (cc/min 또는 L/min)
Measurement Tools	ΔT 스크리닝 기능, 온-스크린 기체 기둥 색상 하이라이트 기능, 일괄 녹화 기능, 필드 가스 보정 기능
