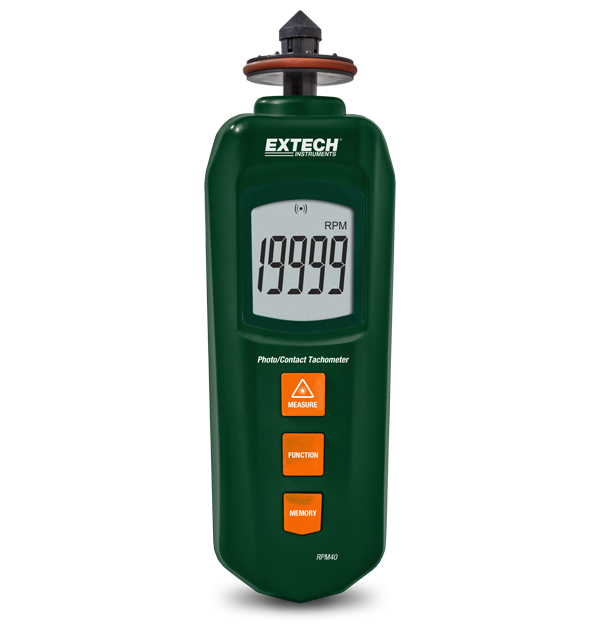

Extech RPM40
Combination Contact/Laser Photo Tachometer
The Extech RPM40 is a pocket Contact/Laser Photo Tachometer that provides wide RPM (photo/contact) and linear surface speed measurements. The characters on display reverse direction depending on which measurement mode is currently in use. The narrow beam laser photo tachometer is for accurate, non contact RPM measurements up to 1.5 m (4.9 ft) from the target for improved safety and accessibility. Complete with cone tip and wheel for RPM or linear surface speed, four 1.5 V AAA batteries, and reflective tape.
사양
| 일반 사양 | |
|---|---|
| 샘플링 시간(사진) | 1 sec (> 60 rpm) |
| 샘플링 시간(접촉) | 1sec (> 6 rpm) |
| 표면 속도(접촉) | 2.0 to 78,740 in/min, 0.2 to 6560 ft/min, 0.05 to 1999.9 m/min |
| 표면 속도(접촉) 기본 정확도 | ±(0.1% of reading +1 digit) |
| 회전 속도(스트로브) | 5 to 99,999 rpm |
| 회전 속도(스트로브) 기본 정확도 | ±(0.1% of reading +1 digit) |
| 회전 속도(스트로브) 최대 해상도 | 0.1rpm (< 1000 rpm); 1rpm (> 1000 rpm) |
| 회전 속도(접촉) | 0.5 to 19,999 rpm |
| 회전 속도(접촉) 기본 정확도 | ±(0.1% of reading +1 digit) |
| 회전 속도(접촉) 최대 해상도 | 0.1rpm (< 1000 rpm); 1rpm (> 1000 rpm) |
| 추가 정보 | |
|---|---|
| 무게 | 6.4oz (182g) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × AA (1.5V) batteries |
| 크기 | 6.2 × 2.0 × 1.3" (160 × 50 × 33 mm) |
