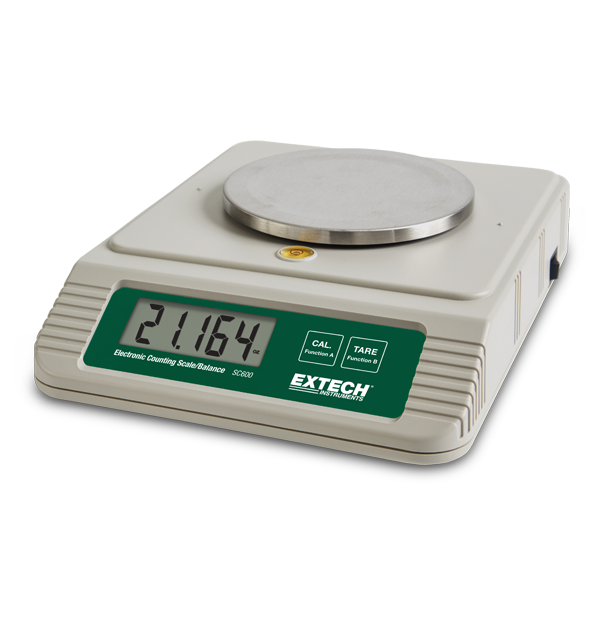

Extech SC600
Electronic Counting Scale/Balance
The Extech SC600 is an Electronic Counting Scale/Balance intended for professional electronic counting and weighing with a load cell transducer for high accuracy and performance. The wide capacity measures single small electronic components weighing up to 0.1g (0.005 oz), or in batches up to 600 g (21.164 oz). Complete with 6 AA batteries, metal platform, and Universal AC adaptor with multiplugs.
사양
| 일반 사양 | |
|---|---|
| PC 인터페이스 | RS232 port |
| 공허 제어 | 600g maximum (approx.) |
| 변환기 유형 | Load cell |
| 샘플링 비율 | Approx. 1 measurement per second |
| 중량 범위 | 0.10 to 600g |
| 중량 범위 기본 정확도 | ±(0.05% + 0.04g) |
| 중량 범위 최대 해상도 | 0.01g |
| 추가 정보 | |
|---|---|
| 디스플레이 | 5-digit segment LCD |
| 무게 | 2.2 lbs (1 kg) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 6 × AA (1.5V) batteries, AC/DC power adaptor (9V/300mA) with multi-plugs |
| 크기 | 9.8 × 7.5 × 2.8" (250 × 190 × 70mm), Platform diameter: 4.7" (120mm) |
리소스 및 지원
User Manual
Extech SC600 User Manual
Certification
Extech SC600 Declaration of Conformity
Datasheet
Extech SC600 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
