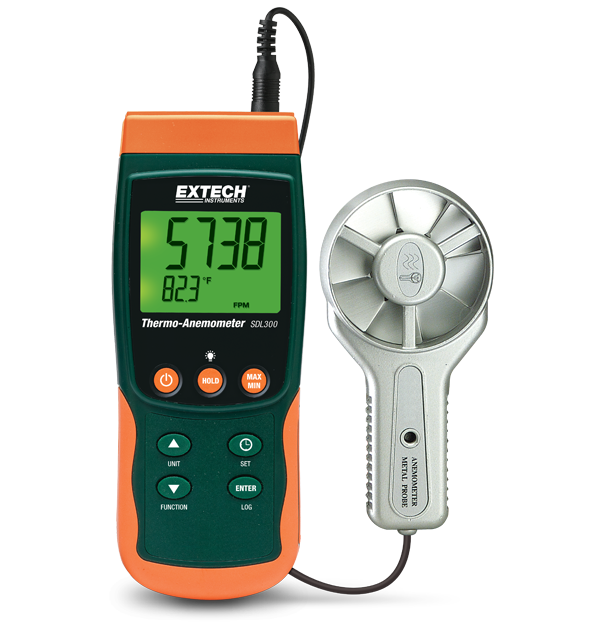

Extech SDL300

금속 베인 열풍속계/데이터 로거

SDL300은 SD 카드에 Excel 형식으로 데이터를 기록합니다. 금속 베인은 최대 70°C의 온도와 최대 6,900ft/min의 공기 속도를 견뎌냅니다. 데이터 로거는 날짜/시간 스탬프를 지정하고 판독값을 Excel 형식으로 SD 카드에 저장하여 PC로 쉽게 전송할 수 있습니다. 데이터 샘플링 속도를 1초에서 3600초까지 조정할 수 있습니다. 99개의 판독값을 수동으로 저장하고 2G SD 카드를 통해 20M 판독값을 저장합니다. 고온 측정을 위한 K/J형 열전대 입력. 대형(9999 카운트) LCD는 공기 속도와 온도를 동시에 표시합니다. 1m 케이블의 저마찰 볼 베어링 베인 휠을 통해 2% 속도 정확도를 유지합니다. MIN, MAX 기록/리콜, 데이터 홀드, 자동 전원 끄기 기능이 있습니다. AA 배터리 6개, SD 카드, 120cm 케이블이 있는 금속 베인 센서, 휴대용 하드 케이스가 포함되어 있습니다.

Resources & Support

Note: You must be logged in to download software or firmware. Login or create an account.

Software Download

Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable

You must be logged in to download file.

Datasheet

Extech SDL300 Datasheet

Certification

Extech SDL300 Declaration of Conformity

User Manual

Extech SDL300 User Manual

User Manual

Extech SDL300 User Manual GB
