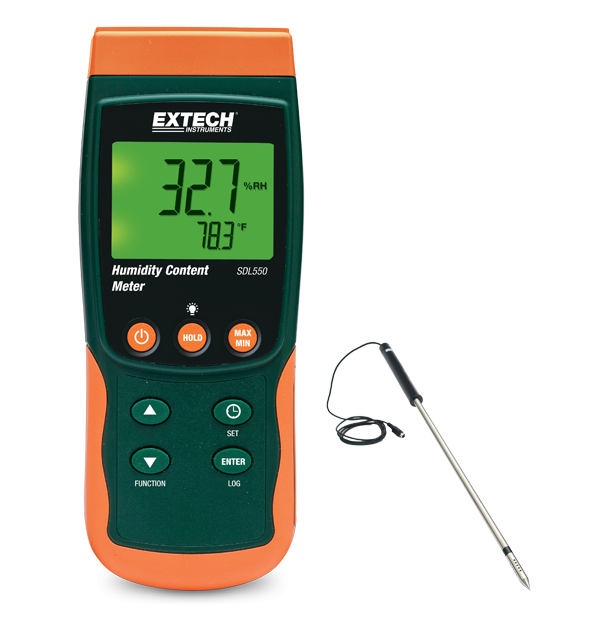

Extech SDL550
Humidity Content Meter/Datalogger
The Extech SDL550 Humidity Content Meter/Datalogger monitors moisture in many different materials like grain, corn, rice, cotton, or paper. The 600 mm (23.7 in) heavy duty stainless steel probe with a replaceable probe head and inner filter measures moisture content from 10% to 95%, temperature, and dew point. The datalogger date/time stamps and stores readings on an SD card in Excel™ format for easy transfer to a PC. It has an adjustable data sampling rate from 1 sec to 3600 sec, and it stores 99 readings manually plus 20 M readings via 2G SD card. Other features include a large backlit dual LCD display on which you can use functions such as record, recall, min/max, data hold, and auto power off. Complete with 1.5 m (4.9 ft) cable, sensor cap, SD card, 9 V battery, and soft carrying case.
사양
| 일반 사양 | |
|---|---|
| 메모리 | 20M data records using 2G SD card |
| 상대 습도 | 10 to 95% |
| 상대 습도 기본 정확도 | ±3% |
| 상대 습도 최대 해상도 | 0.1% |
| 온도(J형) 기본 정확도 | -148 to 2192 °F (-100 to 1200 °C) |
| 온도(K형) 기본 정확도 | 0.2% + 1.8 °F/1 °C |
| 온도(K형) 최대 해상도 | -148 to 2372 °F (-100 to 1300 °C) |
| 온도(N형) 기본 정확도 | 0.2% + 1.8 °F/1 °C |
| 온도(공기) | 32 to 122 °F (0 to 50 °C) |
| 온도(공기) 기본 정확도 | ±1.8 °F/1 °C |
| 온도(공기) 최대 해상도 | 0.1° |
| 이슬점 | -13 to 120 °F (-25 to 50 °C) |
| 이슬점 최대 해상도 | 0.1° |
| 추가 정보 | |
|---|---|
| 무게 | 8.6oz (245g) |
| 보증 | 3 years |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
리소스 및 지원
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407001 USB Driver
User Manual
Extech SDL550 User Manual
Certification
Extech SDL550 Declaration of Conformity
Datasheet
Extech SDL550 Datasheet
