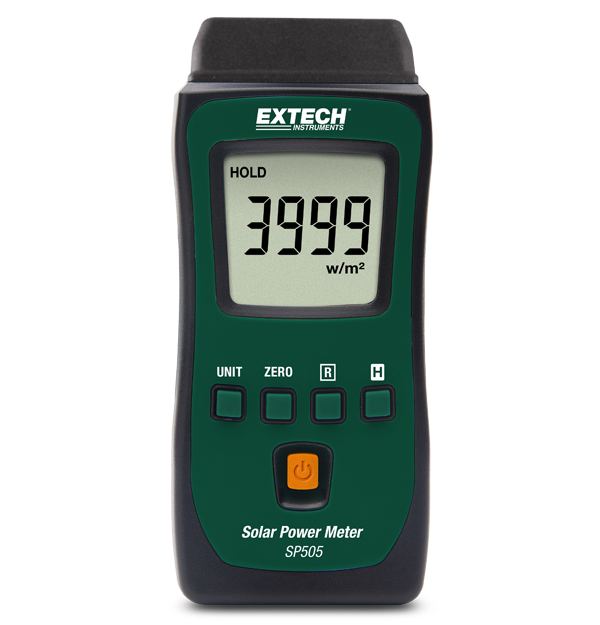

Extech SP505
Pocket Solar Power Meter
Extech’s SP505 measures solar power level from sunlight outdoors to determine the best location of solar panel and solar water heater installations. It is also used indoors by window manufacturers, the automotive industry, and remodeling home owners to check the level of solar radiation transmission through various glass thicknesses and degrees of tinting to use for window installations. The convenient, pocket-sized meter with a built-in precision solar light sensor is easy-to-use wherever you go.
사양
| 일반 사양 | |
|---|---|
| 스펙트럼 반응 | 400 nm to 1100 nm |
| 태양열 | 3999 W/m², 634 BTU/(ft²×h) |
| 태양열 기본 정확도 | ±10 W/m², ±3 BTU/(ft²×h) or ±5% (whichever is greater) |
| 태양열 최대 해상도 | 1 W/m², 1 BTU/(ft²×h) |
| 추가 정보 | |
|---|---|
| 무게 | 2.8oz (80g) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 2 × AAA (1.5V) batteries |
| 크기 | 4.3 × 1.9 × 1" (108 × 48 × 23mm) |
