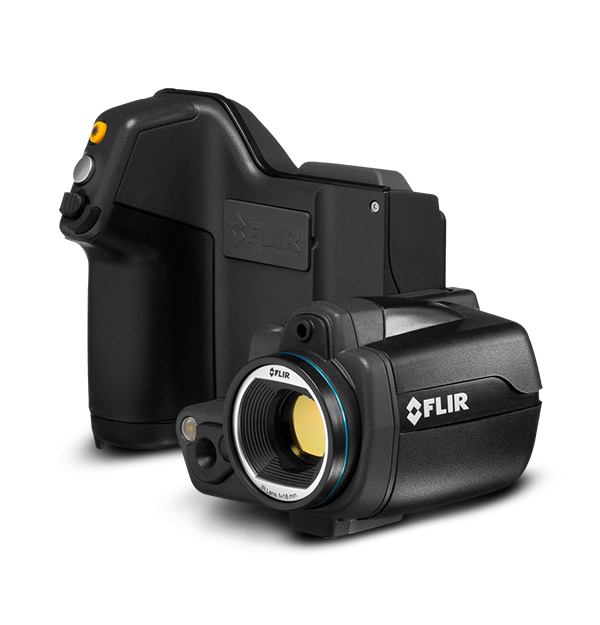

FLIR T450sc

Compact Thermal Camera

The FLIR T450sc is a thermal imaging camera with a rotating optical block and touch screen interface. This handheld camera is perfect for bench-top testing in the lab or dynamic testing in the feld. The tiltable IR unit gives you great flexibility and allows you to conduct your experiments fast and in a comfortable position.

The T450sc is equipped with an uncooled Vanadium Oxide (VOx) microbolometer detector that produces thermal images of 320 x 240 pixels. It generates crisp and clear detailed images that are easy to interpret, resulting in reliable imaging with high accuracy. The T430sc is also equipped with a visual camera.
The high quality LCD touch screen presents sharp, bright images, bringing interactivity and user comfort to a new level. These features combined with the large back-lit buttons and joystick make the camera very easy to use.
The T450sc allows for full dynamic video streaming to a PC using USB or to mobile devices using Wi-Fi. It can also record visual and thermal non-radiometric MPEG-4 video files.

사양

강조 표시됨
해상도 320 × 240
탐지기 피치 25 µm
스펙트럼 범위 7.5 – 13.0 µm
탐지기 유형 Uncooled Microbolometer
카메라 f_값 f/1.3 Integrated Lens 18 mm (25°)
동작 범위 14-bit
NETD <30 mK
프레임률 60 Hz
초점 Automatic or Manual (Motorized)
이미징 및 광학
MSX 향상_픽쳐 인 픽쳐 (PIP) Adds Visible Detail to Thermal/P-i-P Overlays Thermal on Visible Image
NETD <30 mK
UltraMax 이미지 향상 기능 Increases Number of Pixels up to 4x Via Software
동작 범위 14-bit
디지털 데이터 스트리밍 Real-time Radiometric = USB to PC, Real-time Non-Radiometric = MPEG via USB to PC
사용 가능한 렌즈 10 mm (45°), 25° with case
스펙트럼 범위 7.5 – 13.0 µm
시간 상수 <12 ms
실화상 이미지 3.1 Megapixel from Integrated Visible Camera
온-카메라 디스플레이 Touch Screen/3.5 in LCD Display (320 × 240)
온-카메라 방사선 측정 기록 Real-time Temperature, Calibrated Movie Recording at 30 Hz to SD card
이미지 분석 Spot Meters, Areas, Auto Hot / Cold Detection, Difference Temp, Isotherms, Alarms, Line Profile
이미지 주석 60 Sec Voice, Text, 4 x Markers, Sketch
자동_방향 설정 Keeps Onscreen Temperature Data Upright in Portrait or Landscape
초점 Automatic or Manual (Motorized)
카메라 f_값 f/1.3 Integrated Lens 18 mm (25°)
클로즈_업 렌즈_현미경 Close-up (25 µm), (50 µm), (100 µm)
탐지기 유형 Uncooled Microbolometer
탐지기 피치 25 µm
프레임률 60 Hz
해상도 320 × 240
측정 및 분석
대상 온도 범위 -20°C to +120°C (-4°F to +248°F) 0°C to +650°C (+32°F to +1202°F)
범프_진동 25 g (IEC 60068-2-29) / 2 g (IEC 60068-2-6)
자동 게인 (Gain) 제어 Manual, Linear, Histogram, DDE
정확도 ±1°C or ±1% (Limited Range), ±2°C or 2%, Whichever is Greater, at 25°C Nominal
통신 및 데이터 저장 공간
아날로그 동영상 Composite Video / RCA Connector
일반
무게 [배터리 포함] 0.855 kg (1.88 lb)
크기 [L x W x H] 106 × 201 × 125 mm (4.2 × 7.9 × 4.9 in)
전력
배터리 시스템 Li Ion, 4 Hours Operating Time
외부 전원 AC Adapter 90-260 VAC, 50/60 Hz or 12 V from a Vehicle
환경 및 인증
마운트 장착 ¼”-20
보관 온도 범위 -40°C to 70°C (-40°F to 158°F)
인캡슐레이션 IP 54 (IEC 60529)
작동 온도 범위 -15°C to 50°C (5°F to 122°F)

액세서리

  1. Bluetooth Headset (T197771ACC)
  1. Video cable, 3.5mm to RCA, 1.9m (1910582ACC)
  2. USB cable, USB-A to USB Mini-B (1910423)
  1. High Capacity Battery for IR Camera (1196398ACC)
  1. Nylon Pouch (1124545)
  2. Hard Transport Case (T198370ACC)
  1. IR lens, 45° FOV, 9.66mm (1196960)
  2. IR lens, 15° FOV, 30mm (1196961)
