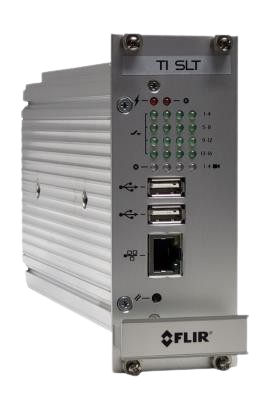

FLIR TI SLT Interface
TrafiCam 3 and TrafiOne BPL Interface
The FLIR TI SLT BPL interface connects zone outputs from TrafiCam 3 and TrafiOne sensors to a controller. The TI SLT provides power and communications to the sensors at the same time. It also connects the PC to the connected sensors for system configuration and viewing.
사양
| 시스템 개요 | |
|---|---|
| Error Output | 4 × optical coupled dry contacts N/O via terminal connector on the back Imax = 50 m A, Umax = 48 V DC 1 interface error LED on the front 4× sensor status LEDs |
| Maximum Cameras | Standard 1 – 8 sensors Maximum 8 × sensors |
| 통신 | |
|---|---|
| Connector | Via 4 × terminal connectors on the back |
| Output | 16 × optical coupled dry contacts N/C via terminal connector on the back
Imax = 50m A, Umax = 48 V DC Configurable ‘Close on Event’ or ‘Open on Event’ *Detection output status information via 16 output LEDS (green, front) |
| RJ11 connector | 1 RJ45 Ethernet connector |
| 전기적 특성 | |
|---|---|
| Current Consumption | ≤130 mA at 24 V DC |
| Input Voltage | 12 – 42 V AC 12 – 48 V DC |
| Power Consumption | ≤130 mA at 24 V DC |
| 환경적 특성 | |
|---|---|
| EMC | EMC 2014/30/EU, LVD 2014/35/EU, RoHS 2011/65/EU |
| Temperature Range | -40°C to 74°C (-40°F to 165°F) |
| 기계적 특성 | |
|---|---|
| Dimensions | (H × W × D) 12.84 × 5.05 × 18.00 cm (5.06 × 1.99 × 7.09 in) |
| Mount | BOX, EURO-rack mountable, DIN-rail clickable |
| Weight | 750 g (1.65 lb) |
Resources & Support
Datasheet
Flir TI SLT Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
