Extech WQ530

Benchtop Water Quality Meter/Stirrer

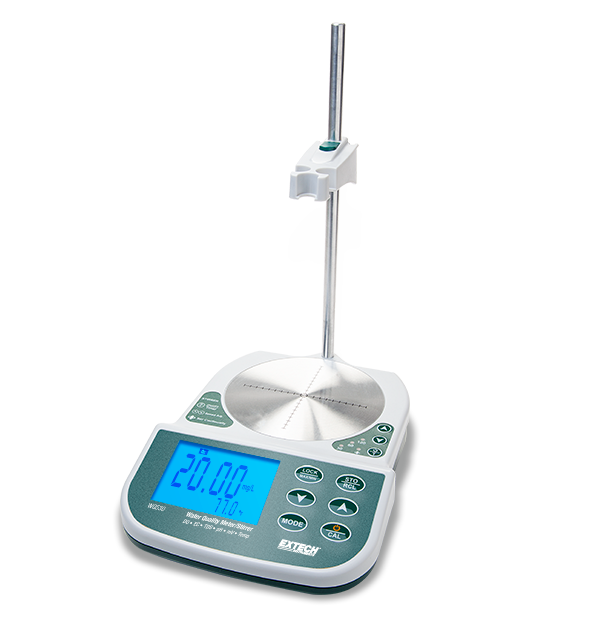

The Extech WQ530 is a 8 in 1 Benchtop Meter capable of measuring dissolved oxygen, concentration/saturation, pH, ORP, conductivity, TDS, salinity, and temperature of liquids and semi-solids. The unit features a 30 min, 60 min, and 120 min timer or continuous stirring. It also features two or three point pH calibration, one point conductivity calibration, automatic temperature compensation, adjustable conductivity to TDS ratio, and manual salinity and altitude compensation. The WQ530 features a large backlit dual display and the ability to store and recall 150 readings, as well as capture readings directly to a PC via the built-in USB interface. The WQ530 comes complete with pH glass electrode, conductivity cell, DO probe, temperature probe, four membrane caps and DO internal fill solution (30 mL), pH calibration solutions (4 pH and 7 pH), conductivity calibration solutions (1413 µS and 12.88 mS), plastic burette, polishing paper, electrode clamp and rod, software and USB cable, AC adapter and stirrer, and user manual.

사양

일반 사양
ORP -1999 to + 1999mV
ORP 기본 정확도 ±2mV
ORP 최대 해상도 0.1mV
pH -2.00 to 16.00pH
pH 기본 정확도 ±0.02pH
pH 최대 해상도 0.01pH
TDS 0.0 to 66.0ppt
TDS 기본 정확도 ±2%FS
TDS 최대 해상도 0.1ppt
염도 0.0 to 50.0ppt
염도 기본 정확도 ±2%FS
염도 최대 해상도 0.1ppt
온도(접촉) 32 to 212°F (0 to 100°C) for pH
온도(접촉) 기본 정확도 ±1.8°F/1°C
온도(접촉) 최대 해상도 0.1°
용존 산소(농도) 0 to 20.00mg/L
용존 산소(농도) 기본 정확도 ±2%FS
용존 산소(농도) 최대 해상도 0.01mg/L
용존 산소(포화도) 0 to 200.0%
용존 산소(포화도) 기본 정확도 ±2% full scale
용존 산소(포화도) 최대 해상도 0.10%
전도성 0.0 to 100.0mS
전도성 기본 정확도 ±2% full scale
전도성 최대 해상도 0.1mS
추가 정보
무게 1.5lbs (700g)
보증 1.5lbs (700g)
인증 CE
전원 100 to 240V AC adapter with US, EU, UK, and AU plugs
크기 4 × 5.7 × 1.3" (103 × 145 × 32mm)

리소스 및 지원

Certification

Extech WQ530 Declaration of Conformity

User Manual

Extech WQ500 WQ510 WQ530 User Manual
