5 or 8 MP Visible-Spectrum Corner Cameras

Ariel™ Corner Camera Series

Ariel Corner Cameras are designed to deliver total room visibility in spaces where blind spots, tampering, and inconsistent lighting are unacceptable. Purpose-built for applications such as correctional institutions, healthcare facilities, building lobbies, and elevators, Ariel provides wall‑to‑wall coverage from a single corner-mounted camera.
With options for highly-detailed 5 or 8 MP video, Ariel Corner Cameras offer superior low-light performance, integrated infrared illumination, and a rugged vandal‑resistant housing for a discreet, reliable surveillance solution.

The corner-mounted design with ultra-wide field of view and integrated IR illumination provides an expansive view, eliminating blind spots common in elevators, cells, corridors, and lobbies.
The high-resolution sensor with wide dynamic range imaging captures clear, detailed video suitable for incident review and compliance documentation.
The rugged metal enclosure with ligature‑free corner design is engineered to withstand tampering, impacts, and harsh use, making it well suited for both indoor and outdoor spaces.

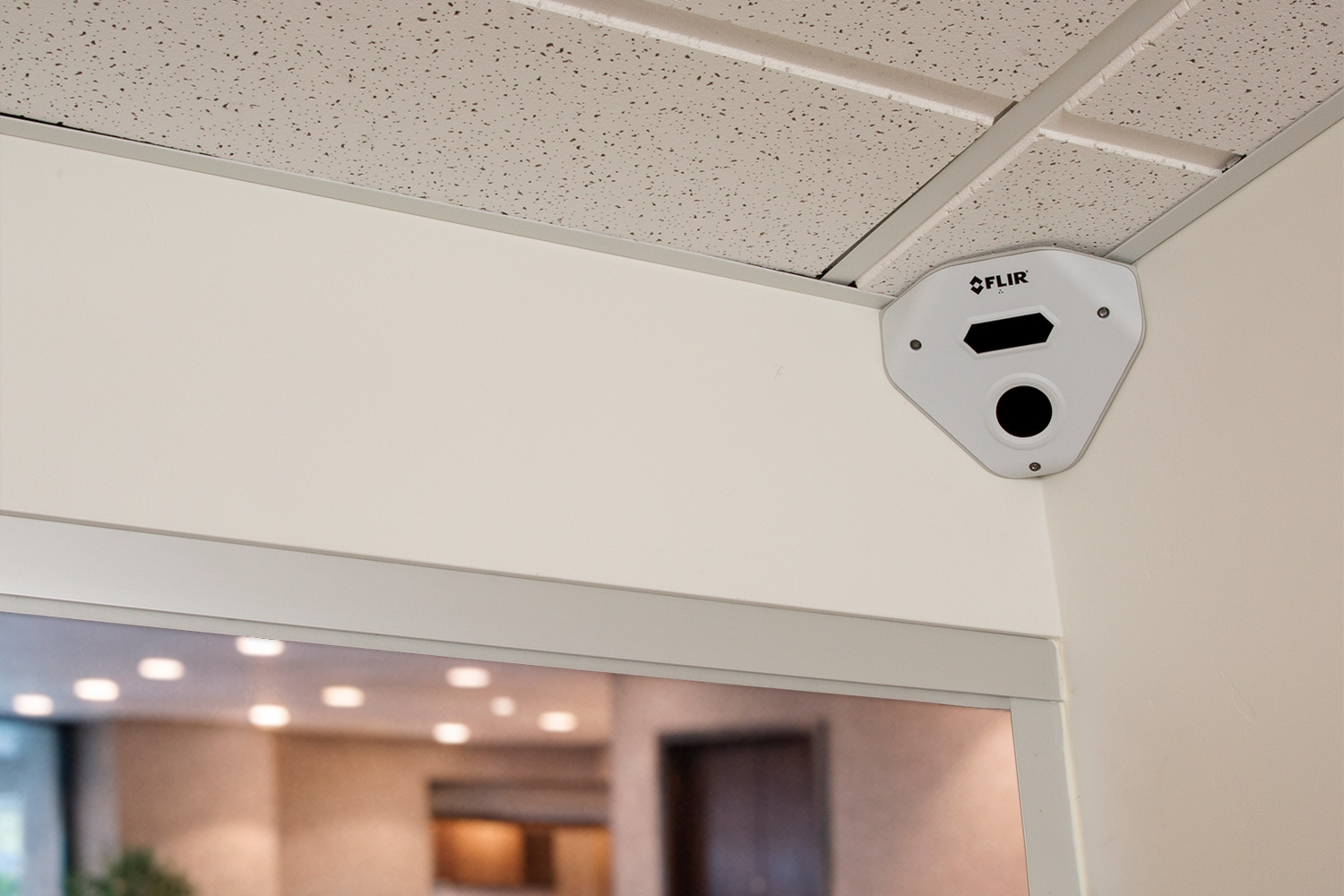

Product showcase image

Compare Models

Ariel™ Eckkamera

Ariel™ Eckkamera

  • 5 MP resolution
  • 2.1 mm, f/2.0 lens
  • 139.1° HFOV × 101.65° VFOV @ 2592 × 1944
Produkt anzeigen
Ariel™ Eckkamera

Ariel™ Eckkamera

  • 8 MP resolution
  • 2.8 mm, f/2.2 lens
  • 132.9° HFOV × 98.1° VFOV @ 4000 × 3000
Produkt anzeigen

Ressourcen und Support

Note: You must be logged in to download software or firmware. Login or create an account.

Firmware Download

FLIR Ariel Corner Camera Firmware (CC-3405-01-I 5 MP Only)

Sie müssen angemeldet sein, um die Datei herunterzuladen.

Firmware Download

FLIR Ariel Corner Camera Firmware (CC-3408-01-IA Only)

Sie müssen angemeldet sein, um die Datei herunterzuladen.

Software Download

FLIR DNA Software - Version 2.3.0.35

Sie müssen angemeldet sein, um die Datei herunterzuladen.

Datasheet

FLIR Ariel 5MP 8MP Eckkamera Datenblatt

Herunterladen

User Manual

FLIR Ariel Corner Camera Installation & User Guide

Herunterladen

Firmware Release Note

FLIR Ariel Corner Camera Firmware Release Notes [CC-3405-01-I 5 MP Corner Camera only]

Herunterladen

Quick Start Guide

FLIR Ariel Corner Camera Quick Install Guide

Herunterladen

Firmware Release Note

FLIR Ariel Corner Camera Firmware Release Notes [CC-3408-01-IA 8 MP Corner Camera only]

Herunterladen

Datasheet

FLIR Ariel 5MP 8MP Corner Camera Datasheet

Herunterladen

Compatibility

FLIR Security Cameras & Encoders - Supported 3rd Party Platforms

Herunterladen

Selection Guide

FLIR Edge Devices Accessory Guide

Herunterladen

User Manual

FLIR Cyber Hardening Guide

Herunterladen

Software Release Note

FLIR Discovery Network Assistant (DNA) Software Release Note v2.3.0.35

Herunterladen
