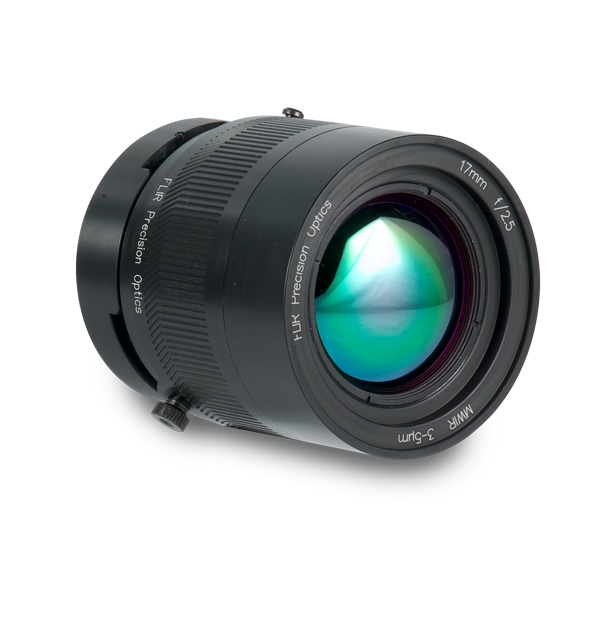

17 mm f/2.5 MWIR FPO manual lens
17 mm MWIR lens for FLIR R&D/Science cameras, including A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR, and X85xx MWIR.
Specifications
| Imaging & Optical | |
|---|---|
| Diameter | 68 mm (2.69 in) |
| Distortion | <3.5% |
| Focal Length | 17 mm |
| Focus | Manual |
| Focus Range | 0.06 m to infinity |
| F_number | f/2.5 |
| Hyperfocal Distance | 5 m (at 4.2 µm) |
| Length | 68 mm (2.69 in) |
| Spectral Band | 3 - 5 µm |
| Communication & Data Storage | |
|---|---|
| Interface | 4-tab FPO manual focus bayonet |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -20°C to 50°C (-4° to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| General | |
|---|---|
| Average Transmission | 95.12% |
| Weight | 0.44 kg (0.96 lbs) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
