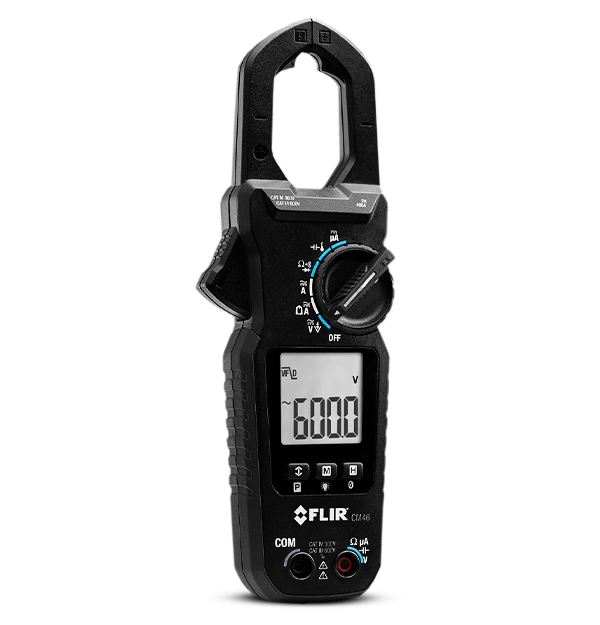

FLIR CM46
True RMS Clamp Meter with DC Current
The FLIR CM46 clamp meter is designed for commercial and residential electricians. Featuring both AC/DC measurement, the meter is equipped with a bright backlit display for use inside electrical panels. Accu-Tip™ technology delivers amperage measurements on smaller-gauged wires more accurately — to a tenth of a digit. The meter also offers MAX/MIN/AVG recording; measures DCµA, temperature, capacitance, and frequency; and has electrical field detection to help you determine voltage presence and relative strength of the field.
Specifications
| Highlighted | |
|---|---|
| Jaw Opening | 30 mm Max |
| Measurement & Analysis | |
|---|---|
| AC Voltage [Digital Low Pass Filter_VFD] | 600 V (Basic Accuracy ±1.0%) |
| Accu_Tip Clamp_On AC Current | 60 A (Basic Accuracy ±1.5%) |
| Accu_Tip Clamp_On DC Current | 60 A (Basic Accuracy ±2.0%) |
| AC_DC Voltage [Digital Low Pass Filter_VFD] | 600 V (Basic Accuracy ±1.2%) |
| Capacitance | 2500 µF (Basic Accuracy ±2.0%) |
| Category | CAT IV 300V / CAT III 600V |
| Clamp_On AC Current [100_400 Hz] | 400 A (Basic Accuracy ±2.0%) |
| Clamp_On AC Current [50_100 Hz] | 400 A (Basic Accuracy ±1.8%) |
| Clamp_On DC Current | 400 A (Basic Accuracy ±2.0%) |
| Continuity | 10Ω< & < 250Ω |
| DC microA | 2000 µA (Basic Accuracy ±1.0%) |
| DC Voltage | 600 V (Basic Accuracy ±1.0%) |
| Diode | 2.0 V (Basic Accuracy ±1.5%) |
| Frequency | 50-400 Hz (Basic Accuracy ±1.0%) |
| NCV | Yes |
| Recording | Min / Max / Avg |
| Resistance | 60 kΩ (Basic Accuracy ±1.0%) |
| Temperature | -40°C to 400°C (-40°F to 752°F) (Basic Accuracy ±1.0%) |
| User Interface | |
|---|---|
| Display | 3-5/6 digits 6000 counts |
| Power | |
|---|---|
| Battery Type | 2x AAA |
| General | |
|---|---|
| Backlight LCD | Yes |
| Jaw Opening | 30 mm Max |
| Environmental & Certifications | |
|---|---|
| Certifications | UL , CE |
| Drop test | 2m |
| Operating Temperature | -10°C to 50°C (14 to 122°F) |
| Warranty | Limited 3-Year |
