Discontinued

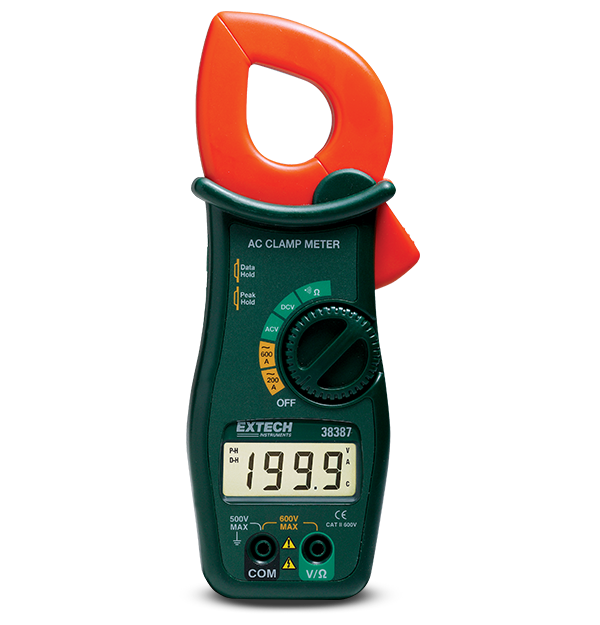

Extech 38387
600A AC Clamp + MultiMeter
The Extech 38387 is a 600 A AC Clamp Meter which has a 3.2 cm (1.25 in) circular jaw for large cables up to 350 MCM. In addition to AC Current, it can measure AC/DC voltage, resistance, and has a continuity beeper. Meter features also include data hold and an auto power off. Product comes complete with test leads, 9 V battery, and a belt holster.
Specifications
| General | |
|---|---|
| AC Current | 200.0A, 600A |
| AC Current Basic Accuracy | ±(1.5% of reading + 4 digits) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±(1.5% of reading + 4 digits) |
| AC Voltage Max Resolution | 1V |
| Continuity | Beeper ≤50Ω |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±(1% of reading + 1 digit) |
| DC Voltage Max Resolution | 1V |
| Jaw Size | 1.25" (33mm), conductors up to 350MCM |
| Resistance | 2000Ω |
| Resistance Max Resolution | 1Ω |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 3.1 × 8 × 1.6" (79 × 203 × 41mm) |
| Display | Segment LCD |
| Power | 1 × 9V battery |
| Safety Category | CAT II-600V |
| Warranty | 2 years |
| Weight | 6.5oz (185g) |
Resources & Support
User Manual
Extech 38387 User Manual
Certification
Extech 38387 Declaration of Conformity
Datasheet
Extech 38387 38389 Datasheet
