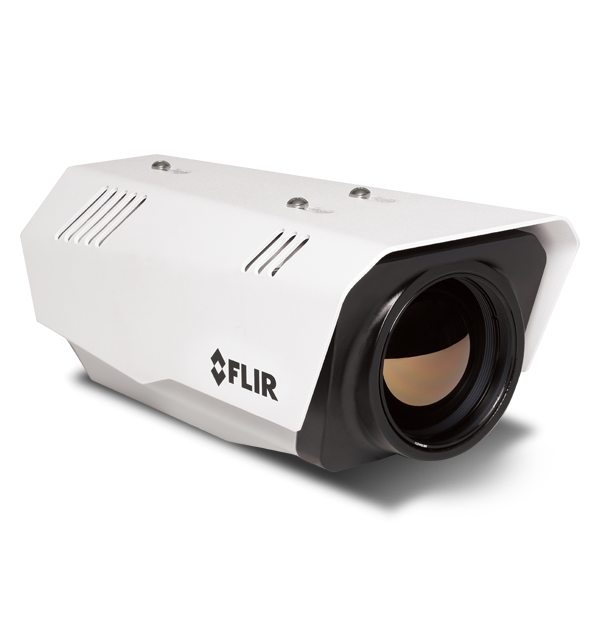

ITS-Series AID
自動事故検知
FLIR ITSシリーズAIDカメラは、最先端の赤外線画像処理技術と高性能ビデオ映像解析機能が統合された、自動事故検知／データ収集／火災の早期発見に向けた総合ソリューションです。フリアーシステムズの交通ビデオ映像解析技術は、既に、世界各地の高速道路やトンネルにおいて優れた性能が実証されています。そして、高性能赤外線サーマルカメラとの統合により、悪天候時や暗闇環境下や遠距離範囲でも常に明瞭な可視化を達成し、確実な交通監視体制を実現します。
仕様
| 通信 | |
|---|---|
| Analog Video Output | PAL |
| Video Over Ethernet | Two independent channels of H.264 or M-JPEG |
| 電気設備 | |
|---|---|
| Power Consumption, Source – 12VDC | Heater off: <5.5 W Heater on (at 100%): <25 W |
| Power Consumption, Source – 24VAC[VA] | Heater on: <8 W Heater off (at 100%): <32 W |
| Power Consumption, Source – 24VDC | Heater on: <5.5 W Heater off (at 100%): <25 W |
| Power Consumption, Source – POE [802.3af] | Heater on: <5.5 W Heater off (at 100%): N/A |
| Power Consumption, Source – POEPlus [802.3at] | Heater on: <5.5 W Heater off (at 100%): <25 W |
| Surge Immunity on Signal Lines | EN 55024: 2010 and 55022: 2010 to 4.0kV |
| 環境 | |
|---|---|
| Humidity | 0-95% relative humidity |
| IP Rating | IP66 & IP67 |
| Operating Temperature Range | -50° to 70°C (-58° to 158°F) continuous operation -40° to 70°C (-40° to 158°F ) cold start |
| Shock | MIL-STD-810G "Transportation" |
| Storage Temperature Range | -50° to 85°C (-58° to 185°F) |
| Surge Immunity on AC Power Lines | EN 55024: 2010 and 55022: 2010 to 4.0kV on AC aux power lines; EN 50130-4:2011; IEC 62599-2:2010 |
| Vibration | IEC 60068-2-27 |
| イメージングとレンズ | |
|---|---|
| Automatic Heater | Clears ice from windows Automatic deicing |
| Field of View | FLIR ITS617 AID, 640 x 512, 17° FOV: 17° x 14° FLIR ITS625 AID, 640 x 512, 25° FOV: 32° x 26° FLIR ITS632 AID, 640 x 512, 32° FOV: 25° x 19° FLIR ITS644 AID, 640 x 512, 44° FOV: 44° x 36° |
| Image Processing | Automatic Gain Control (AGC) Digital Detail Enhancement (DDE) |
| Resolution | 640 x 512 |
| Spectral Range | 7.5 to 13.5 µm |
| 準拠規制 | |
|---|---|
| Approvals | CE: EN55022 Class A; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits) |
| システム概要 | |
|---|---|
| Fire Detection | Early fire detection in tunnels |
