Extech BR95
Compact Video Borescope

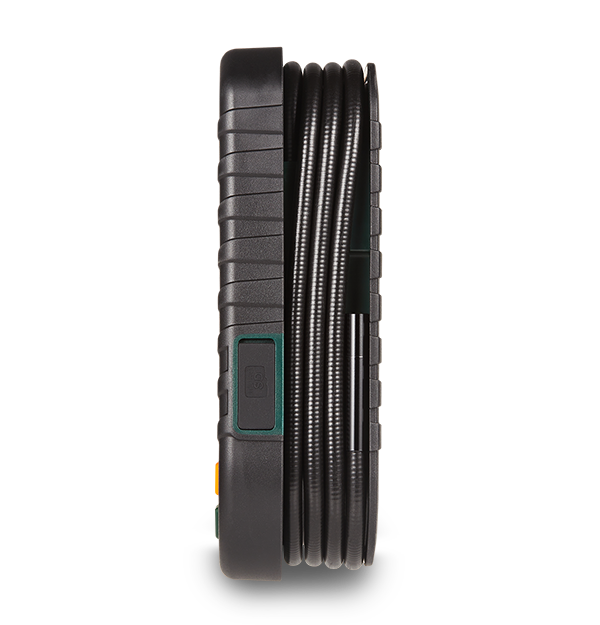

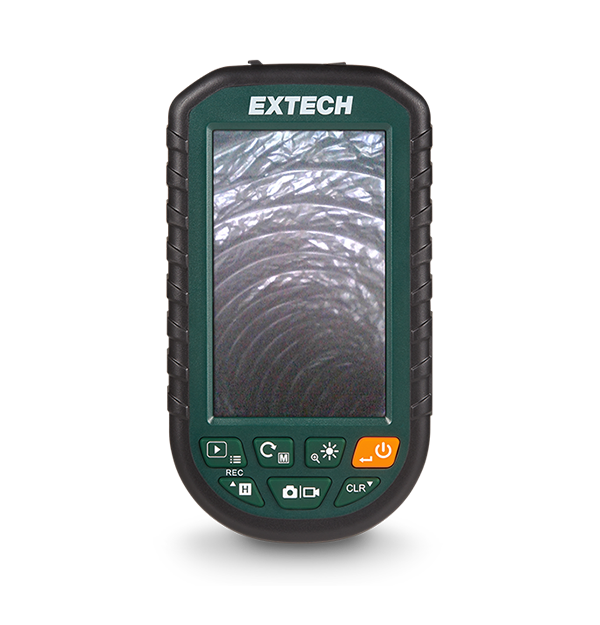

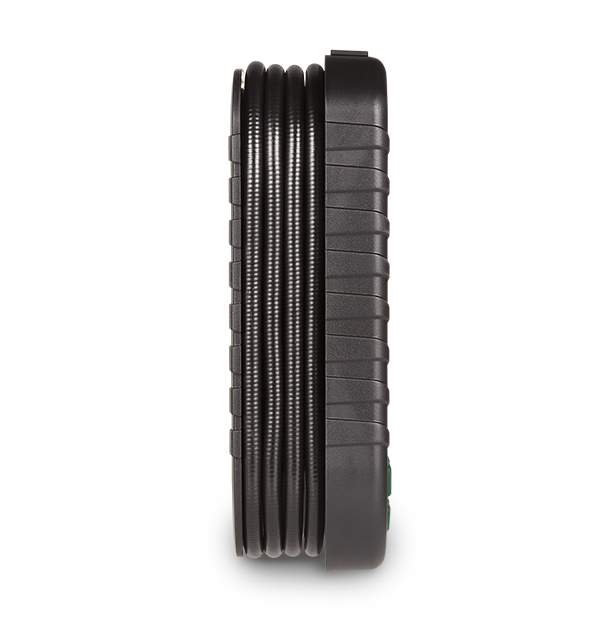

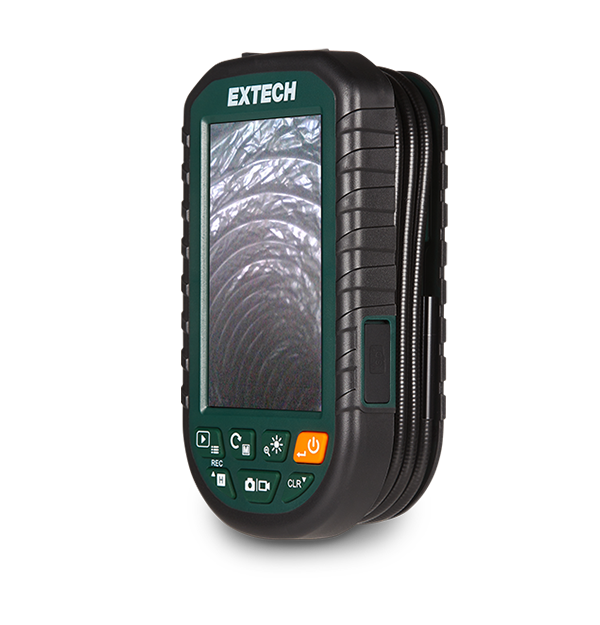

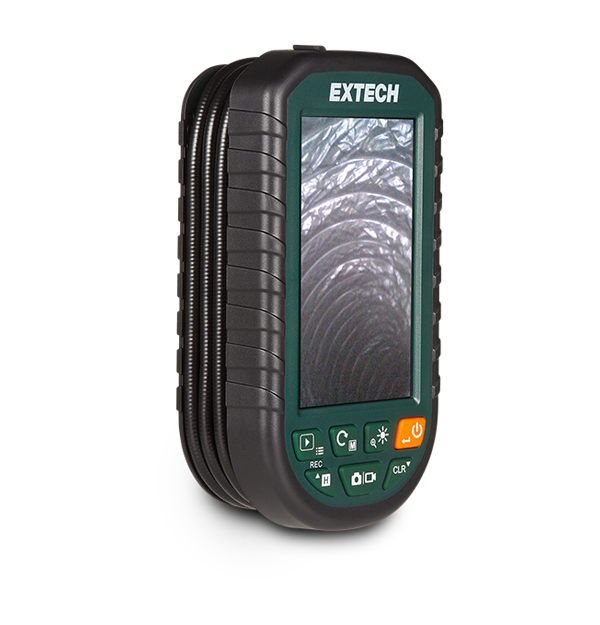

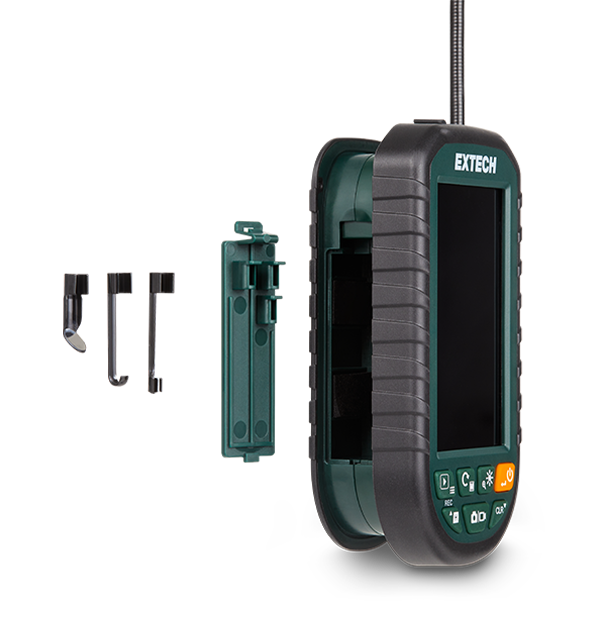

Extech’s palm-sized borescope includes a convenient compartment to coil the camera probe for easy storage. It features a waterproof (IP67) 5.5 mm camera probe with a 1 m flexible goose-neck cable that retains it’s configured shape. The camera delivers sharp 1280 × 720 resolution imaging, while the 3.5 in. IPS display provides clear viewing. Built-in bright LED lamps illuminate the inspection area, and additional features include 3x digital zoom, video recording capability, and microSD card storage for easy file management.
사양
| 일반 사양 | |
|---|---|
| 데이터 자동 기록 간격 | Configurable: 5s, 15s, 30s, 1 min |
| 메모리 | 16 GB MicroSD card included (supports up to 256 GB) |
| 시야각 (FOV) | 68° |
| 줌 | Digital 1x, 2x, 3x |
| 지름 | 5.5 mm (0.22 in) |
| 초점 거리 | 35 mm to 60 mm (1.4 in to 2.4 in) |
| 최소 굽힘 반경 | 14 mm (0.56 in) |
| 카메라 뷰 방향 | Forward |
| 케이블 길이 | 1 m (3.28 ft) |
| 프로브 유연성 | Semi-Rigid |
| 해상도 | Camera Probe: 1280 × 720 |
| 추가 정보 | |
|---|---|
| IP등급 | IP67 (Camera Probe only) |
| 데이터 로깅 | Available only when the compatible external USB sensor is connected |
| 디스플레이 | 3.5 in IPS Display (800 × 480) |
| 무게 | 262 g (0.58 lb) |
| 보증 | 2 years |
| 인증 | CE, UKCA |
| 작동 상태 | 0°C to 45°C (32°F to 113°F), <85% RH |
| 전원 | 3.7 V Li-Ion Battery with 3.5 Hour Operating Time Auto Power Off: Configurable: 5 min, 10 min, 20 min, off |

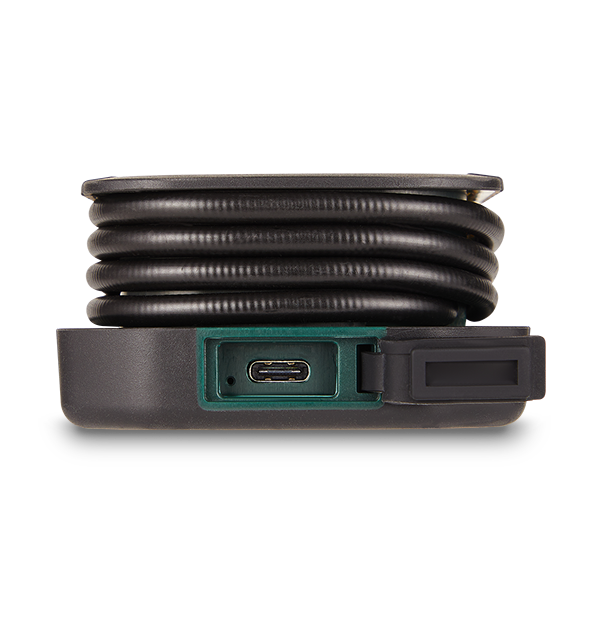

| 커넥터 | USB Type-C |
| 크기 | 129 × 73 × 39 mm (5.1 × 2.9 × 1.5 in) |
