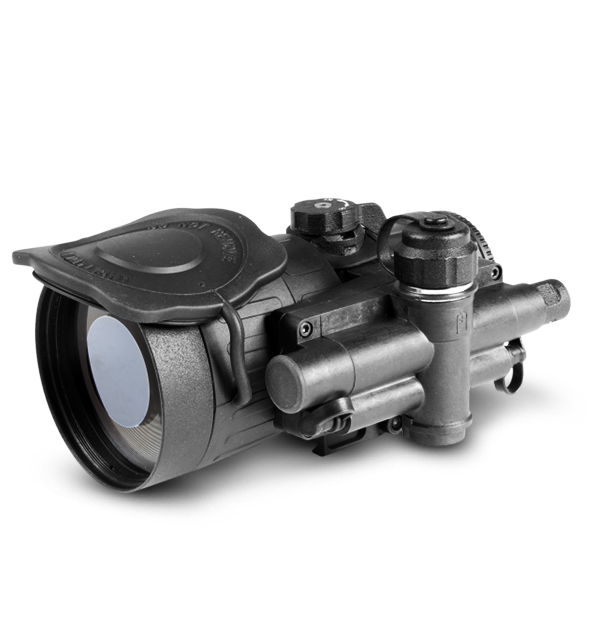

FLIR CO-X
80 mm Night Vision Clip-On System
The FLIR CO-X clip-on system introduces night vision capability to traditional daytime optics. Intended for mid-range shooting, the CO-X mounts in front of a day scope and provides reliable night vision in minimal light conditions. Using the existing daytime reticle for shot placement eliminates the need to rezero, while quick-release Picatinny mount installs in seconds.
Mid-Range Detection, High-Grade Night Vision
No rezeroing and quick transitions between day and night optics ensure 24/7 mission capability.
Included XLR IR illuminator and manual gain control enhance Gen 2+/Gen 3 high-quality night vision.
Objective lens adapter mounts to scopes and binoculars while one AA or CR123A battery provides up to 60 hours of power.
사양
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | Gen 2+ QS ("Quick Silver" White Phosphor) MG |
| 광음극 유형 | Multi-Alkali |
| 눈동자 거리 [mm] | - |
| 디옵터 조정 | - |
| 렌즈 시스템 | F/1.44; 80 mm |
| 배율 | 1x |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 12° |
| 자동 밝기 제어 | Yes |
| 적외선 조명기 | Detachable Long Range IR |
| 초점 범위 | 10 m to Infinity |
| 출사동 직경 [mm] | 21 mm |
| 해상도 | 47-54 lp/mm |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +50°С (-58°F to +122°F) |
| 작동 온도 | -40°C to +50°С (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | 60 hrs (3V) / 30 hrs (1.5V) |
| 배터리 잔량 부족 표시등 | Yes |
| 자동 전원 차단 | Yes |
| 전원공급장치 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | Wireless |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | Yes |
| 적외선 표시등 | No |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.765 kg (1.7 lbs) |
| 크기(L x W x H) | 150 × 100 × 83 mm (5.9 × 3.9 × 3.2 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | Scope Mounting System 1 #40, Scope Mounting System 2 #41, Scope Mounting System 3 #42, Scope Mounting System 4 #43, Scope Mounting System 6 #4, Extended Rail Adapter #85, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mount for IR illuminator #60, Mil-Standard Hard Shipping/Storage Case #102 |
| 포함 액세서리 | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Battery, Light Suppressor for Day Scope, AWReC (Advanced Wireless Remote Control) #94, Quick Release Mount, Instruction Manual with Warranty Card, Soft carrying Case, Picatinny adapter for AWReC (Advanced Wireless Remote Control, Special Wrench, Packing Box, Light-Suppressor 3, Light-Suppressor 2, Light-Suppressor 1, Lens Tissue |
