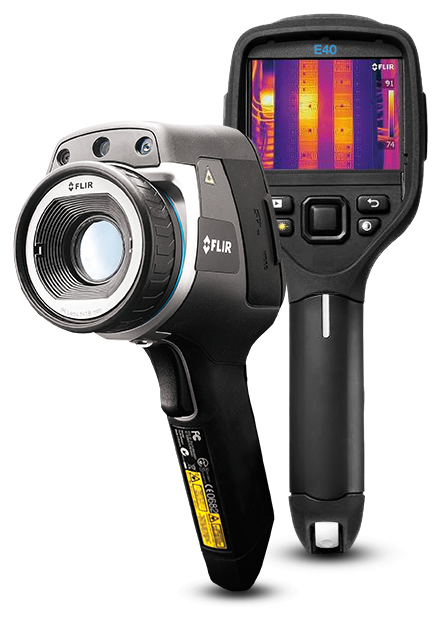

FLIR E40bx
Advanced Infrared Cameras with MSX®
The FLIR E40bx provides an accurate non-contact method for discovering and diagnosing building faults, from roof leaks to insulation voids. Find hidden problems and confirm repairs were done correctly thanks to crisp imagery from the 19,200 (160 x 120) infrared detector and the enhanced details of MSX image enhancements. This tough, drop-tested camera can be used in rugged environments while still providing you with the latest technology such as a modern touchscreen and wireless connectivity.
사양
| 강조 표시됨 | |
|---|---|
| 적외선 해상도 | 160 × 120 pixels |
| 열 감도_NETD | < 0.045°C @ +30°C (+86°F) / 45 mK |
| 작동 온도 범위 | • –20°C to +120°C (–4°F to +248°F) • 0°C to +650°C (+32°F to +1202°F) |
| 정확도 | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) |
| 시야각 (FOV) [시야각 (FOV)] | 25° × 19° |
| 이미지 모드 | IR image, visual image, MSX, picture in picture, thumbnail gallery |
| 디스플레이 | Touch screen, 3.5 in. LCD, 320 × 240 pixels |
| 이미징 및 광학 | |
|---|---|
| F-값 | 1.3 |
| 공간 해상도 [I시야각 (FOV)] | 2.72 mrad |
| 내장 디지털 카메라 | 3.1 Mpixels (2048 × 1536 pixels), and one LED light |
| 동영상 표준 | CVBS (ITU-R-BT.470 PAL/SMPTE 170M NTSC) |
| 디지털 줌 | 2× |
| 라디오메트릭(radiometric 적외선 동영상 스트리밍 | Full dynamic to PC using USB |
| 레이저 | Activated by dedicated button |
| 레이저 정렬 | Position is automatic displayed on the IR image |
| 스펙트럼 범위 | 7.5 to 13µm |
| 시야각 (FOV) [시야각 (FOV)] | 25° × 19° |
| 열 감도_NETD | < 0.045°C @ +30°C (+86°F) / 45 mK |
| 이미지 모드 | IR image, visual image, MSX, picture in picture, thumbnail gallery |
| 적외선 해상도 | 160 × 120 pixels |
| 초점 | Manual |
| 초점 길이 | 18 mm (0.7 in.) |
| 최소 초점 거리 | 0.4 m (1.31 ft.) |
| 컬러 팔레트 | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| 탐지기 유형 | Focal plane array (FPA), uncooled microbolometer |
| 프레임률 | 60Hz |
| 픽쳐 인 픽쳐 (PIP) | IR area on visual image |
| 측정 및 분석 | |
|---|---|
| 구역 박스 | 3 Area Boxes (full image with min/max/avg) |
| 기준 온도 | - |
| 방사율 보정 기능 | Variable from 0.01 to 1.0 or selected from materials list |
| 설정 명령 | Local adaptation of units, language, date and time formats |
| 스팟 미터 | 3 |
| 작동 온도 범위 | • –20°C to +120°C (–4°F to +248°F) • 0°C to +650°C (+32°F to +1202°F) |
| 정확도 | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) |
| 차이 온도 | Delta temperature between measurement functions or reference temperature |
| 측정 모드 | Auto hot/cold spot, Isotherm (above/below/interval) |
| 측정 보정 | Reflected temperature, optics transmission and atmospheric transmission |
| 카메라 무게(배터리 포함) | 0.869 kg (1.91 lb.) |
| 카메라 크기 [L x W x H] | 246 × 97 × 184 mm (9.7 × 3.8 × 7.2 in.) |
| 사용자 인터페이스 | |
|---|---|
| 디스플레이 | Touch screen, 3.5 in. LCD, 320 × 240 pixels |
| 보고서 생성 | FLIR Tools software specifically designed to provide an easy way to create inspection reports. It is available on the major platforms – Android, Windows, MacOS, and iOS. |
| 음성 | 60 seconds (via Bluetooth) |
| 텍스트 | Text from predefined list or soft keyboard on touch screen |
| 통신 및 데이터 저장 공간 | |
|---|---|
| AC 작동 | AC adapter, 90–260 VAC input, 12 V output to camera |
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
| SD 카드 | One card slot for removable SD memory cards |
| USB | •USB-A: Connect external USB device •USB Mini-B: Data transfer to and from PC / uncompressed colorized video |
| USB_커넥터 유형 | •USB-A connector •USB Mini-B connector |
| USB_표준 | USB Mini-B: 2.0 |
| WiFi | •Standard: 802.11 b/g •Frequency range: 2412–2462 MHz •Max. output power: 15 dBm |
| 동영상 출력 | Composite |
| 동영상 커넥터 유형 | 4-pole 3.5 mm jack |
| 블루투스 | Frequency range: 2402–2480 MHz |
| 안테나 | Internal |
| 이미지 저장 | Standard JPEG, including measurement data, on memory card |
| 이미지 저장 모드 | Simultaneous storage of images in IR, visual and MSX |
| 전력 | |
|---|---|
| 배터리 용량 | 4.4 Ah, at +20°C to +25°C (+68°F to +77°F) |
| 배터리 유형 | Rechargeable Li ion battery |
| 배터리 작동 시간 | Approx. 4 hours at +25°C (+77°F) ambient temperature and typical use |
| 배터리 전압 | 3.7 V |
| 전원 관리 | Automatic shutdown and sleep mode (user selectable) |
| 절전 모드에서 소요되는 시작 시간 | Instant on |
| 충전 시간 | 4 h to 90% capacity, charging status indicated by LED's |
| 충전 시스템 | In camera (AC adapter or 12 V from a vehicle) or 2-bay charger |
| 충전 온도 | 0°C to +45°C (+32°F to +113°F) |
| 환경 및 인증 | |
|---|---|
| EMC | •ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (Immunity) •EN 61000-6-3 (Emission) •FCC 47 CFR Part 15 B (Emission) •ICES-003 |
| 낙하 | 2 m (6.6 ft.) |
| 레이저 분류 | Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red) |
| 보관 온도 범위 | –40°C to +70°C (–40°F to +158°F) |
| 삼각대 마운트 | UNC ¼"-20 (adapter needed) |
| 습도 [작동 및 저장] | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles |
| 안전 | EN/UL/CSA/PSE 60950-1 |
| 인캡슐레이션 | IP 54 (IEC 60529) |
| 자기장 | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| 작동 온도 범위 | –20°C to +120°C (–4°F to +248°F) |
| 전파 스펙트럼 | •ETSI EN 300 328 •FCC Part 15.247 •RSS-247 Issue 2 |
| 진동 | 2 g (IEC 60068-2-6) |
| 충격 | 25 g (IEC 60068-2-27) |
| 일반 | |
|---|---|
| 자재 | •Polycarbonate + acrylonitrile butadiene styrene (PC-ABS) •Thixomold magnesium •Thermoplastic elastomer (TPE) |
| 포장 | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
| 포장 크기 | 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.) |
