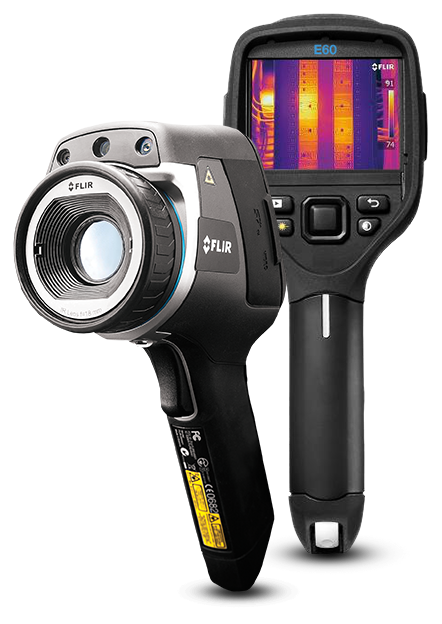

FLIR E60bx
Advanced Infrared Camera with MSX®
The FLIR E60bx offers a robust feature set that helps you troubleshoot more efficiently, create detailed reports easier, and share images and findings faster. Get more done thanks to productive features such as Wi-Fi streaming to the FLIR Tools app, MAX/MIN/AVG measurement areas, and MSX image enhancements. Clearly reveal sources of energy loss, structural issues, and more with this 76,800 (320 x 240) pixel resolution thermal camera.
사양
| 강조 표시됨 | |
|---|---|
| 적외선 해상도 | 320 × 240 pixels |
| 열 감도_NETD | <0.045°C @ +30°C (+86°F) / 45 mK |
| 작동 온도 범위 | • –20°C to +120°C (–4°F to +248°F) • 0°C to +650°C (+32°F to +1202°F) |
| 정확도 | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) |
| 시야각 (FOV) [시야각 (FOV)] | 25° × 19° |
| 이미지 모드 | IR image, visual image, MSX, picture in picture, thumbnail gallery |
| 디스플레이 | Touch screen, 3.5 in. LCD, 320 × 240 pixels |
| 이미징 및 광학 | |
|---|---|
| F-값 | 1.3 |
| 공간 해상도 [I시야각 (FOV)] | 1.36 mrad |
| 내장 디지털 카메라 | 3.1 Mpixels (2048 × 1536 pixels), and one LED light |
| 동영상 표준 | CVBS (ITU-R-BT.470 PAL/SMPTE 170M NTSC) |
| 디지털 줌 | 2× and 4× |
| 라디오메트릭(radiometric 적외선 동영상 스트리밍 | Full dynamic to PC using USB |
| 레이저 | Activated by dedicated button |
| 레이저 정렬 | Position is automatic displayed on the IR image |
| 비 방사선 측정(Non_radiometric) 적외선 동영상 스트리밍 | Uncompressed colorized video using USB |
| 스펙트럼 범위 | 7.5 to 13µm |
| 시야각 (FOV) [시야각 (FOV)] | 25° × 19° |
| 열 감도_NETD | <0.045°C @ +30°C (+86°F) / 45 mK |
| 이미지 모드 | IR image, visual image, MSX, picture in picture, thumbnail gallery |
| 적외선 해상도 | 320 × 240 pixels |
| 초점 | Manual |
| 초점 길이 | 18 mm (0.7 in.) |
| 최소 초점 거리 | 0.4 m (1.31 ft.) |
| 컬러 팔레트 | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| 탐지기 유형 | Focal plane array (FPA), uncooled microbolometer |
| 프레임률 | 60Hz |
| 픽쳐 인 픽쳐 (PIP) | Scalable IR area on visual image |
| 측정 및 분석 | |
|---|---|
| 구역 박스 | 3 Area Boxes (full image with min/max/avg) |
| 기준 온도 | Manually set or captured from any measurement function |
| 방사율 보정 기능 | Variable from 0.01 to 1.0 or selected from materials list |
| 설정 명령 | Local adaptation of units, language, date and time formats |
| 스팟 미터 | 3 |
| 작동 온도 범위 | • –20°C to +120°C (–4°F to +248°F) • 0°C to +650°C (+32°F to +1202°F) |
| 정확도 | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F) |
| 차이 온도 | Delta temperature between measurement functions or reference temperature |
| 측정 모드 | Auto hot/cold spot, Isotherm (above/below/interval) |
| 측정 보정 | Reflected temperature, optics transmission and atmospheric transmission |
| 카메라 무게(배터리 포함) | 0.869 kg (1.91 lb.) |
| 카메라 크기 [L x W x H] | 246 × 97 × 184 mm (9.7 × 3.8 × 7.2 in.) |
| 사용자 인터페이스 | |
|---|---|
| 디스플레이 | Touch screen, 3.5 in. LCD, 320 × 240 pixels |
| 보고서 생성 | FLIR Tools software specifically designed to provide an easy way to create inspection reports. It is available on the major platforms – Android, Windows, MacOS, and iOS. |
| 음성 | 60 seconds (via Bluetooth) |
| 텍스트 | Text from predefined list or soft keyboard on touch screen |
| 통신 및 데이터 저장 공간 | |
|---|---|
| AC 작동 | AC adapter, 90–260 VAC input, 12 V output to camera |
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
| SD 카드 | One card slot for removable SD memory cards |
| USB | •USB-A: Connect external USB device •USB Mini-B: Data transfer to and from PC / uncompressed colorized video |
| USB_커넥터 유형 | •USB-A connector •USB Mini-B connector |
| USB_표준 | USB Mini-B: 2.0 |
| WiFi | •Standard: 802.11 b/g •Frequency range: 2412–2462 MHz •Max. output power: 15 dBm |
| 동영상 출력 | Composite |
| 동영상 커넥터 유형 | 4-pole 3.5 mm jack |
| 블루투스 | Frequency range: 2402–2480 MHz |
| 안테나 | Internal |
| 이미지 저장 | Standard JPEG, including measurement data, on memory card |
| 이미지 저장 모드 | Simultaneous storage of images in IR, visual and MSX |
| 전력 | |
|---|---|
| 배터리 용량 | 4.4 Ah, at +20°C to +25°C (+68°F to +77°F) |
| 배터리 유형 | Rechargeable Li ion battery |
| 배터리 작동 시간 | Approx. 4 hours at +25°C (+77°F) ambient temperature and typical use |
| 배터리 전압 | 3.7 V |
| 전원 관리 | Automatic shutdown and sleep mode (user selectable) |
| 절전 모드에서 소요되는 시작 시간 | Instant on |
| 충전 시간 | 4 h to 90% capacity, charging status indicated by LED's |
| 충전 시스템 | In camera (AC adapter or 12 V from a vehicle) or 2-bay charger |
| 충전 온도 | 0°C to +45°C (+32°F to +113°F) |
| 환경 및 인증 | |
|---|---|
| EMC | •ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (Immunity) •EN 61000-6-3 (Emission) •FCC 47 CFR Part 15 B (Emission) •ICES-003 |
| 낙하 | 2 m (6.6 ft.) |
| 레이저 분류 | Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red) |
| 보관 온도 범위 | –40°C to +70°C (–40°F to +158°F) |
| 삼각대 마운트 | UNC ¼"-20 (adapter needed) |
| 습도 [작동 및 저장] | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles |
| 안전 | EN/UL/CSA/PSE 60950-1 |
| 인캡슐레이션 | IP 54 (IEC 60529) |
| 자기장 | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| 작동 온도 범위 | –20°C to +120°C (–4°F to +248°F) |
| 진동 | 2 g (IEC 60068-2-6) |
| 충격 | 25 g (IEC 60068-2-27) |
| 일반 | |
|---|---|
| 자재 | •Polycarbonate + acrylonitrile butadiene styrene (PC-ABS) •Thixomold magnesium •Thermoplastic elastomer (TPE) |
| 포장 | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
| 포장 크기 | 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.) |
