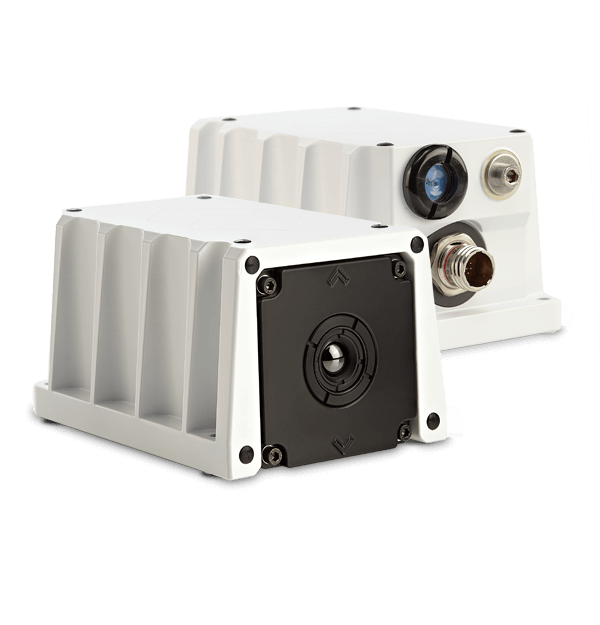

KF6
Thermal Camera for Aerial Firefighting Apparatus
FLIR's new KF6 is the industry's first thermal imager designed and built specifically for aerial apparatus applications. Mountable at the end of a straight stick and onto a ladder bucket, the KF6 provides firefighters a high-angle thermal view of rooftops and other elevated structures, helping them see through thick smoke, more efficiently target the hottest areas, and more strategically direct firefighting efforts.
The FLIR KF6 is the first mountable OEM TIC specifically for aerial
apparatus applications. Providing a high-angle thermal view of rooftops,
upper stories, and other elevated structures, KF6 can help your team see
clearly through smoke and total darkness from an additional strategic
perspective for more effective targeting and situational awareness.
The KF6 can be easily and securely fixed-mounted under or atop aerial platforms and at the end of straight sticks. A single cable with a MIL-C connector provides 10-32 VDC in and composite video out for simple installation.
Featuring 640 × 480 IR resolution and a 69° FOV, bolstered with onboard FSX™ Flexible Scene Enhancement, the KF6 produces vivid thermal images, providing finer detail and greater visibility for easier orientation and structural identification.
사양
| 통신 및 데이터 저장 공간 | |
|---|---|
| 동영상 출력 | Composite video output, NTSC compatible |
| 전원 및 동영상 커넥터 | 13-pin MIL-C-38999, D38999/24FB35PN Mating connector: D38999/26FB35SN |
| 이미징 및 광학 | |
|---|---|
| F-값 | 1.4 |
| 동영상 표준 | PAL |
| 색상 | White and black |
| 스펙트럼 범위 | 7.5–13.5 µm |
| 시야각 (FOV) [시야각 (FOV)] | 69° × 56° |
| 열 감도_NETD | < 100 mK at f/1.4 |
| 이미지 모드 | TI Basic firefighting mode |
| 이미지 주파수 | 30 Hz |
| 적외선 열화상 해상도 | 640 × 480 |
| 초점 | Fixed |
| 탐지기 유형 | Focal plane array, uncooled microbolometer |
| 측정 및 분석 | |
|---|---|
| 대상 온도 범위 | High-gain range: –25 to +150°C (–13 to +302°F) Low-gain range: 0 to +550°C (+32 to +1022°F) |
| 등온선 | Yes |
| 스팟 미터 | 1.0 |
| 온도 유닛 | F° or C° |
| 자동 범위 설정 | Yes |
| 정확도 | ±10°C (±18°F) or ±10% in high gain range |
| 일반 | |
|---|---|
| 무게 | 1.2 ± 0.1 kg (2.6 ± 0.2 lb.) |
| 크기 [L x W x H] | 158 mm × 112 mm × 89 mm (6.2 in. × 4.4 in. × 3.5 in.) |
| 포장 크기 | 247 mm x 175 mm x 175 mm (9.7 in. x 6.9 in. x 6.9 in.) |
| 하우징 소재 | Aluminum |
| 환경 및 인증 | |
|---|---|
| EMC | EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC 47 CFR Part 15 B (emission) ISO7637-2 Road Vehicles – Electrical Disturbances from conduction and coupling – Part 2: Electrical transient conduction along supply lines only. (Immunity) |
| 마운트 장착 | Bottom mounted |
| 보관 온도 범위 | –40 to +70°C (–40 to +158°F) |
| 습도 [작동 및 저장] | IEC 600 68-2-30, 24 hours, 95% relative humidity, 25–40°C (77–104°F) , two cycles |
| 인캡슐레이션 | IP 67 (IEC 605 29) |
| 작동 온도 범위 | –32 to +65°C (–26 to +149°F) |
| 진동 | IEC 600 68-2-6, 0.15 mm 10 Hz to 58 Hz and 2 g 58 to 500 Hz sinusoidal |
| 충격 | IEC 600 68-2-27, 25g peak half sine wave |
| 전력 | |
|---|---|
| 시작 시간 | < 20 seconds |
| 입력 전원 | 10.5–32 V DC ( ISO 7637-2) |
| 전력 소비량 | < 5 W average, when supplied with 28 V DC |
