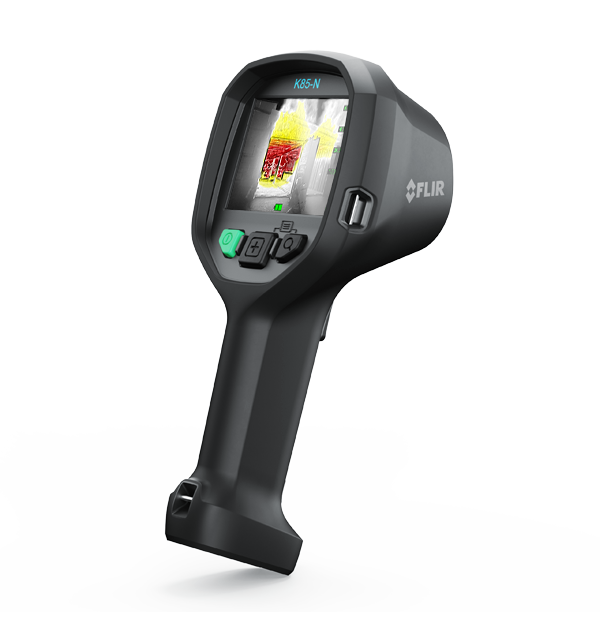

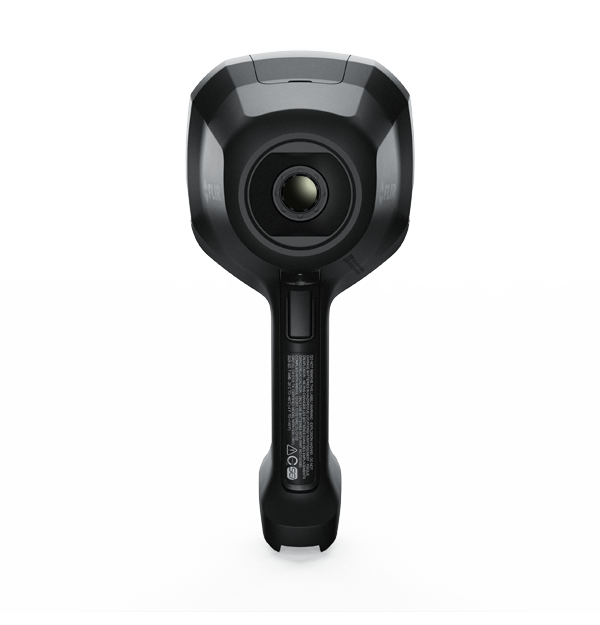

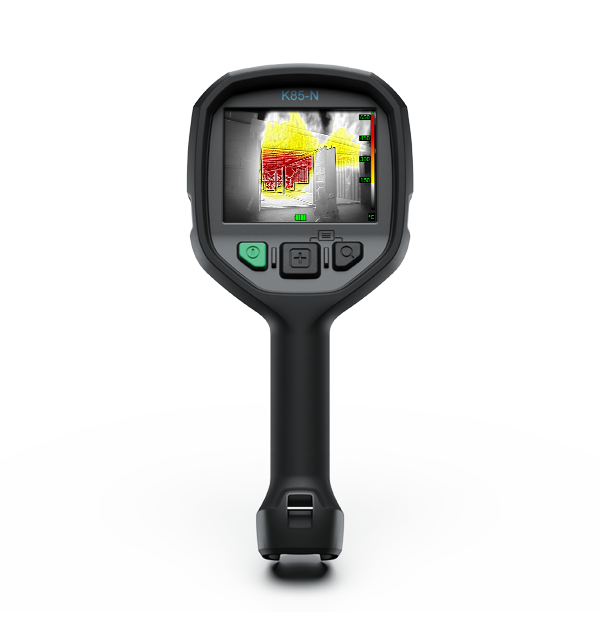

K85-N
NFPA 1930:2025-Certified Firefighting TIC, 640 × 480, App-Enabled
The Flir K85-N gives firefighters clearer vision and greater confidence in smoke-filled, high-heat environments. Fully certified to NFPA 1930:2025, this next-generation TIC combines sharp 640 × 480 resolution, enhanced contrast, and a single-range imaging solution that reveals critical scene detail without switching ranges or losing situational awareness. Purpose-built firefighting modes help crews adapt to changing conditions on the fireground, while improved ergonomics, easier cleaning, and high-clarity zoom support faster, more effective operation. Plus, seamless connectivity with the Flir Responder App extends the camera’s value before, during, and after the mission through camera setup, over-the-air updates, wireless streaming, media handling, reporting, training, and post-incident review.
사양
| 강조 표시됨 | |
|---|---|
| 적외선 해상도 | 640 × 480 |
| 디스플레이 | 4" LCD, 640 × 480, backlit, 60 Hz display frame rate |
| 대상 온도 범위 | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| 이미지 모드 | TI Basic, Search, Detection, High Heat, White Hot |
| 이미징 및 광학 | |
|---|---|
| 대비 최적화 | Digital enhancement, Flexible Scene Enhancement (FSX®) |
| 비 방사 측정(Non_radiometric) 적외선 동영상 녹화 | MPEG4 to internal flash memory |
| 비 방사선 측정(Non_radiometric) 적외선 동영상 스트리밍 | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| 스펙트럼 범위 | 7.5 µm to 14 µm |
| 시야각 (FOV) [시야각 (FOV)] | 53° × 40° |
| 열 감도_NETD | <60 mK |
| 이미지 모드 | TI Basic, Search, Detection, High Heat, White Hot |
| 이미지 주파수 | 30 Hz |
| 적외선 해상도 | 640 × 480 |
| 줌 | 2x digital zoom |
| 탐지기 유형 | Focal plane array (FPA), uncooled microbolometer |
| 피치 | 12 µm |
| 환경 및 인증 | |
|---|---|
| EMC | EN 301 489-1 RED EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480 MHz EN 61000-6-3 800-960 MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, class B (Emission) ICES-003 |
| 규정 준수 | NFPA 1930:2025 |
| 낙하 | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| 보관 온도 범위 | -40°C to 85°C (-40°F to 185°F) |
| 상대 습도 | 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing |
| 습도 [작동 및 저장] | IEC 60068-2-30/24 h 95 |
| 안전 | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| 인캡슐레이션 | IP67 (IEC 60529) |
| 자기장 | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| 작동 온도 범위 | -20°C to 60°C (-4°F to 140°F) 150°C (302°F): 15 min 260°C (500°F): 5 min |
| 진동 | 2 g (IEC 60068-2-6) |
| 충격 | 25 g (IEC 60068-2-27) |
| 전력 | |
|---|---|
| 배터리 용량 | 6.2 Ah, at 20°C to 25°C (68°F to 77°F) |

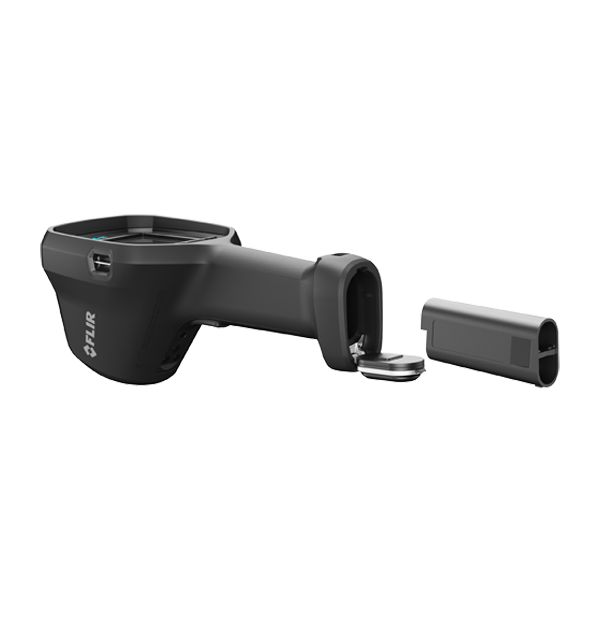

| 배터리 유형 | Li-Ion |
| 배터리 작동 시간 | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| 배터리 전압 | 3.6 V |
| 전원 관리 | Automatic shutdown and sleep mode For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds |
| 충전 시간 | <3 h to capacity enough for 3 h operation |
| 충전 시스템 | Desktop 2-bay charger Optional in-truck charger |
| 충전 온도 | 0°C to 45°C (32°F to 113°F) |
| 측정 및 분석 | |
|---|---|
| 대상 온도 범위 | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| 정확도 | ±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) |
| 일반 | |
|---|---|
| 패키지 포함 내역 | Infrared camera Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| 사용자 인터페이스 | |
|---|---|
| 디스플레이 | 4" LCD, 640 × 480, backlit, 60 Hz display frame rate |
| 통신 및 데이터 저장 공간 | |
|---|---|
| USB | USB-C |
| 이미지 저장 용량 | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
| 인터페이스 | Update via OTA (Wi-Fi using the Flir Responder app) Legacy support for updates from PC and data transfer to and from PC |
| 저장 매체 | Internal flash memory |
| 파일 형식 | Standard JPEG, stored in the camera and on the Flir Responder app |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
