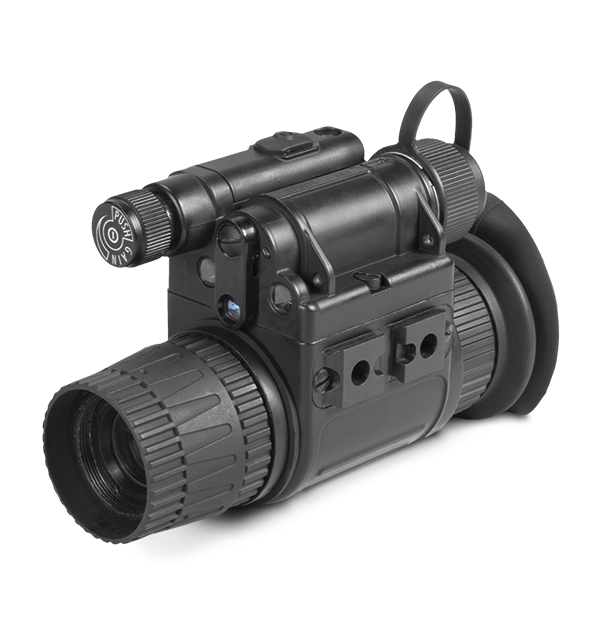

FLIR MNVD-51
51° Multi-Purpose Night Vision Monocular
With a wide 51-degree field of view, the FLIR MNVD-51 offers enhanced situational awareness without moving the optic. Head, helmet, and weapon mounting options allow hands-free operation while a built-in IR illuminator and flood lens improve vision in complete darkness. 40 hours of battery life is possible with a single AA or CR123A battery.
사양
| 강조 표시됨 | |
|---|---|
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | FLAG - Filmless Auto-Gated IIT MG |
| 광음극 유형 | Filmless GaAs |
| 눈동자 거리 [mm] | - |
| 디옵터 조정 | -6 to +2 dpt |
| 렌즈 시스템 | F/1.26; 19mm |
| 배율 | 1x standard (3x, 5x optional) |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 51° |
| 자동 밝기 제어 | No |
| 적외선 조명기 | Detachable Long Range IR and Built-in with pivotal flood lens |
| 초점 범위 | 0.25 m to Infinity |
| 출사동 직경 [mm] | - |
| 해상도 | - |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +50°C (-58°F to +122°F) |
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 40 hours |
| 배터리 잔량 부족 표시등 | Yes (In FOV) |
| 자동 전원 차단 | Yes |
| 전원공급장치 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | - |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | Yes |
| 적외선 표시등 | Yes (In FOV) |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.31 kg (0.7 lbs) |
| 크기(L x W x H) | 109 x 48 x 73 mm (4.1 x 1.9 x 2.8 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | Swing Arm #172, Swing Arm #37, Dual Bridge, Goggle Kit #2, Helmet Mount #4, Dovetail to Weaver Transfer Piece #21, ARMSAIGHT by FLIR Scope Adapter Mount #6, QRM - Quick Release Picatinny Mount Adapter #26/#142, Extended Rail Adapter #85, Universal Camera Adapter #45, Camera Adapter #46, Demist Shield #34, Sacrificial Window #30, Shutter Eye-Guard #82, 3x Afocal Lens Kit (for MNVD-51), 5x Afocal Lens (for MNVD-51), 3x Afocal Lens #22 (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), 5x Afocal Lens (Nyx-14, Nyx-14-Pro, N-14, Nyx-7 Pro), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101 |
| 포함 액세서리 | Packing Box, Soft Carrying Case, Lens Tissue, Quick Start Guide |
액세서리
리소스 및 지원
Datasheet
MNVD 51 Datasheet
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
