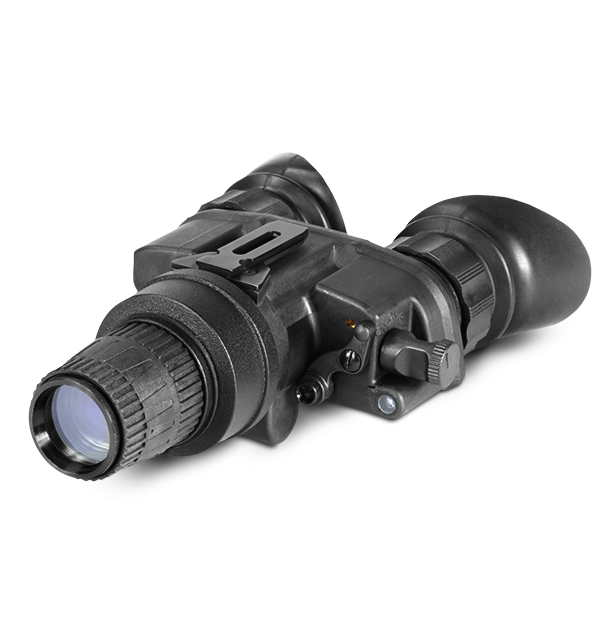

FLIR Nyx-7 Pro
Night Vision Goggles
The FLIR Nyx-7 Pro is an extremely rugged, compact bi-ocular night vision goggle system. High-grade optics and automatic brightness control provide clear nighttime images under the most trying conditions. Included flip-up head mount or optional universal helmet mount allow simple hands-free use while available 3x and 5x magnified lenses convert the Nyx-7 Pro to a long-range optic.
사양
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | Gen 2+ HD (High Definition) |
| 광음극 유형 | Multi-Alkali |
| 눈동자 거리 [mm] | 15 mm |
| 디옵터 조정 | -6 to +2 dpt |
| 렌즈 시스템 | F/1.2; 27 mm |
| 배율 | 1x standard (3x, 5x optional) |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 40° |
| 자동 밝기 제어 | Yes |
| 적외선 조명기 | Yes (built-in with pivotal flood lens) |
| 초점 범위 | 0.25 m to Infinity |
| 출사동 직경 [mm] | 15 mm |
| 해상도 | 55-72 lp/mm |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +70°C (-58°F to +158°F) |
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 60 hours |
| 배터리 잔량 부족 표시등 | Yes (In FOV) |
| 자동 전원 차단 | Yes |
| 전원공급장치 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | - |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | No |
| 적외선 표시등 | Yes (In FOV) |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.49 kg (1.0 lbs) |
| 크기(L x W x H) | 204 × 127 × 61 mm (8.0 × 5.0 × 2.4 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 3x Afocal Lens #22, 5x Afocal Lens, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #59, Helmet Mount #183 (Shroud), Adapter #59, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #59, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Helmet Mount #4, Mil-Standard Hard Shipping/Storage Case #101 |
| 포함 액세서리 | Packing Box, Instruction Manual with Warranty Card, Soft carrying Case, Battery, ARFS4 - Advanced Range Finding Stadia for 4x Lens, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Goggle Kit #2 |
액세서리
리소스 및 지원
Datasheet
NYX7 Pro Datasheet
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
