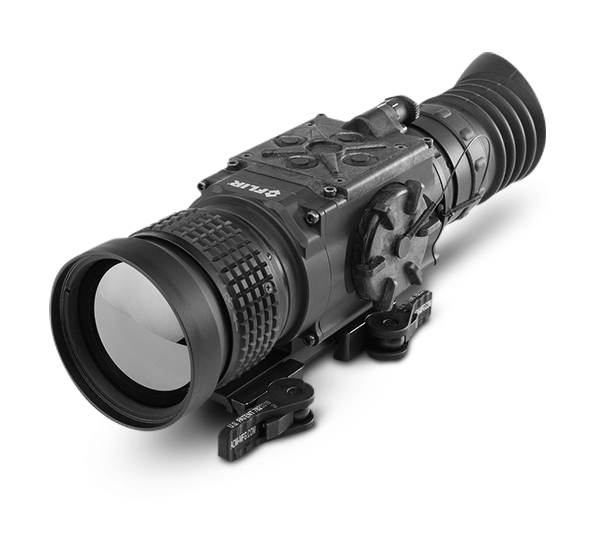

FLIR ThermoSight® PRO PTS536
Thermal Imaging Weapon Sight
Powered by the breakthrough FLIR Boson core, the ThermoSight Pro Series® PTS536 weapon sight sets the standard for thermal detection and classification. Featuring a 12 µm pixel pitch sensor and 50mm lens, the PTS536 delivers brilliant, clean thermal imaging with a focused 4.5° × 3.5° field of view. The entire ThermoSight Pro Series offers an uncompressed video signal, a high definition display, and shot-activated video recording.
사양
| 강조 표시됨 | |
|---|---|
| 광학 배율 | 4x |
| 시야각 (FOV) | 4.5° x 3.5° |
| 센서 및 광학 기기 | |
|---|---|
| 광학 배율 | 4x |
| 눈동자 거리 | 45 mm |
| 디옵터 조정 범위 | -5 to +5 dpt |
| 렌즈 시스템 | 50 mm; F/1.0 |
| 시야각 (FOV) | 4.5° x 3.5° |
| 이미지 처리 | FLIR Proprietary Digital Detail Enhancement™ |
| 조준 방향 조정 형식 | Digitally Controlled |
| 초점 범위 | 10m to infinity |
| 코어 | FLIR 12µm BOSON |
| 탐지기 유형 | 320 x 256 VOx Microbolometer |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -40°C to +60°C (-40°F to +140°F) |
| 작동 온도 | -20°C to +50°C (-4°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 [작동 시] | Up to 4 hr |
| 배터리 유형 | 2 CR123A 3V Lithium batteries |
| 외부 전원 | Through USB-C port (5Vdc) |
| 파일 저장 및 통신 | |
|---|---|
| USB_C 커넥터 | Digital Video Out, Laser Range Finder Connections |
| 내장 메모리 | Up to 2.5 hours of recorded video or up to 1,000 pictures |
| 동영상 출력 | Digital Video |
| UI-UX | |
|---|---|
| 극성 | White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, Outdoor Alert |
| 동영상 재생률 | 60 Hz |
| 디스플레이 | Quad-VGA (1280 x 960) FLCOS |
| 레티클 색상 | Black, White, Red, and Cyan |
| 작동 스위치 | On/ Off/ Standby Mode |
| 제어 패널 버튼 | Configures Operational Settings: Display Brightness Control Image Palette Control Digital Zoom Control Reticle Color Control Reticle Pattern Control Boresighting Adjustment On-Screen Menu Navigation |
| 시스템 개요 | |
|---|---|
| 디지털 줌 | 2x, 4x |
| 레일 위 스코프 축 높이 | 1.65 in (42 mm) |
| 레티클 유형 | Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, Crossdash, and "No Reticle" |
| 무기 마운트 유형 | Picatinny, MIL-STD 1913, and Weaver Rails |
| 줌 | 1×, 2×, 4× |
| 크기 [L x W x H] | 10.2" × 2.7" × 3.3" (259 x 68 x 84 mm) |
| 패키지 포함 내역 | Thermal Weapon Sight, CR123A Battery (2), Battery Cassette, Spare Battery Cassette, USB to USB Type C Cable (3'), Lens Cloth, Quick Start Guide, and Hard Carrying Case |
| 물리적 특성 | |
|---|---|
| 무게 | 0.81 kg (1.78 lbs) |
| 색상 [하우징] | Black |
리소스 및 지원
Datasheet
ThermoSight Pro Datasheet
Tech Note
The Perfect Reticle - Tech Note
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Tech Note
Your Perfect Palette
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
