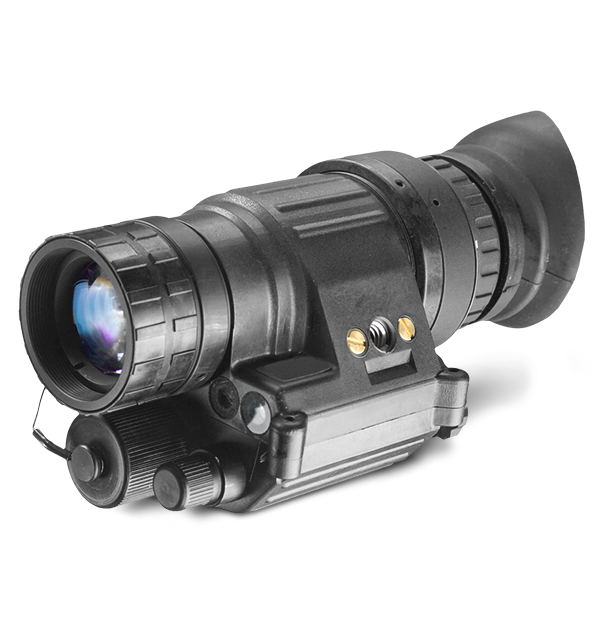

FLIR PVS-14-51
51° Night Vision Monocular
The FLIR PVS-14-51 single-tube night vision system brings a wide 51-degree field of view to the tough, military-trusted AN/PVS-14 housing. Head and helmet mounting promote hands-free operation while a maximized field of view enhances awareness and minimizes necessary movement. Built-in IR illuminator allows clear, covert vision in complete darkness.
Wide-Angle Advantage Meets Battle-Tested Design
51-degree lens provides a 28% increase in scene size over comparable 40-degree models.
Compact AN/PVS-14 housing is a trusted, longstanding night vision favorite of US military and law enforcement professionals.
Maintain a tactical advantage in the toughest lighting conditions with built-in IR illuminator and manual gain control.
사양
| 강조 표시됨 | |
|---|---|
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | FLAG - Filmless Auto-Gated IIT MG |
| 광음극 유형 | Filmless GaAs |
| 눈동자 거리 [mm] | - |
| 디옵터 조정 | -6 to +4 dpt |
| 렌즈 시스템 | F/1.26; 19mm |
| 배율 | 1x standard (3x, 5x optional) |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 51° |
| 자동 밝기 제어 | No |
| 적외선 조명기 | Yes (built-in with pivotal flood lens) |
| 초점 범위 | 0.25 m to Infinity |
| 출사동 직경 [mm] | - |
| 해상도 | - |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +50°C (-58°F to +122°F) |
| 작동 온도 | -40°C to +50°C (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 50 hours |
| 배터리 잔량 부족 표시등 | Yes (In FOV) |
| 자동 전원 차단 | Yes |
| 전원공급장치 | One AA battery |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | - |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | Yes |
| 적외선 표시등 | Yes (In FOV) |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.32 kg (0.7 lbs) |
| 크기(L x W x H) | 158 × 51 × 60 mm (6.2 × 2.0 × 2.4 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101 |
| 포함 액세서리 | Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads |
