단종

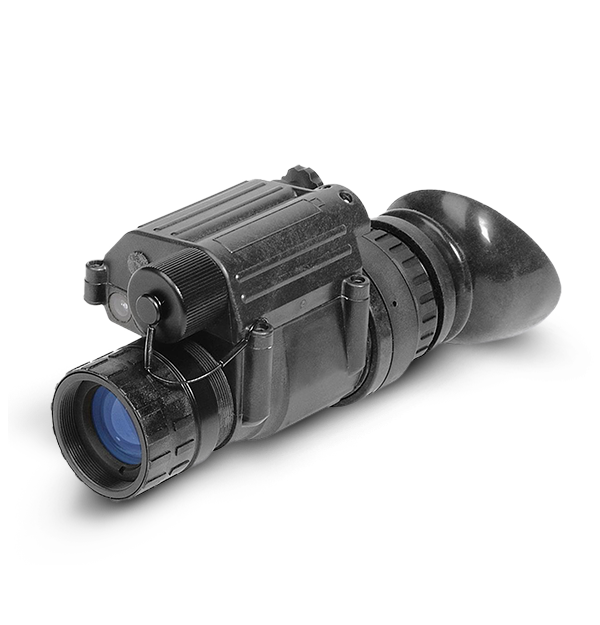

FLIR PVS-14
40° Night Vision Monocular
Built on the framework of United States Military-commissioned AN/PVS-14 night vision units, the FLIR PVS-14 offers enhanced tactical awareness in a classic, battle-tested design. Flexible mounting options and adjustable gain control in a rugged, compact housing showcase why the PVS-14 remains a favorite among military and law enforcement professionals.
The Battle-Tested Standard in Night Vision
The AN/PVS-14 multi-purpose monocular has long been a staple for US military and law enforcement professionals.
Onboard manual gain control and IR illuminator maintain tactical awareness in minimal light conditions.
Head and helmet mounting capability allow simple hands-free use.
사양
| 강조 표시됨 | |
|---|---|
| 작동 온도 | -51°C to +49°C (-59°F to +120°F) |
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | Gen 3 Bravo MG |
| 광음극 유형 | GaAs |
| 눈동자 거리 [mm] | - |
| 디옵터 조정 | -6 to +4 dpt |
| 렌즈 시스템 | F/1.2; 26 mm |
| 배율 | 1x |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 40° |
| 자동 밝기 제어 | Yes |
| 적외선 조명기 | Yes (built-in with flood lens) |
| 초점 범위 | 0.25 m to Infinity |
| 출사동 직경 [mm] | - |
| 해상도 | 57-64 lp/mm |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -51°C to +85°C (-22°F to +185°F) |
| 작동 온도 | -51°C to +49°C (-59°F to +120°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 50 hours |
| 배터리 잔량 부족 표시등 | Yes (In FOV) |
| 자동 전원 차단 | Yes |
| 전원공급장치 | One AA battery |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | - |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | Yes |
| 적외선 표시등 | Yes (In FOV) |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.35 kg (0.77 lbs) |
| 크기(L x W x H) | 114 × 51 × 57 mm (4.5 × 2 × 2.25 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | Weapons Mount #109 (PVS14/6015), XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM-PRO-L Kit: AIM-PRO-L with Adapter Ring #62, XLR-IR850 Detachable X-Long Range Infrared Illuminator, AIM-PRO Kit: AIM-PRO with Adapter Ring #62, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, MICH Helmet Mount Assembly USA #107, Extended Rail Adapter #85, Mil-Standard Hard Shipping/Storage Case #101 |
| 포함 액세서리 | Brow Pads, Helmet/Head Mount Adapter, Head Mount Assembly, Instruction Manual with Warranty Card, Soft carrying Case, Shoulder Strap, Demist Shields, Packing Box, Tethering Cord, 1x AA Batteries, Day Light Filter, Lens Tissue, Sacrificial Window |
