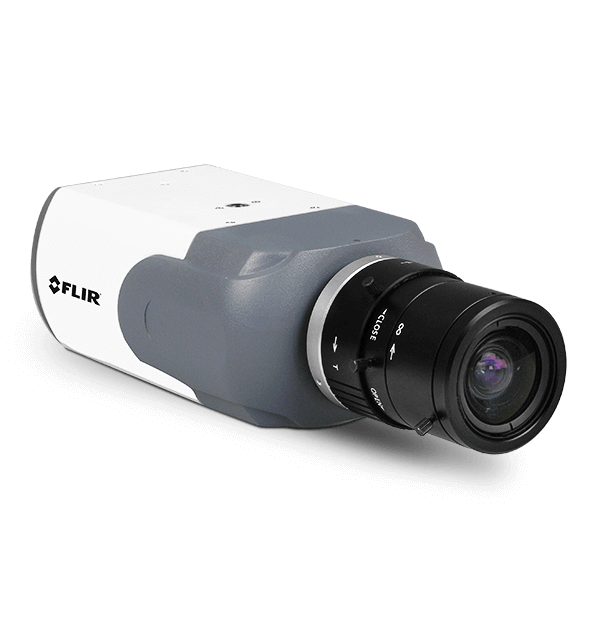

Quasar 1080p Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
Quasar’s high performance broadcast video quality in an HD 1080p fixed camera guarantees frame rates in high motion, complex and low-light scenes found in city surveillance applications, airports, terminals, critical infrastructure sites, campuses and commercial installations.
사양
| 사이버 보안 | |
|---|---|
| 보안 | User account and password protection |
| 일반 | |
|---|---|
| 3D 노이즈 저감 | On / Off - 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| 위변조 감지 | On / Off |
| 주간_야간 모드 | Smart IR / auto / on / off |
| 주사 모드 | Progressive |
| 펌웨어 업그레이드 | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| 프라이버시 구역 | On / Off - 5 zones |
| 측정 및 분석 | |
|---|---|
| 자동 게인 (Gain) 제어 | Auto |
| 시스템 통합 | |
|---|---|
| 구성 | Remote: via web access or supported video management software |
| 네트워크 프로토콜 | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| 쌍방향 오디오 | Full duplex, line / mic in and line out, G.711, G.726 |
| 오디오 연결 | 3.5 mm audio jacks |
| 이더넷 | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| 실화상 카메라 | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| 감도 | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| 광폭 동작 범위 | On / Off - 3 levels |
| 기계적 적외선 차단 필터 | Yes |
| 센서 해상도 | 1920 x 1080 |
| 신호-노이즈 비율 | ≥50 dB |
| 역광 컴프레션 | On / Off |
| 이미지 센서 | 1/2.7" HD 1080 CMOS |
| 적외선is 제어 | DC auto |
| 화이트 밸런스 | Auto / indoor / outdoor |
| 동영상 및 녹화/기록 | |
|---|---|
| SD 카드 기록 | SDHC up to 32GByte |
| 동영상 대역폭 | Configurable between 64Kbps and 8Mbps |
| 동영상 동작 감지 | On / Off - 10 zones |
| 동영상 압축 | Fully compliant multi-stream H.264 main profile + MJPEG |
| 전송률 제어 | CBR/VBR |
| 최대 성능 | H.264 30/25 FPS @ HD1080 + 30/25 FPS @ D1 or 30+30 / 25+25 @ HD720 |
| 해상도 범위 | Scalable from CIF to HD1080 (1920x1080) |
리소스 및 지원
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Quasar Gen 1 - 20161103
Software Download
FLIR DNA Software - Version 2.3.0.35
Firmware Release Note
FLIR Quasar Gen I Firmware Release Notes Version dt20161103NSA
Tech Note
FLIR Best Practices Guide for Perimeter Security Applications
User Manual
FLIR Cyber Hardening Guide
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
