Si2a-PD

Fixed-Mount Acoustic Imaging Camera for Continuous Monitoring of Partial Discharge Detection

Product view 1

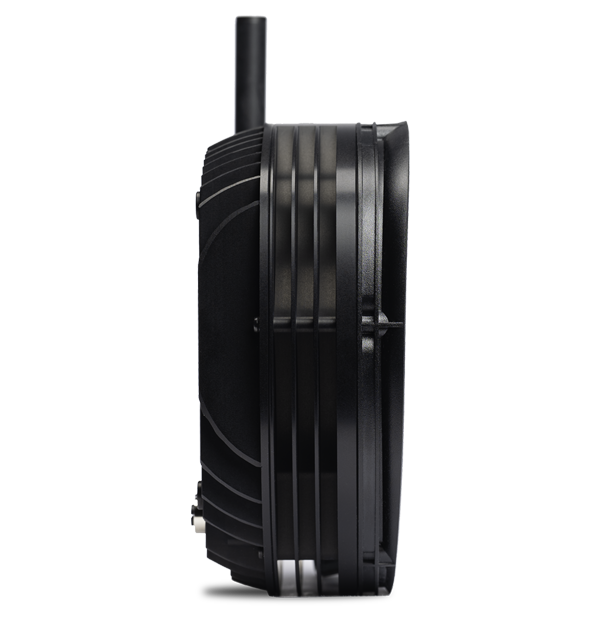

Product view 2

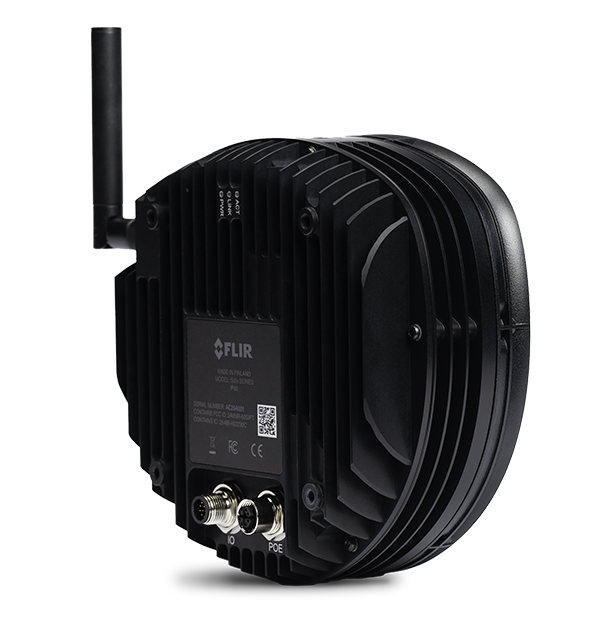

Product view 3

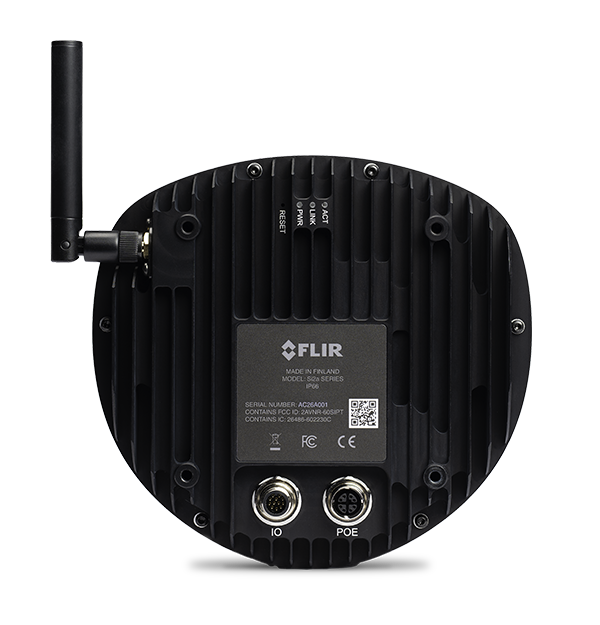

Product view 4

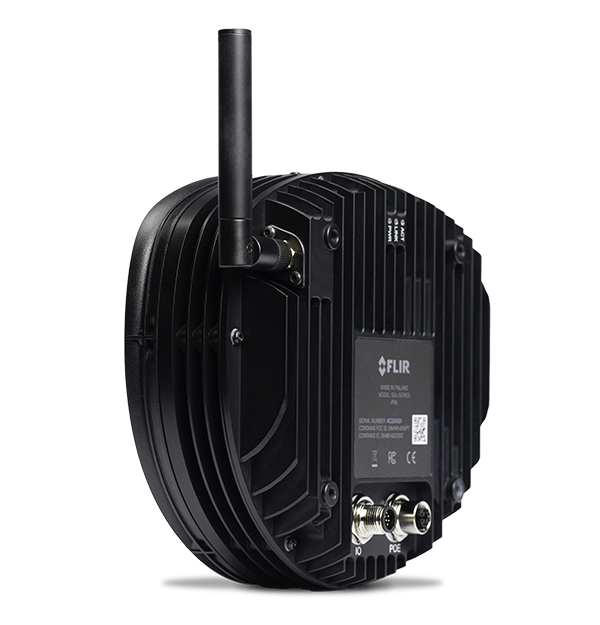

Product view 5

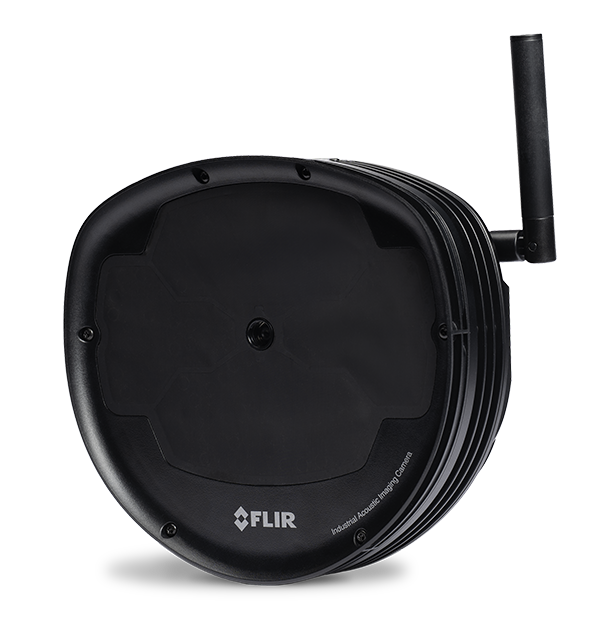

Product view 6

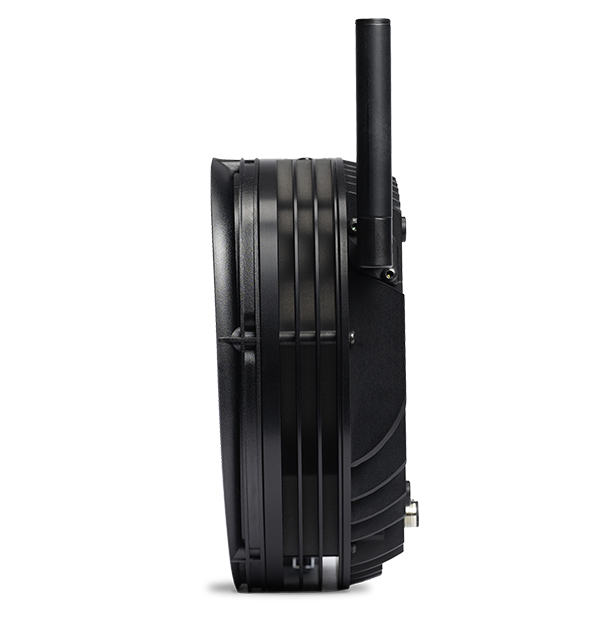

Product view 7

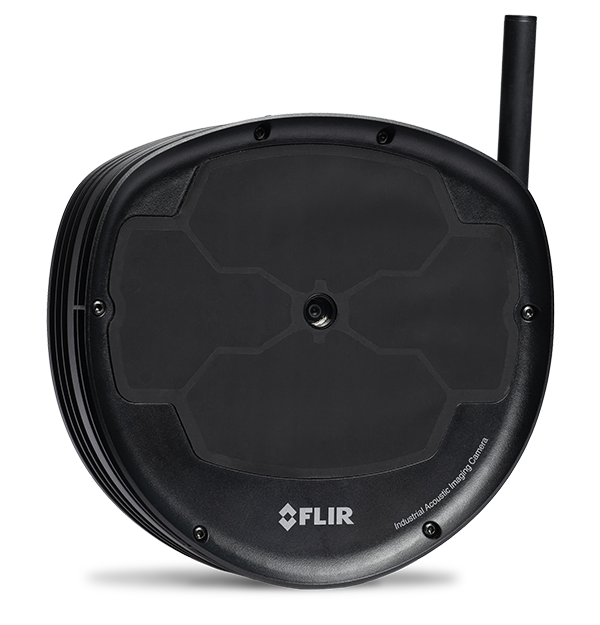

Product view 8

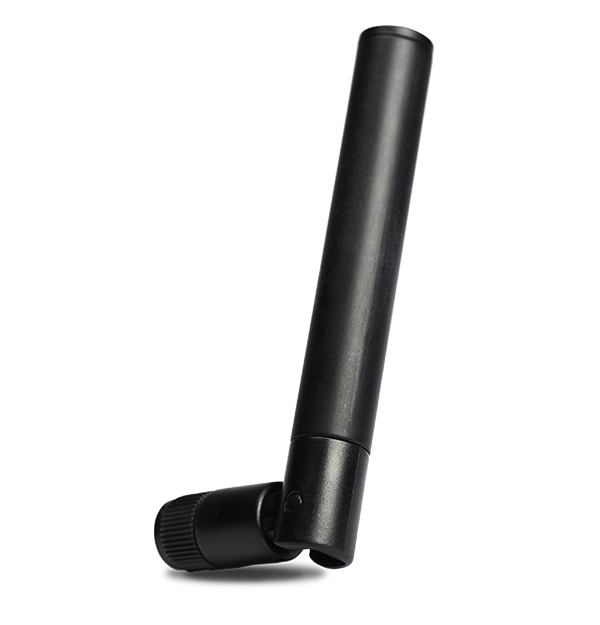

Product view 9

The Flir Si2a-PD keeps a constant listen on your most critical electrical assets—detecting, locating, and assessing partial discharge, corona, and arcing early, from up to 200 m (656 ft) away, so you can keep teams out of hazardous areas and prevent faults from turning into outages, incidents, or costly downtime. AI-enhanced detection and analysis turns complex signals into clear, actionable insight with minimal intervention, while its IP66-rated, VESA-mountable design makes permanent installation simple in harsh environments and easy to integrate into your wider data systems—so your switchgear, substations, and GIS stay safer, stronger, and continuously operational.

Provides continuous 24/7 condition monitoring, enabling early detection of partial discharge (PD), corona, arcing, and other electrical anomalies to help prevent unplanned outages and improve operational safety.
Detects, locates, classifies, and assesses PD faults from distances of up to 200 m (656 ft), supporting safe inspections, featuring an IP66 with VESA mounting options for reliable, flexible installations outside hazardous zones and in harsh industrial environments.
AI enhanced detection and analysis that delivers accurate results with minimal operator intervention and enables enterprise ready system integration and data management.

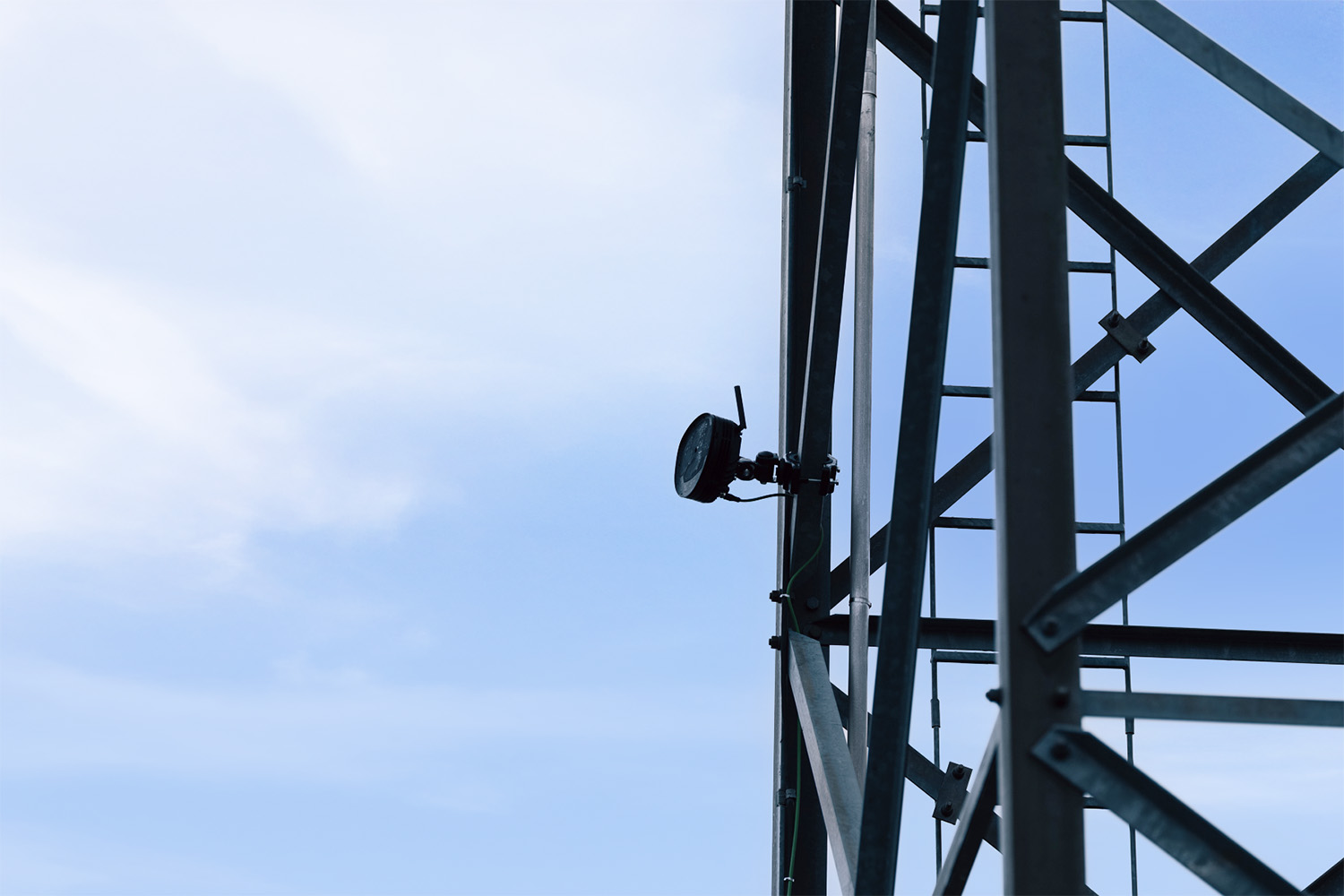

Product showcase image

사양

강조 표시됨
음향 측정 124 low-noise MEMS microphones, real-time sound visualization
심각도 평가 Automatic AI-based severity assessment including recommended actions
거리 From 0.3 m (1.0 ft) up to 200 m (656 ft)
이미징 및 광학
동영상 프레임률 Streaming: 15 fps;
Snapshots: 30 fps
디지털 카메라 12 MP Color
비디오 이미지 해상도 960 × 540 streaming;
16:9 aspect ratio
시야각 (FOV) [시야각 (FOV)] 75° diagonal
측정 및 분석
Able to Quantify Surface or Internal Discharge, Positive and Negative Corona, Negative Corona, Floating Discharge
Detection Threshold 20 kHz: -19.5 dB;
35 kHz: -11.2 dB;
50 kHz: -9.8 dB;
80 kHz: 12.2 dB;
100 kHz: 22.8 dB
거리 From 0.3 m (1.0 ft) up to 200 m (656 ft)
대역폭 2 kHz to 130 kHz
심각도 평가 Automatic AI-based severity assessment including recommended actions
음향 측정 124 low-noise MEMS microphones, real-time sound visualization

리소스 및 지원

Datasheet

Flir Si2a-PD 데이터시트

다운로드

FAQ

Flir Si2a-PD 자주 묻는 질문

다운로드

Value Sheets

Flir_Si2a-PD_sales_sheet_portrait_26-0080-INS_A4-FLIR_InDesign-ko-KR-hd

다운로드

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
