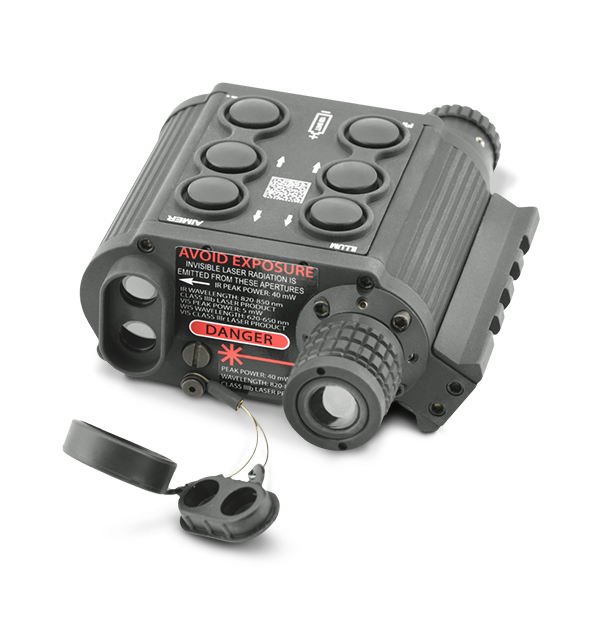

FLIR T-MAIM
Multispectral Aiming/Illumination Module
The FLIR T-MAIM is a multi-laser aiming system equipped with collimated visible and near-IR lasers. Built-in IR illuminator and near-IR aiming laser provide covert tactical precision when paired with night vision devices while manually-controlled pulse mode prevents confusion among multiple users. 256 discrete power intervals allow user-customization and included safety-mode tactical remote ensures appropriate laser intensity during training exercises.
Undeniably Powerful, Completely Customizable
Co-boresighted rapid target acquisition lasers ensure consistency when switching between visible-light and night vision.
Safety remote temporarily inhibits laser power during training while pulse mode allows multiple users to reliably identify their sight in crowded environments.
Built-In IR illuminator, flashlight mount, and rugged waterproof housing work with other equipment to provide the best tactical awareness in grueling conditions.
사양
| 센서 및 광학 기기 | |
|---|---|
| 레드 도트 활용 가능 거리 | >25 m (in direct sunlight) |
| 발산 레드 도트 | 0.8 mRad |
| 발산 적외선 도트 | <0.5 mRad |
| 발산 적외선 조명기 | 1-108 mRad |
| 적외선 도트 활용 가능 거리 | >200 m (low) / 2000 m (high) |
| 적외선 조명기 활용 가능 거리 | >100 (low) / 2000 m (high) |
| 파장 레드 도트 | 620-650 nm |
| 파장 적외선 도트 | 820-850 nm |
| 파장 적외선 조명기 | 820-850 nm |
| 환경 및 승인 | |
|---|---|
| 몰입 | Waterproof 20 meters for one hour |
| 전원 | |
|---|---|
| 배터리 사용 시간 | >10 hours in near-IR Aim Mode |
| 전원공급장치 | One CR123A 3.0V DC Lithium Battery |
| 크기 출력 전원 레드 도트 | 4 mW (visible) / 5 mW (Peak) |
| 크기 출력 전원 적외선 도트 | 100 µW (low) / 25 mW (high) 40mW (Peak) |
| 크기 출력 전원 적외선 조명기 | 500 µW (low) / 25 mW (high) 40 mW (Peak) |
| 시스템 개요 | |
|---|---|
| 무기 마운트 유형 | MIL-STD-1913 |
| 보증 | 2 Years |
| 물리적 특성 | |
|---|---|
| 제품 무게 | 0.29 kg (0.63 lbs) |
| 크기(L x W x H) | 105 × 81 × 43 mm (4.2 × 3.2 × 1.7 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | - |
| 포함 액세서리 | Packing Box, Soft Carrying Case, One Lithium Battery CR123ALens Tissue, Instruction Manual with Warranty Card, Remote Switch Assembly, SAFETY INTERLOCK (Class 1) - BLUE, Remote Switch Assembly, Tactical Full Access - BLACK |
