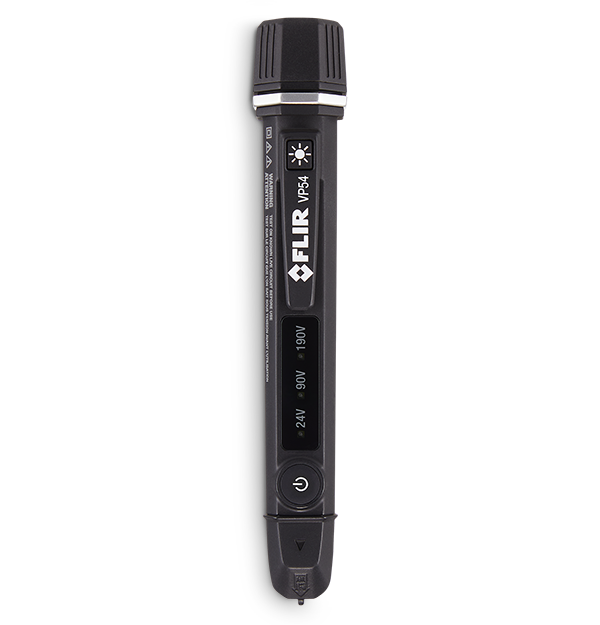

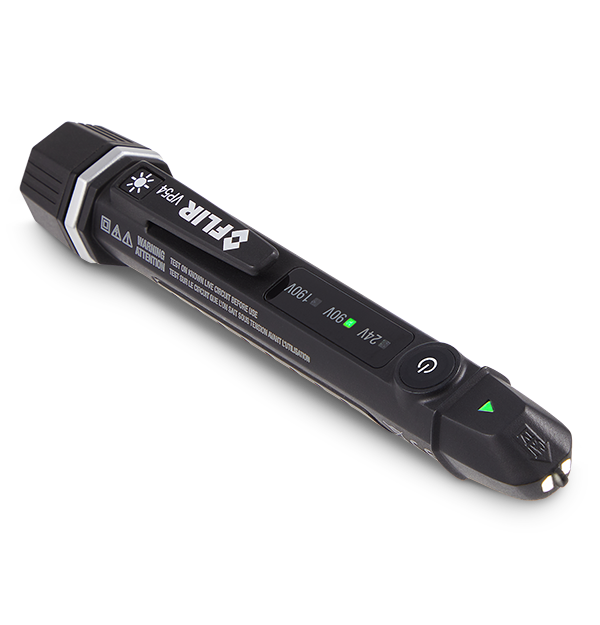

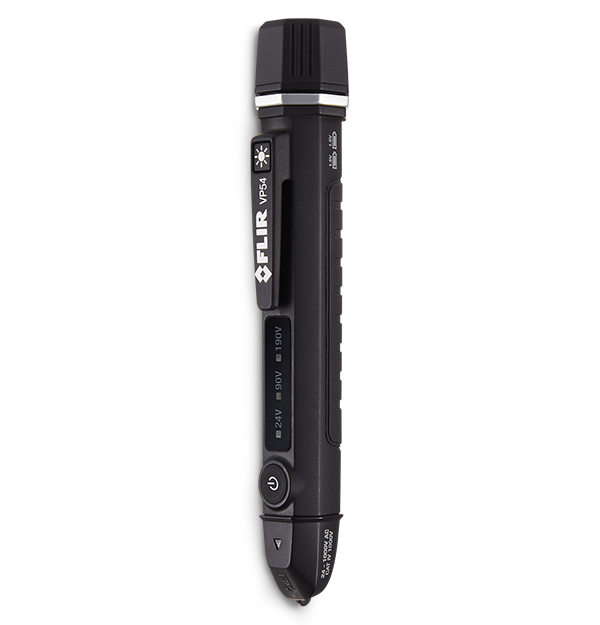

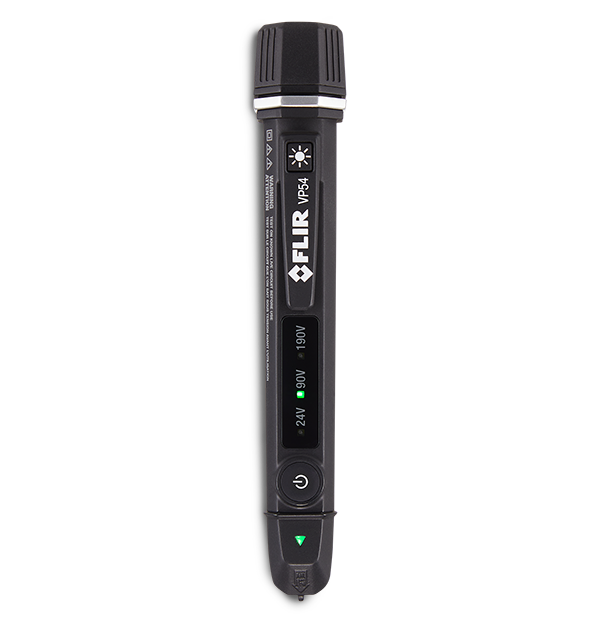

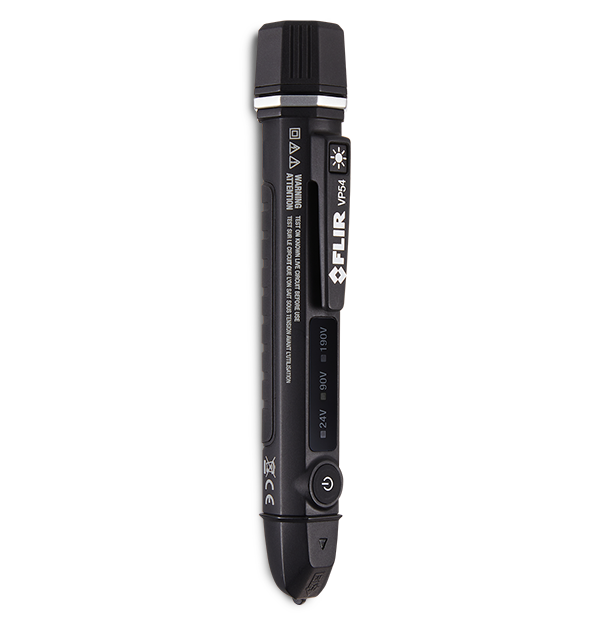

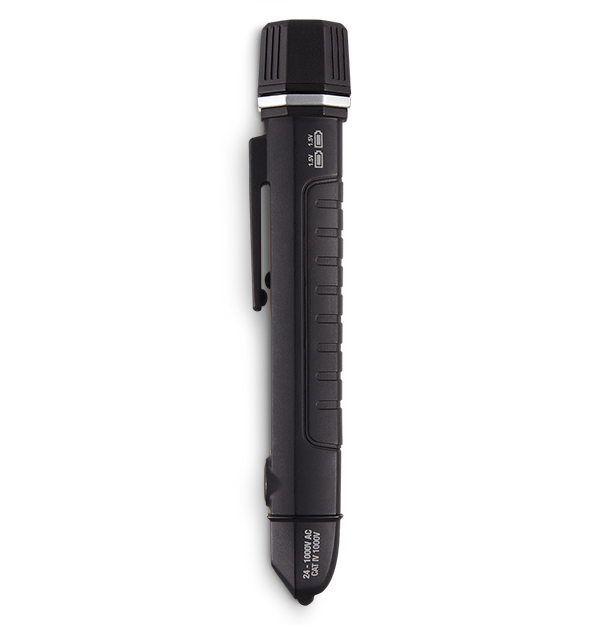

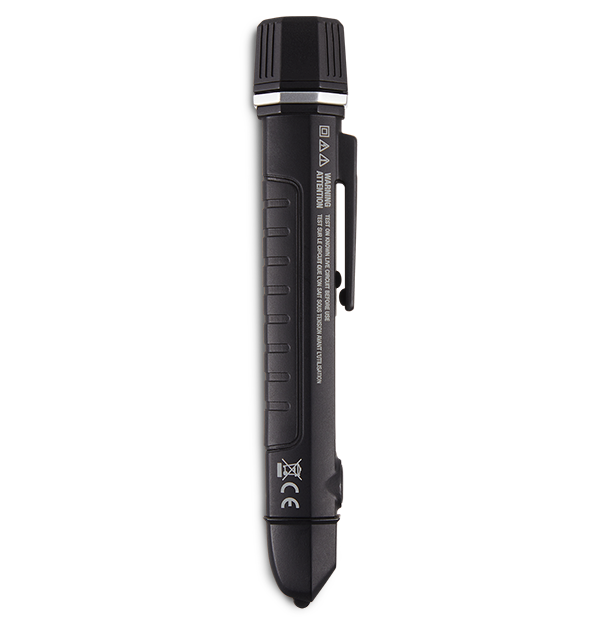

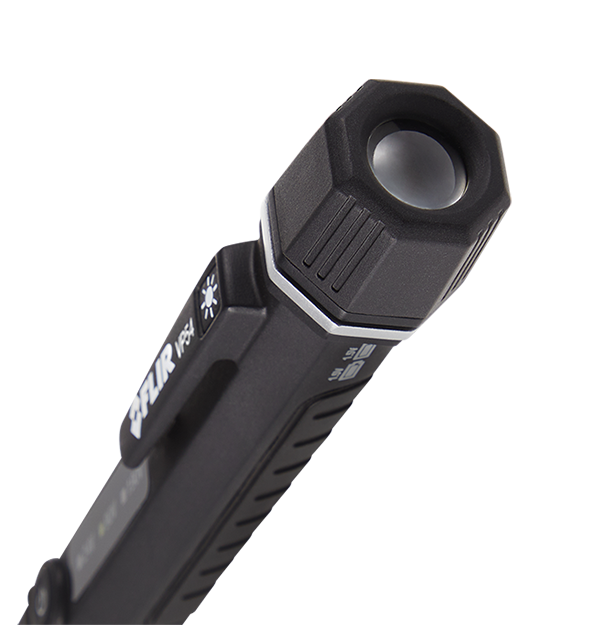

VP54
Triple Alarm CAT IV Non-Contact Voltage Detector with Flashlight

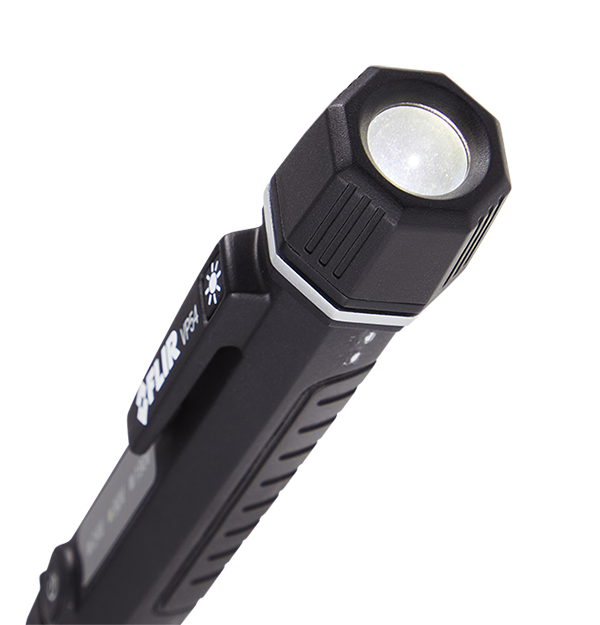

The Flir VP54 is a rugged, CAT IV-rated non-contact voltage detector designed for reliable, everyday electrical testing. Equipped with bright LED illumination and multiple alert types—including visual, vibration, and audible alarms—it makes identifying live voltage quick and intuitive in any environment. Use the VP54 to verify energized circuits before starting work, detect voltage through insulation, locate live wires in panels, switches, and outlets, or trace circuits with confidence. Built with an ergonomic, drop-tested design, it’s a dependable tool for professionals working across residential, commercial, and industrial applications.
사양
| 강조 표시됨 | |
|---|---|
| 알람 통보 | Sound, Flashing LED, Vibration |
| 손전등 | Yes |
| 팁 조명 | Yes |
| 낙하 검사 | 3 m (9.8 ft) |
| 구분 등급 | CAT IV-1000 V |
| 인증 | CE, ETL |
| 보증 | Limited 3-year |
| 측정 및 분석 | |
|---|---|
| AC 전압 | 24 to 1000 V AC (default, solid green light) 90 to 1000 V AC (default, solid green light) 190 to 1000 V AC (default, solid green light) |
| 고감도 모드 (HSM) | 24 to 1000 V AC (default, solid green light) |
| 구분 등급 | CAT IV-1000 V |
| 주파수 범위 | 45 to 65 Hz |
| 환경 및 인증 | |
|---|---|
| 낙하 검사 | 3 m (9.8 ft) |
| 보관 온도 | -20°C to 60°C (-4°F to 140°F) |
| 보증 | Limited 3-year |
| 인증 | CE, ETL |
| 작동 온도 | -10°C to 50°C (14°F to 122°F) |
| 일반 | |
|---|---|
| 손전등 | Yes |
| 알람 통보 | Sound, Flashing LED, Vibration |
| 크기(L x W x H) | 163 × 29.2 × 26.5 mm (6.4 × 1.15 × 1 in) |
| 팁 조명 | Yes |
| 전력 | |
|---|---|
| 배터리 사용 시간 | ~5 hours continuous (flashlight off) |
| 소요 전력 | 2 × AAA alkaline batteries |
