단종

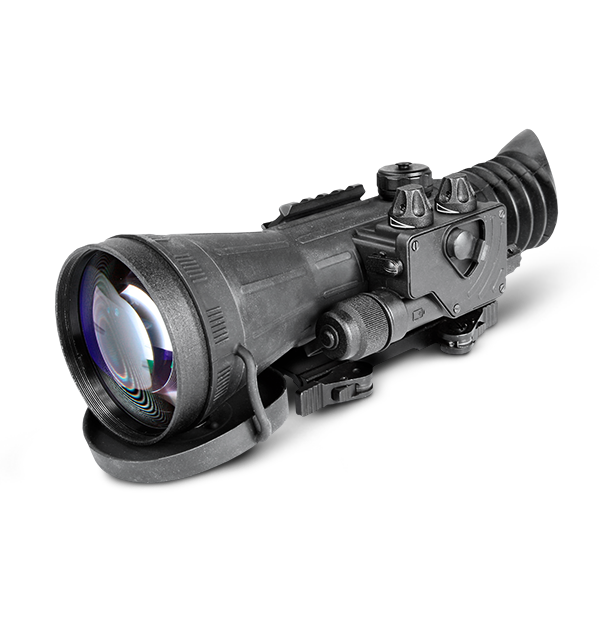

FLIR Vulcan 4.5x
Night Vision Riflescope
Available in a wide array of high-performance image intensifiers, the FLIR Vulcan 4.5x riflescope offers impeccable vision downrange in minimal light conditions. Manual focus, gain, windage, and elevation adjustments give the marksman complete control for precise, repeatable shot placement. Included detachable XLR IR illuminator mounts on a built-in tactical rail and enhances image clarity in challenging conditions.
Fine-Tuned Tactical Night Vision
User-modified image focus, gain, windage, elevation, and reticle controls allow minute adjustments for consistent shot placement.
Quick-release Picatinny/Weaver mounting, multicoated optics, and a rugged shock protected housing ensure simple operation and durability.
Included wireless remote control and extra long-range IR illuminator improve device ease-of-use and limited-light performance.
사양
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | Gen 2+ QS ("Quick Silver" White Phosphor) MG |
| 광음극 유형 | Multi-Alkali |
| 눈동자 거리 [mm] | 45 mm |
| 디옵터 조정 | ±4 diopter |
| 렌즈 시스템 | F/1.54; 108 mm |
| 배율 | 4.5x |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 9° |
| 자동 밝기 제어 | Yes |
| 적외선 조명기 | Detachable Long Range IR |
| 초점 범위 | 10 m to Infinity |
| 출사동 직경 [mm] | 7 mm |
| 해상도 | 47-54 lp/mm |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +70°С (-58°F to +158°F) |
| 작동 온도 | -40°C to +50°С (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 60 hours |
| 배터리 잔량 부족 표시등 | Yes (In FOV) |
| 자동 전원 차단 | Yes |
| 전원공급장치 | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | Wireless |
| UI-UX | |
|---|---|
| 레티클 색상 | Red |
| 수동 게인 (Gain) 제어 | Yes |
| 적외선 표시등 | No |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | - |
| 레티클 유형 | Mil-dot |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | 1/2 MOA |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 0.97 kg (2.1 lbs) |
| 크기(L x W x H) | 277 × 99 × 93 mm (10.9×3.9×3.7 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | Mil-Standard Hard Shipping/Storage Case #101, Extended Rail Adapter #85, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam |
| 포함 액세서리 | XLR-IR850 Detachable X-Long Range Infrared Illuminator, Battery adapter CR123A 3V / AA 1.5V, Battery, Soft carrying Case, Instruction Manual with Warranty Card, AWReC (Advanced Wireless Remote Control) #94, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Packing Box, Lens Tissue |
