IP67-Gehäuse für Baureihe Axxx (T912366)
Schutzgehäuse für Flir A400/A500/A700 Modelle
3 200,00 € ex. VAT

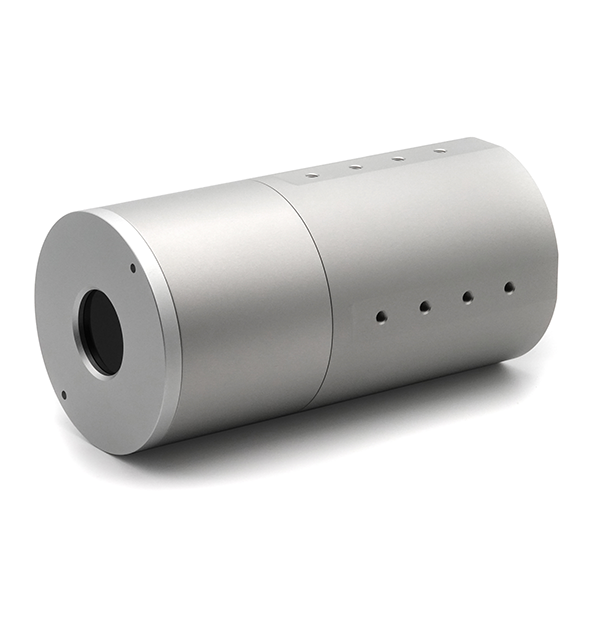

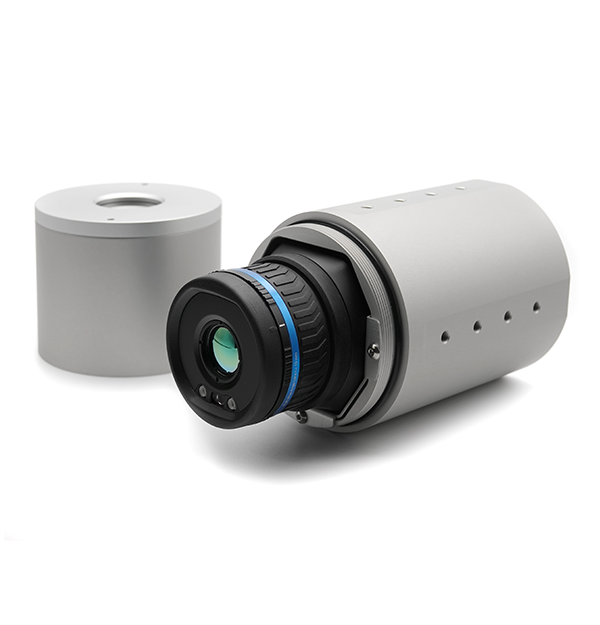

Dieses Schutzgehäuse aus Aluminium mit IP67-rated wurde speziell für die Baureihe Flir Axxx entwickelt. Die Kameragenauigkeit innerhalb des Schutzgehäuses bleibt aufgrund der proprietären radiometrischen Formeln von Flir innerhalb der Standardspezifikationen. Zu den kompatiblen Zubehörteilen gehören Kühlblock/Jacke, Sonnenblende und zahlreiche Montageoptionen.
Hinweis: Das Germanium-Fenster blockiert das visuelle Bild der Kamera.
The window, upgraded
A better window. The same part number.
The IP67 housings now ship with a chalcogenide-glass IR window—equivalent optics, the same hardened coating, and a supply chain you can schedule around.
Equivalent optics, verified
88–90% transmission across the 7–14 µm band, with radiometric accuracy unchanged. Confirmed in testing against the germanium reference window.
Stable as temperatures climb
A low thermo-optic coefficient keeps optical properties consistent—the same material class automotive thermal cameras qualify from -40°C to 85°C (-40°F to 185°F).
Hardened like before
The same AR + DLC diamond-like-carbon coating as the previous window, meeting MIL-spec abrasion, humidity, and salt-spray standards.
Supply you can plan on
Moves the window off constrained germanium supply—protecting availability and the delivery dates behind your camera order.
Beat the Heat
One housing platform. Ambient operation to 90°C.
Start with the housing alone, then add cooling jackets and blocks as conditions demand—the same camera keeps working as ambient climbs.
Extended Operation with Cooling
Ambient temperature → housing configuration (IP67 aluminum)
| -20°C to 50°C (-4°F to 122°F) | Housing as-is | No cooling accessories required |
| 50°C to 55°C (122°F to 131°F) | 1 cooling jacket | Jacket fitted on one side |
| 55°C to 60°C (131°F to 140°F) | 1 jacket + air | Air-fed jacket on one side |
| 60°C to 70°C (140°F to 158°F) | 2 jackets + air | Air-fed jackets, both sides |
| 70°C to 90°C (158°F to 194°F) | 4 blocks + air | Air-fed cooling on every side |
Zubehör
Ressourcen und Support
Datasheet
FLIR Axx IP67/IP69k Gehäuse Datenblatt
Datasheet
FLIR Axx IP67/IP69k Housing Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
