Discontinued

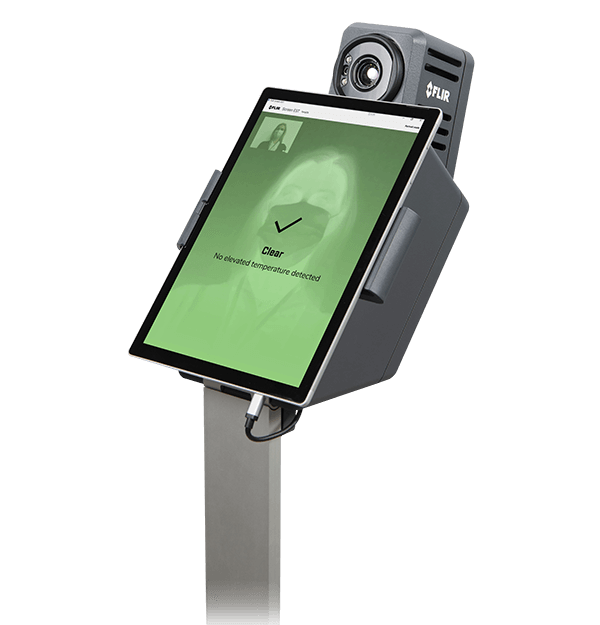

FLIR EST™ Kiosk
Skin Temperature Screening Solution
Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.
Faster, Easier Skin Temperature Screening
Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.
Automatically targets the inner canthus for fast, accurate screening.
Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.
仕様
| Highlighted | |
|---|---|
| デジタル入出力コネクタータイプ | M12 12-pin A-coded, Male (shared with external power) |
| デジタル出力目的 | As function of alarm, output to external device, for example when the screening alarm is triggered |
| デジタル出力 | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| エンコーディング | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| イーサネットインターフェース | Wired, Wi-Fi |
| WiFi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| F値 | 1.3 |
| 画像周波数 | |
| カメラ周波数 | 30 Hz |
| 解像度 | |
| 温度分解能_NETD | <40 mK at 30°C (86°F) |
| 精度 | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| 通信とデータ保存 | |
|---|---|
| WiFi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| イーサネット | Control, result, image, and power |
| イーサネットインターフェース | Wired, Wi-Fi |
| イーサネットコネクタータイプ | M12 8-pin X-coded, Female; RP-SMA, Female |
| イーサネットタイプ | 1000 Mbps |
| イーサネット規格 | IEEE 802.3 |
| イーサネット通信 | TCP/IP socket-based FLIR proprietary |
| エンコーディング | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| デジタル入出力アイソレーション電圧 | 500 VRMS |
| デジタル入出力コネクタータイプ | M12 12-pin A-coded, Male (shared with external power) |
| デジタル出力 | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| デジタル出力目的 | As function of alarm, output to external device, for example when the screening alarm is triggered |
| イメージングとレンズ | |
|---|---|
| F値 | 1.3 |
| オーバーレイ | Video stream 0 – With/Without; Video stream 1 – No |
| カメラ周波数 | 30 Hz |
| コントラスト強調 | FSX® / Histogram equalization (IR only) |
| ストリーミング解像度 | Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels |
| スペクトル範囲 | 7.5–14 µm |
| ビデオストリーミング | Bit rate set through camera web |
| ピクセル形式 | Video stream – YUV411; Radiometric stream – MONO 16 |
| レンズ識別 | Automatic |
| 最小焦点距離 | 0.15 m (0.49 ft) |
| 検知器間隔 | 17 µm |
| 温度分解能_NETD | <40 mK at 30°C (86°F) |
| 焦点 | One-shot contrast, motorized, manual |
| 焦点距離 | 17 mm (0.67 in) |
| 焦点面アレイ［FPA］ | Uncooled microbolometer |
| 画像ソース | Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR |
| 画像周波数 | |
| 空間分解能［IFOV］ | 0.90 mrad/pixel |
| 視野角［FOV］ | 24° × 18° |
| 赤外線解像度 | 464 × 348 |
| 測定解析 | |
|---|---|
| 対象物温度範囲 | 15°C to 45°C (59°F to 113°F) |
| 精度 | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| 一般仕様 | |
|---|---|
| サイズ［L×W×H］ | 360 × 270 × 1300 mm (14 × 11 × 51.2 in) |
| 付属品リスト | Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation |
| 重量 | 8.3 kg (18 lb.) |
| 環境と認定 | |
|---|---|
| 保証 | http://www.flir.com/warranty/ |
| 電源 | |
|---|---|
| 外部電圧 | Allowed range 18–56 V DC |
| 外部電源運転 | 24/48 V DC 8 W max |
| 消費電力 | 7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical |
| 電源接続 | Camera: M12 12-pin A-coded, Male (shared with Digital I/O) |
| ユーザーインターフェース | |
|---|---|
| ウェブインターフェース | Yes |
