MIX™ A-Series Starter Kit
Visible and Infrared Starter Kit for University and Commercial R&D

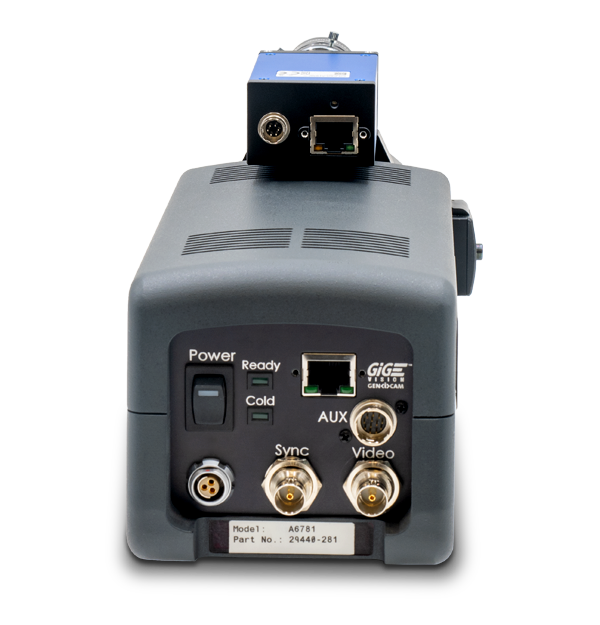

Engineered for researchers and engineers at the forefront of discovery, the MIX Starter Kit for A-Series infrared cameras seamlessly blends infrared and visible light imagery into a single, synchronized data file. With highly accurate spatial and temporal alignment, this kit eliminates the guesswork of traditional thermal analysis, allowing users to instantly correlate heat patterns with structural details. Ideal for university and commercial R&D, it delivers clear, intuitive thermal insights for materials research, battery testing, and more.
With FLIR MIX, you don’t just see more—you see everything.
仕様
| Highlighted | |
|---|---|
| 検知器解像度 | 2448 × 2048 (Visible Camera) |
| ピクセルピッチ | 2.74 µm (Visible Camera) |
| 検知器タイプ | Area CMOS (Visible Camera) |
| フレームレート［全画面］ | 122 Hz (Visible Camera) |
| 積分時間 | 5 µs to 30 seconds |
| イメージングとレンズ | |
|---|---|
| サブウィンドウモード | Pixel binning, decimation, ROI |
| デジタルデータストリーミング | Gigabit Ethernet 5 Gbps / 2.5 Gbps / 1 Gbps (GigE Vision 2.0) |
| ピクセルピッチ | 2.74 µm (Visible Camera) |
| フレームレート［全画面］ | 122 Hz (Visible Camera) |
| レンズ | 25 mm 1/1.8” lens |
| レンズインターフェース | C-mount |
| 検知器タイプ | Area CMOS (Visible Camera) |
| 検知器解像度 | 2448 × 2048 (Visible Camera) |
| 積分時間 | 5 µs to 30 seconds |
| 通信とデータ保存 | |
|---|---|
| インターフェース | Connection interface (to camera): 10 G Switch (connects infrared + visible cameras and computer) Computer interface: Ethernet (Computer not included) |
| トリガーモード | Software trigger, hardware trigger, action command, PTP |
| 一般仕様 | |
|---|---|

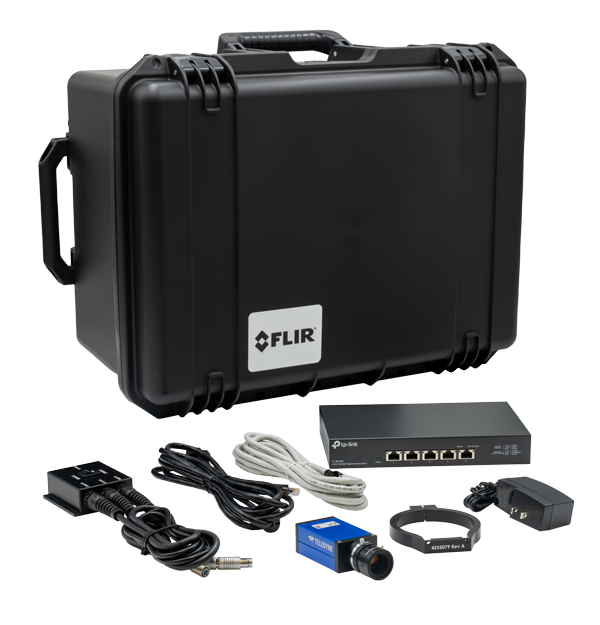

| 付属品リスト | Visible Camera, 10 G Switch, Cat 6 Ethernet Cables, A-Camera Visible Camera Mount, Research Studio Pro 1-Year License Card, Research Studio MIX Toolkit (perpetual lic.), Tamron 25 mm 1/1.8” C-mount Lens, Power/Sync Cable, Hard Case |
資料とサポート
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
