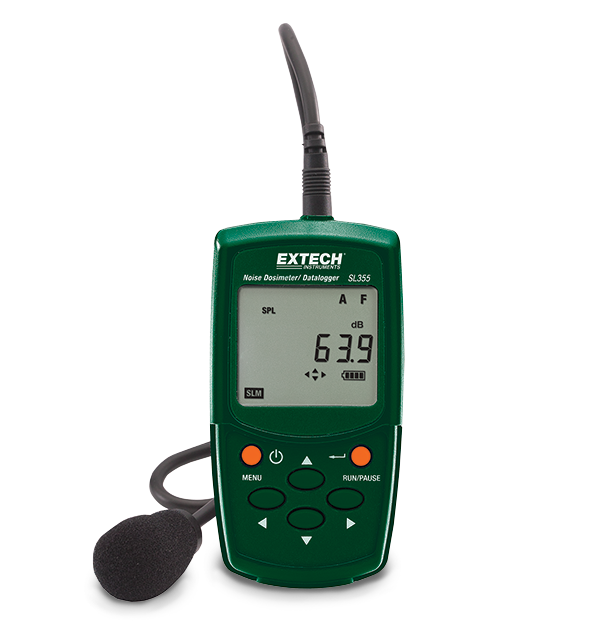

Extech SL355
Personal Noise Dosimeter/Datalogger
The Extech SL355 is a compact, lightweight Noise Dosimeter designed to test exposure and provide surveys for compliance with OSHA, MSHA, DOD, ACGIH, and ISO standards. Featuring a USB interface and Windows-compatible software to control setup and retrieve stored events or analyze measurements, this dosimeter provides adjustable criterion level, exchange rate, and threshold. It can also measure frequency weighted noise exposure and peak sound level simultaneously. Comes with belt clip, clip on 12.7 mm (0.5 in) microphone with 0.8 m (2.6 ft) cable, 3 AAA batteries, mini screwdriver carrying case, PC software, USB cable, and user manual.
仕様
| 一般仕様 | |
|---|---|
| Criterion | 80, 84, 85 or 90dB |
| Exchange Rate | 3, 4, 5 or 6 dB |
| High Level | 115dB |
| Memory | 20 surveys |
| Microphone | 1/2 inch electret condenser with 31" cable |
| Peak | 130dB (for 60-130dB range); 140dB (for 70-140dB range) |
| Response Time | Fast or Slow |
| Sound Range [dB] | A/C Weighting: 60-130dB and 70-140dB; C or Z (Linear) Peak: 93-133dB (for 60-130dB range); 103-143dB (for 70-140dB range) |
| Threshold | 70-90 (1db steps) |
| 追加の詳細 | |
|---|---|
| Certifications | CE |
| Dimensions | 3.8 × 2 × 1.4" (97 × 51 × 35mm) |
| Display | LCD 0.01-9999% |
| Power | 3 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 4.2oz (120g) incl.batteries |
Resources & Support
注：ソフトウェアまたはファームウェアをダウンロードするには、ログインする必要があります。ログインするか、アカウントを作成します。
Software Download
Extech SL355 Software
Datasheet
Extech SL355 Datasheet
Datasheet
Extech SL355-KIT-3 Datasheet
User Manual
Extech SL355 User Manual
Certification
Extech SL355 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
