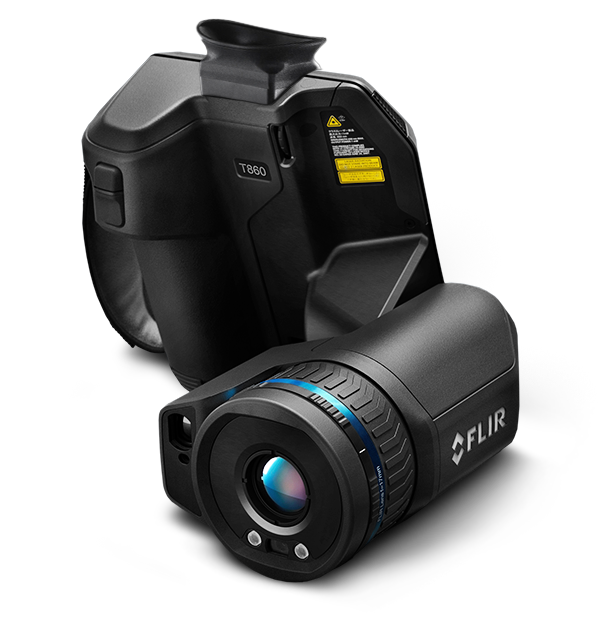

革新的なFLIR T860サーモグラフィカメラは、変電所のコンポーネント、製造設備、あるいは施設の電気機械システムを点検する場合でも、重要設備の点検の合理化と高い視認性を実現した設計になっています。また、カラービューファインダーと180° 回転式のレンズプラットフォームを備えており、明るい中でも見やすく、使いやすい設計です。内蔵された検査ルートシステムは、トラブルシューティングと修理を迅速に行うために、温度データと画像を論理的な順序で記録します。FLIR FlexView™デュアル視野角レンズは、広域から望遠まで視野を瞬時に切り替えることができるため便利です。または6° FOV IRレンズを選択して、遠距離から小さなターゲットの検査を行います。定期的な予防保守にT860を使用することで、コストのかかるダウンタイムやプラントの閉鎖を回避できます。
[3T860赤外線カメラは、FLIR Thermal Studio ProとFLIR Route Creatorにオプション対応しています。
仕様
| Highlighted | |
|---|---|
| IR Resolution | 640 × 480 pixels |
| Thermal Sensitivity_NETD | <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Field of view [FOV] | 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use |
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| イメージングとレンズ | |
|---|---|
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use |
| Digital Zoom | 1-8x continuous |
| f number | 42° lens: 1.1, 24° lens: 1.3, 14° lens: 1.5, 6° lens: 1.35, 80° lens: 1.3, |
| Field of View | 42° × 32° 24° × 18° |
| Field of view [FOV] | 80° × 63° |
| Focal Length | 42°: 10 mm (0.39 in) 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) 6°: 70 mm (2.80 in) 80°: 5 mm (0.19 in) |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Image Frequency | 30 Hz |
| IR Resolution | 640 × 480 pixels |
| Lens | 24°, 14°, 42°, 80°, 6°, DFOV (24°, 14°), DFOV (42°, 24°) |
| Lens Identification | Automatic |
| Minimum Focus Distance | 42° lens - 0.15 m; 24° lens - 0.15 m, optional macro mode; 14° lens - 1.0 m; 6° lens - 5.0m; 80° lens - 0.1m; |
| Minimum Focus Distance with MSX | FLIR T860 + DFOV (14° + 24°): .5 m (1.64 ft) / 1.0 m (3.28 ft) FLIR T860 + Dual FOV (24° + 42°): 42°: 0.65 m (1.98 ft) 24°: 0.5 m (1.64 ft) |
| Non_radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture_in_Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution [IFOV] | 42°: 1.2 mrad/pixel 24°: 0.7 mrad/pixel |
| Spectral Range | 7.5 - 14.0 µm |
| Thermal Sensitivity_NETD | <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR Tools |
| Viewfinder | Yes |
| 測定解析 | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -40°C to 120°C (-40°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F) |
| Spot Meter | 3 ea. in live mode |
| ユーザーインターフェース | |
|---|---|
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| 電源 | |
|---|---|
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera or on separate charger |
| 環境と認定 | |
|---|---|
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| 一般仕様 | |
|---|---|
| Compatible with FLIR software | FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C) |
