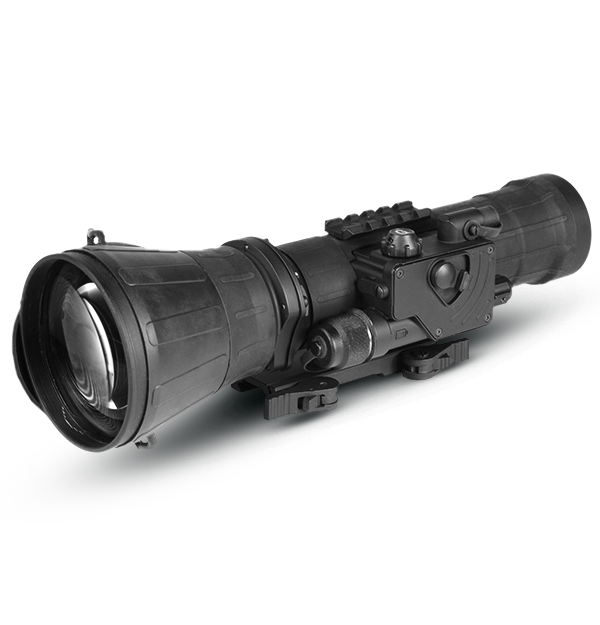

FLIR CO-XLR-LRF
145 mm Night Vision Clip-On System
The FLIR CO-XLR-LRF is the most advanced night vision clip-on in its family. High-performance image intensifier tubes and extra long-range 145 mm optical lens generate superior imagery for engaging targets at extended distances. Installed in front of a standard day optic, the CO-XLR-LRF offers immediate high-quality night vision and precise shot placement—no rezeroing needed. Included XRL IR illuminator maintains excellent image quality in adverse lighting conditions.
Elite Long-Range Performance
145 mm lens and Gen 3 intensifier tubes generate outstanding long-range night vision and quickly detect targets downrange.
Front-mounting allows consistent ballistic reticle use and maintains familiar shot position, release, and follow-through.
Quick-release Picatinny mounting ensures proper rail position and installs in seconds—no tools required.
사양
| 센서 및 광학 기기 | |
|---|---|
| IIT 생성 | Gen 3 Alpha (High Performance) MG |
| 광음극 유형 | GaAs |
| 눈동자 거리 [mm] | - |
| 디옵터 조정 | - |
| 렌즈 시스템 | F/1.8; 145 mm |
| 배율 | 1x (recommended to use with up to 16x day time optics) |
| 섬광_차단 | Yes |
| 시야각 (FOV) | 7° |
| 자동 밝기 제어 | Yes |
| 적외선 조명기 | Detachable Long Range IR |
| 초점 범위 | 25 m to Infinity |
| 출사동 직경 [mm] | 50 mm |
| 해상도 | 64-72 lp/mm |
| 환경 및 승인 | |
|---|---|
| 보관 온도 | -50°C to +70°С (-58°F to +158°F) |
| 작동 온도 | -40°C to +50°С (-40°F to +122°F) |
| 전원 | |
|---|---|
| 배터리 사용 시간 | Up to 60 hours |
| 배터리 잔량 부족 표시등 | Yes (in FOV) |
| 자동 전원 차단 | Yes |
| 전원공급장치 | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 파일 저장 및 통신 | |
|---|---|
| 원격 조정 | Wireless |
| UI-UX | |
|---|---|
| 레티클 색상 | - |
| 수동 게인 (Gain) 제어 | Yes |
| 적외선 표시등 | No |
| 시스템 개요 | |
|---|---|
| 레일 위 스코프 축 높이 | 40 mm |
| 레티클 유형 | - |
| 보증 | 2 Years |
| 편류_엘리베이션 조정 | - |
| 물리적 특성 | |
|---|---|
| 삼각대 마운트 | - |
| 제품 무게 | 1.30 kg (2.86 lbs) |
| 크기(L x W x H) | 304 × 104 × 94 mm (12.0 × 4.0 × 3.7 in) |
| 액세서리 | |
|---|---|
| 옵션형 액세서리 | Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder |
| 포함 액세서리 | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-Device, Battery, Picatinny adapter for AWReC (Advanced Wireless Remote Control, AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue |
