Axx IP69k Housing (T912302)

FLIR A40/A50/A70 모델용 세척 가능/식품 등급 인클로저

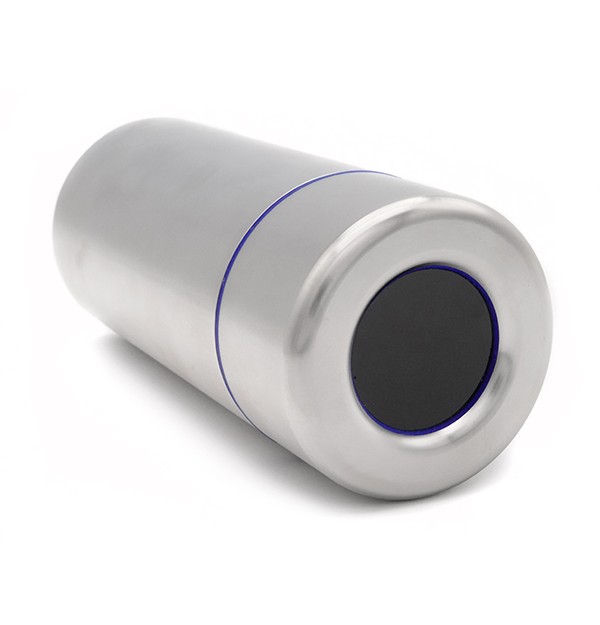

This stainless steel, IP69k-rated protective housing is specifically designed for Flir A40/A50/A70 (Axx) thermal cameras. The housing is designed in accordance with EHEDG standards. The enclosure is made of A316L electropolished to Ra <0.8 µm. Camera accuracy within the protective housing remains within standard specifications due to Flir's proprietary radiometric formulas.

Note: the germanium window blocks the visual camera. The germanium employed is a crystalline material and not certified for use in proximity to food stuff. For use in food processes it is recommended to perform an application specific risk analysis according to local regulations and guidelines.

열화상 기술이 가장 절실한 극한 환경을 위한 설계

동일한 Axx 또는 Axxx 시리즈 카메라를 일반적으로 엄두를 내기 힘든 가혹한 환경 조건에서도 안심하고 설치하여 운용할 수 있습니다.

식음료

고압 및 고온 세척에 내구성이 강한 스테인리스강 — EHEDG 준수 위생 마운트로 설치 작업을 완성합니다.

IP69K   ·   EHEDG 설계    ·   316L

금속 및 중공업

적층형 냉각 기능을 갖춘 IP67 하우징을 통해 가열로, 가마, 고온 공정 근처에서도 카메라가 계속 안정적으로 작동할 수 있습니다.

상태 모니터링

밀폐형 보호 기능과 선실드를 결합하여 계절에 구애받지 않고 상시 실외 모니터링 설비를 안정적으로 운용할 수 있습니다.

조기 화재 감지

먼지가 많은 폐기물, 재활용 및 보관 시설에서도 카메라의 기능 손상 없이 지속적으로 감지할 수 있습니다.

카메라를 보호하는 것은 곧 프로그램을 보호하는 것입니다. 즉, 가동 시간, 데이터 연속성, 카메라 구매 예산을 안전하게 보호하는 것입니다.

사양

이미징 및 광학
색상 실버
호환 가능한 카메라 FLIR A50/A70
환경 및 인증
마운트 장착 측면 1개, m6 3개, cc 25mm, 깊이 5mm
인캡슐레이션 IP69K
일반
무게 3.45kg
자재 스테인리스강 A316L
크기 [L × D] 188.6 × 80.0mm

액세서리

리소스 및 지원

Datasheet

FLIR Axx IP67/IP69k 하우징 데이터시트

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
