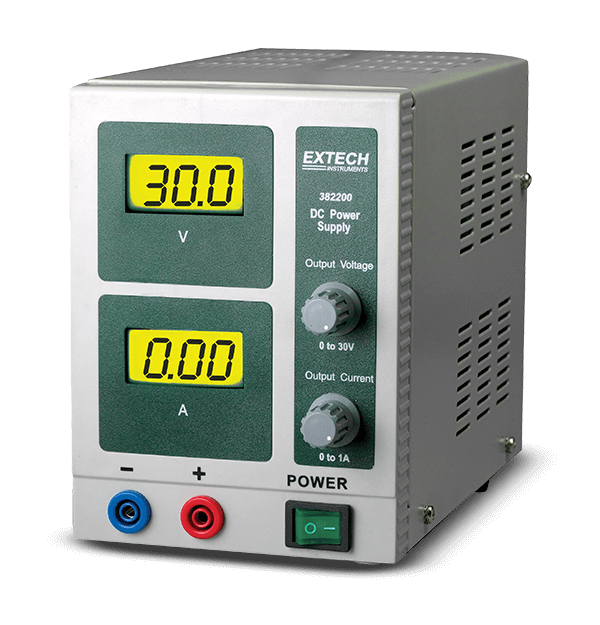

Extech 382200
Fuente de alimentación de CC de salida única de 30 V/1 A
Fuente de alimentación de CC digital de voltaje constante/corriente con LCD doble
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Line Current Regulation | <0,2 % + 3 mA |
| Line Voltage Regulation | <0,01 % + 3 mV |
| Load Current Regulation | <0,2 % + 3 mA |
| Load Voltage Regulation | <0,01 % + 2 mV |
| Output Current | 0 - 1,00 A CC |
| Output Current Basic Accuracy | ±2 % de lectura |
| Output Voltage | 30 VCC |
| Output Voltage Basic Accuracy | ±1,5 % de lectura |
| Ripple and Noise | <0,5 mV/<3 mA |
| Detalles adicionales | |
|---|---|
| Dimensions | 240 × 108 × 154 mm (9,4 × 4,25 × 6") |
| Power | 115 V/230 V; 50/60 Hz |
| Warranty | 2 años |
| Weight | 2 kg (4,4 lb) |
Resources & Support
User Manual
Manual del usuário de Extech 382200 382202
Certification
Extech 382200 Declaration of Conformity
User Manual
Extech 382200 382202 User Manual
Datasheet
Extech 382200-382202 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
