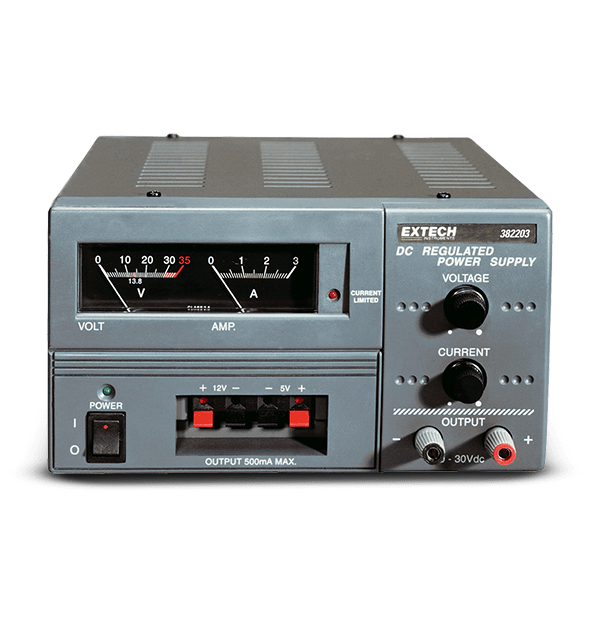

Extech 382203
Analog Triple Output DC Power Supply
The Extech 382203 is an Analog Triple Output DC Power Supply with overload and short circuit protection. Featuring constant voltage and current supply, the 382203 has a current limiting, front panel, LED indicator and binding post terminals for variable supply. Complete with power cord.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Corriente de salida | 0 to 3A DC |
| Ondulación y ruido | <5mV |
| Regulación de tensión de carga | <0.05%+10mV |
| Regulación de tensión de línea | <0.05%+10mV |
| Salidas fijas | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| Voltaje de salida | 0 to 30V DC |
| Detalles adicionales | |
|---|---|
| Alimentación | 110/220VAC 50/60Hz |
| Certificaciones | CE |
| Dimensiones | 6 × 5.6 × 9.5" (152 ×142 × 242) |
| Garantía | 2 years |
| Peso | 11lbs. (5kg) |
Resources & Support
User Manual
Manual del usuário de Extech 382203 382213
Datasheet
Extech 382203-382213 Datasheet
User Manual
Extech 382203 382213 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
