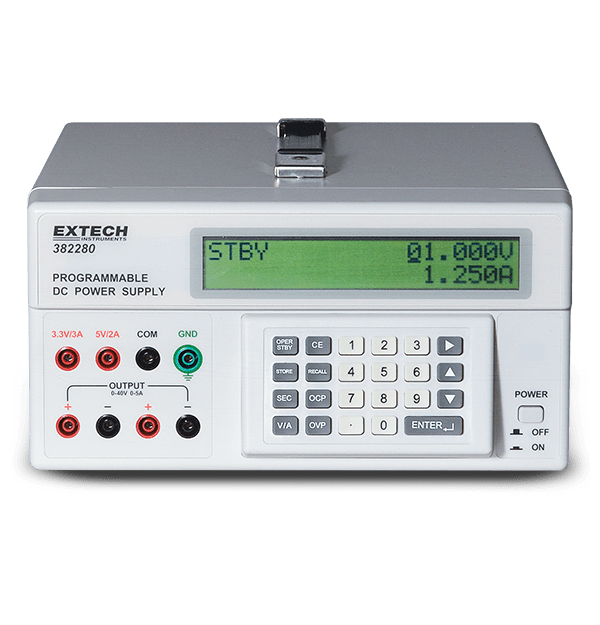

Extech 382280
Precision with Programmable 200 Watt Output DC Power Supply
The Extech 382280 is a Programmable 200 Watt DC Power Supply that has an adjustable 40 V/5 A output, plus two fixed outputs (5 V/2 A and 3.3 V/3 A) and memory for 200 setups. It features high stability with low ripple and noise, 0 to 60 second programmable overload delay timer, selectable constant current/constant voltage, and a bi-directional PC interface that allows setup and read back using virtually any PC communications program.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Corriente de salida | 0 to 5A |
| Ondulación y ruido | Voltage (mVrms): 3mV Current (mArms): 3mA |
| Precisión básica de corriente de salida | 0.2% ± 9mA |
| Precisión básica de tensión de salida | 0.05% ± 9mV |
| Resolución máx. de corriente de salida | 1mA |
| Resolución máx. de tensión de salida | 1mV |
| Salidas fijas | 5V/2A, 3.3V/3A |
| Voltaje de salida | 0 to 40V |
| Detalles adicionales | |
|---|---|
| Alimentación | 110 or 220VAC, 50/60Hz |
| Certificaciones | CE |
| Dimensiones | 12.2 × 9.9 × 5.3" (310 × 250 × 135mm) |
| Garantía | 2 years |
| Peso | 8.4lbs (3.8kg) |
Resources & Support
User Manual
Manual del usuário de Extech 382280
User Manual
Extech 382280 User Manual GB
Datasheet
Extech 382280 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
