Discontinued

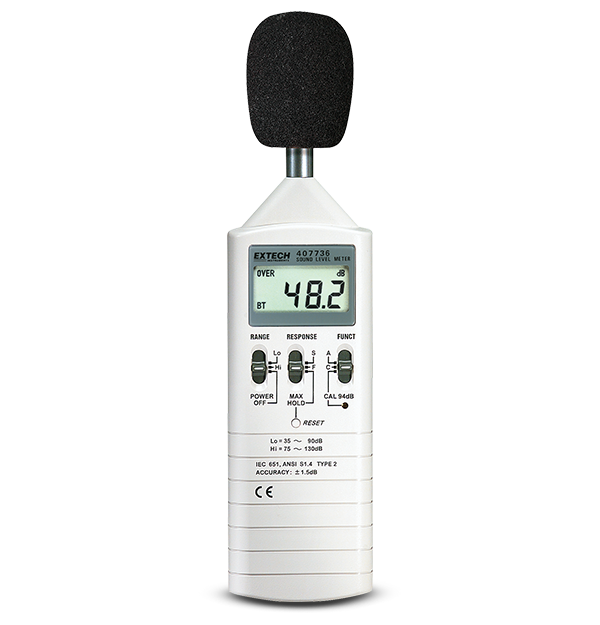

Extech 407736
Dual Range Sound Level Meter
The Extech 407736 Dual Range Sound Level Meter measures from 35 dB to 130 dB ±1.5 dB, and it meets both ANSI and IEC Type 2 standards. It features a fast and slow response time, A/C weighting, max hold function, and an analog AC/DC output for connection to an analyzer or recorder. Comes complete with microphone wind screen, 9 V battery, and carrying case.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Micrófono | Condenser, 0.5” (12.7mm) |
| Ponderación | A,C |
| Precisión básica del rango de sonido (dB) | ±1.5dB (Type 2) |
| Rango de sonido (dB) | Low: 35 to 90dB; High: 75 to 130dB |
| Resolución máxima del rango de sonido (dB) | 0.1dB |
| Salida analógica | AC/DC |
| Tiempo de respuesta | Fast/Slow |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE |
| Dimensiones | 9.5 × 2.7 × 1" (241 × 69 × 25mm) |
| Garantía | 2 years |
| Peso | 7.6oz (215g) |
Recursos y asistencia
User Manual
Manual del usuário de Extech 407736
Certification
Extech 407736 Declaration of Conformity
Datasheet
Extech 407735 407736 Datasheet
User Manual
Extech 407736 User Manual GB
