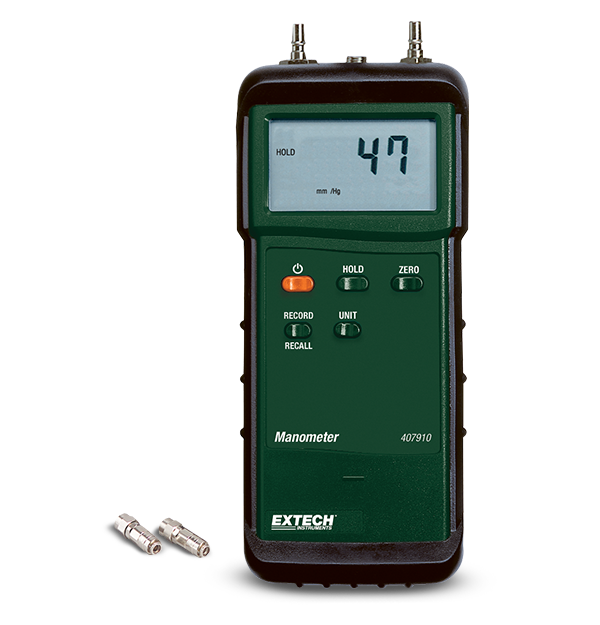

Extech 407910
Manómetro de alta resistencia de presión diferencial (29 psi)
El 407910 es un manómetro de presión diferencial que mide hasta 29 psi y muestra los resultados en 8 unidades de medida. Las características incluyen: función cero para mediciones de compensación, mín./máx., retención de datos y apagado automático. Incluye 2 accesorios de instalación rápida, batería de 9 V, funda protectora con pie y estuche.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Pressure [atmosphere] | ±1,974 atm |
| Pressure [atmosphere] Basic Accuracy | ±1 % a escala completa |
| Pressure [atmosphere] Max Resolution | 0,001 atm |
| Pressure [inH2O] | ±802,0 inH₂O |
| Pressure [inH2O] Basic Accuracy | ±1 % a escala completa |
| Pressure [inH2O] Max Resolution | 0,5 inH₂O |
| Pressure [inHg] | ±59,05 inHg |
| Pressure [inHg] Basic Accuracy | ±1 % a escala completa |
| Pressure [inHg] Max Resolution | 0,05 inHg |
| Pressure [kgcm2] | ±2,040 kg/cm² |
| Pressure [kgcm2] Basic Accuracy | ±1 % a escala completa |
| Pressure [kgcm2] Max Resolution | 0,001 kg/cm² |
| Pressure [mbar] | ±2000 mbares |
| Pressure [mbar] Basic Accuracy | ±2 % escala completa |
| Pressure [mbar] Max Resolution | 1 mbar |
| Pressure [mH2O] | ±20,40 mH₂O |
| Pressure [mH2O] Basic Accuracy | ±1 % a escala completa |
| Pressure [mH2O] Max Resolution | 0,01 mH₂O |
| Pressure [mmHg] | ±1500 mmHg |
| Pressure [mmHg] Basic Accuracy | ±1 % a escala completa |
| Pressure [mmHg] Max Resolution | 1 mmHg |
| Pressure [psi] | ±29 psi |
| Pressure [psi] Basic Accuracy | ±1 % a escala completa |
| Pressure [psi] Max Resolution | 0,02 psi |
| Detalles adicionales | |
|---|---|
| Certifications | 407910-NIST_S: CE, NIST 407910_S: CE |
| Dimensions | 178 × 74 × 33 mm (7 × 2,9 × 1,3") |
| Power | 1 batería de 9 Vincl |
| Warranty | 3 años |
| Weight | 12 oz (350 g) |
Resources & Support
Nota: Debe haber iniciado sesión para descargar software o firmware. Inicie sesión o cree una cuenta.
Software Download
Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable
User Manual
Extech 407910 User Manual
Certification
Extech 407910 Declaration of Conformity
Datasheet
Extech 407910 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
